Dirt Devil Spot Scrubber Instructions

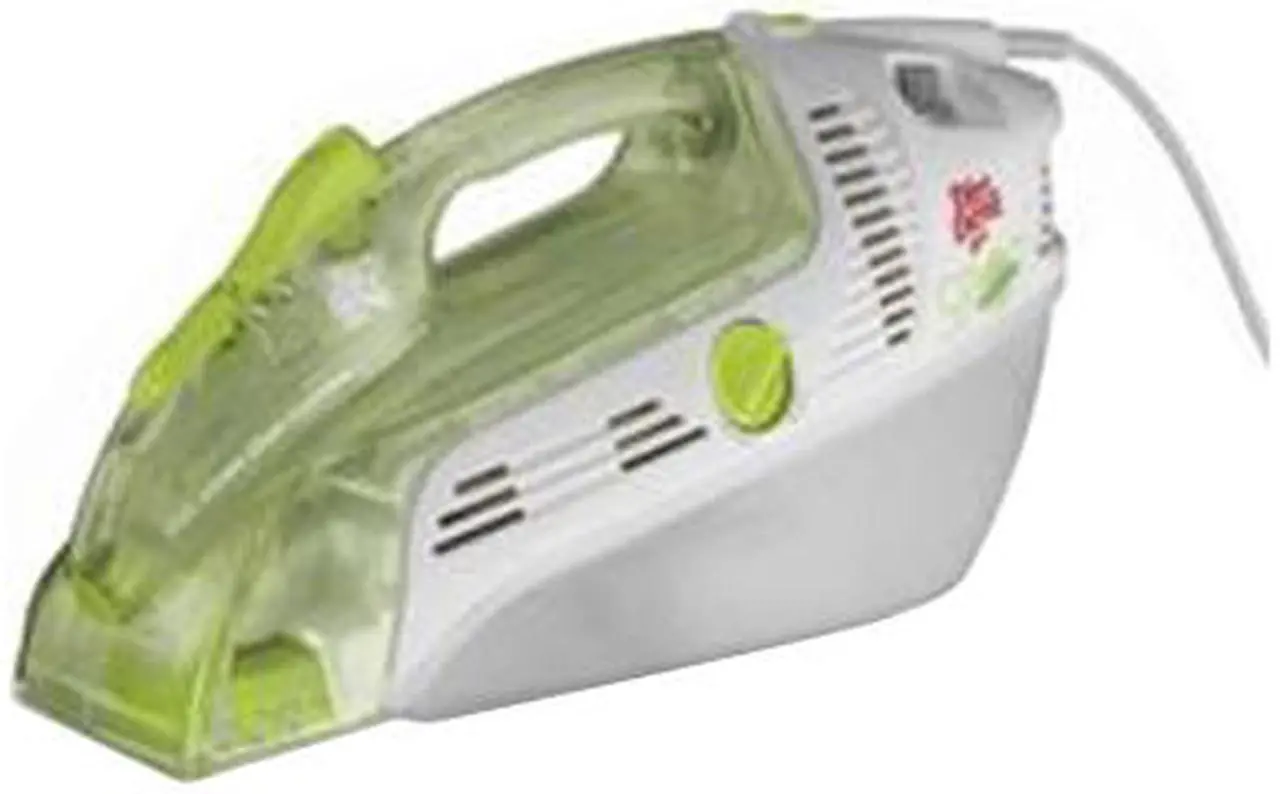

The Dirt Devil Spot Scrubber is a portable cleaning device designed to remove stains and spots from carpets, upholstery, and other surfaces. This guide provides step-by-step instructions on how to properly operate and maintain your Spot Scrubber for optimal cleaning performance.

Preparation

Before initiating the cleaning process, prepare both the device and the affected area.

Filling the Clean Water Tank

Locate the clean water tank. This is typically a transparent container situated on the device. Remove the tank from the main body.

Unscrew or open the fill cap of the clean water tank.

Combine water and cleaning solution in the tank. Use the ratio recommended by the cleaning solution manufacturer. Overfilling can cause leaks.

Securely close the fill cap and reattach the clean water tank to the Spot Scrubber.

Preparing the Dirty Water Tank

Ensure the dirty water tank is empty. This tank collects the dirty water extracted during the cleaning process. Remove the dirty water tank from the main body of the device.

Inspect the tank for any blockages or debris. Clean the tank if necessary.

Reattach the empty dirty water tank to the Spot Scrubber.

Preparing the Area to be Cleaned

Remove any loose debris from the area to be treated. Vacuum the surface to remove dirt, pet hair, and other particles. This prevents the device from pushing debris deeper into the fibers.

Pre-treat stubborn stains with a stain remover solution. Follow the stain remover manufacturer's instructions. Test the stain remover in an inconspicuous area first to ensure it does not damage or discolor the material.

Operation

With the device and the area prepared, proceed with the stain removal process.

Powering On and Initial Spray

Plug the Spot Scrubber into a grounded electrical outlet.

Turn on the device using the power switch. This is usually a button or switch located on the handle or body of the device.

Position the cleaning brush attachment over the stain. Press the spray trigger to release the cleaning solution onto the stain. Apply enough solution to saturate the stain, but avoid oversaturation.

Scrubbing and Suction

Engage the scrubbing brush by gently moving the Spot Scrubber back and forth over the stain. Apply light pressure to agitate the stain and loosen it from the fibers.

Release the spray trigger while continuing to move the device over the stain. This activates the suction function, which extracts the dirty water and cleaning solution from the surface. Overlap each pass to ensure complete coverage.

Continue scrubbing and suctioning until the stain is removed and the surface is relatively dry.

Emptying the Dirty Water Tank

Monitor the dirty water tank level during operation. When the tank is full or the cleaning session is complete, turn off the Spot Scrubber.

Remove the dirty water tank from the device.

Pour the dirty water into a sink or toilet. Avoid pouring it onto grass or plants, as the cleaning solution may be harmful.

Rinse the dirty water tank with clean water to remove any remaining residue. Allow the tank to air dry completely before reattaching it to the Spot Scrubber.

Rinsing the Cleaned Area

After stain removal, rinse the cleaned area with clean water to remove any remaining cleaning solution residue. Fill the clean water tank with clean water only.

Repeat the spraying and suctioning process, using only clean water. This helps prevent resoiling by removing sticky residue that can attract dirt.

Drying the Area

Allow the cleaned area to air dry completely. Open windows or use a fan to speed up the drying process. Avoid walking on the cleaned carpet or sitting on the cleaned upholstery until it is completely dry.

Maintenance

Proper maintenance extends the life of your Spot Scrubber and ensures optimal performance.

Cleaning the Brush Attachment

After each use, remove the brush attachment from the Spot Scrubber.

Rinse the brush attachment with clean water to remove any debris or residue. Use a brush to remove stubborn particles.

Allow the brush attachment to air dry completely before storing it.

Cleaning the Nozzle

Periodically clean the nozzle of the Spot Scrubber to prevent clogs. Remove the nozzle from the device.

Use a small brush or toothpick to remove any debris from the nozzle opening.

Rinse the nozzle with clean water and allow it to air dry completely before reattaching it to the device.

Cleaning the Tanks

Regularly clean both the clean water tank and the dirty water tank. After each use, rinse both tanks with clean water.

Periodically, wash the tanks with warm soapy water. Rinse thoroughly to remove all soap residue.

Allow the tanks to air dry completely before reattaching them to the Spot Scrubber.

Storage

Store the Spot Scrubber in a cool, dry place. Avoid storing it in direct sunlight or extreme temperatures.

Ensure that all parts are dry before storing the device. Store the power cord neatly to prevent damage.

Troubleshooting

If you encounter any issues with your Spot Scrubber, consult the following troubleshooting tips:

Problem: Device does not turn on.

Solution: Check the power cord and outlet. Ensure the power switch is in the "on" position.

Problem: No spray.

Solution: Ensure the clean water tank is full. Check for clogs in the nozzle. Prime the pump by pressing the spray trigger repeatedly.

Problem: Weak suction.

Solution: Ensure the dirty water tank is empty. Check for blockages in the hose or brush attachment. Ensure the brush attachment is properly attached.

If these troubleshooting steps do not resolve the issue, consult the user manual or contact customer support.

Safety Precautions

Adhere to the following safety precautions when using the Dirt Devil Spot Scrubber:

• Read all instructions before use.
• Use only the cleaning solutions recommended by the manufacturer.
• Do not immerse the device in water or other liquids.
• Do not use the device on delicate or water-sensitive materials.
• Keep the device away from children and pets.
• Unplug the device before cleaning or performing maintenance.
• Do not operate the device if it is damaged or malfunctioning.

By following these instructions and safety precautions, you can effectively use your Dirt Devil Spot Scrubber to remove stains and keep your carpets and upholstery clean.
