Whirlpool Thin Twin Dryer No Heat
A Whirlpool Thin Twin is a stacked washer and dryer unit, often found in apartments or homes where space is limited. While generally reliable, a common issue that arises with the Thin Twin dryer is the failure to produce heat. This can be a frustrating problem, resulting in damp clothes and extended drying times. Understanding the potential causes and troubleshooting steps can save time and money on repair bills.
Understanding the Thin Twin Dryer Heating System
The dryer component of a Whirlpool Thin Twin utilizes an electric heating system to generate the necessary heat for drying clothes. This system primarily consists of several key components:
- Heating Element: This is the primary heat source. It's a coil of wire that heats up when electricity passes through it.
- Thermal Fuse: A safety device designed to cut off power to the heating element if the dryer overheats. It's a one-time use component and must be replaced if blown.
- Thermostat(s): These regulate the temperature inside the dryer drum. They cycle the heating element on and off to maintain the desired heat level. Multiple thermostats may be present, including a cycling thermostat and a high-limit thermostat.
- Timer/Electronic Control Board: This controls the timing and duration of the drying cycle, including the activation of the heating element.
- Motor: Powers the drum rotation and the blower fan, which circulates air through the dryer.
Common Causes of No Heat in a Whirlpool Thin Twin Dryer
Several factors can contribute to a Whirlpool Thin Twin dryer not producing heat. Here's a breakdown of the most common culprits:
Must Read
Blown Thermal Fuse
The thermal fuse is a critical safety component. If the dryer overheats, the thermal fuse will blow, preventing the heating element from receiving power. Overheating can be caused by a blocked vent, a faulty thermostat, or a malfunctioning motor.

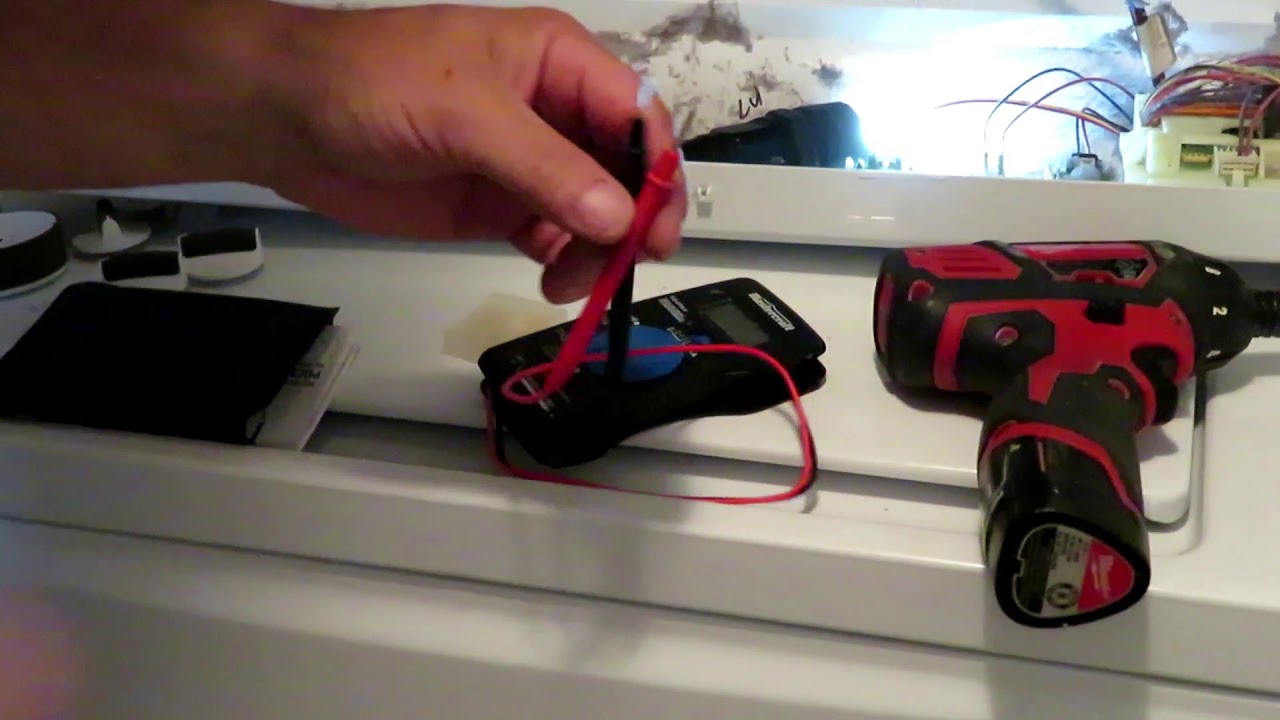

Testing the Thermal Fuse: Use a multimeter set to the continuity setting. Place the probes on each terminal of the fuse. If the multimeter shows no continuity (an open circuit), the fuse is blown and needs to be replaced.
Faulty Heating Element
The heating element is responsible for generating the heat. Over time, it can burn out or develop breaks, preventing it from heating up properly.
Testing the Heating Element: Disconnect the power to the dryer. Locate the heating element and disconnect the wires leading to it. Use a multimeter set to the ohms setting. Place the probes on each terminal of the heating element. A typical heating element should have a resistance reading between 10 and 50 ohms. If the reading is significantly higher or the multimeter shows no continuity (an open circuit), the heating element is likely faulty. Also, visually inspect the element for any breaks or damage.
Defective Thermostat
Thermostats regulate the temperature inside the dryer drum. If a thermostat fails, it may prevent the heating element from turning on. There are often multiple thermostats, including a cycling thermostat and a high-limit thermostat, each with different functions. The high-limit thermostat is specifically designed to shut off the heating element if the dryer overheats, similar to the thermal fuse, but it is often resettable.
Testing Thermostats: Like the thermal fuse, test thermostats for continuity using a multimeter. However, some thermostats are normally open and close only when heated, so you may need to apply heat (carefully!) to the thermostat to test it properly. Check the dryer's wiring diagram to understand the specific function and testing procedure for each thermostat.
Blocked Vent or Ductwork
A blocked vent is a very common cause of dryer problems, including no heat. When the vent is clogged with lint, the dryer cannot exhaust hot, moist air properly. This causes the dryer to overheat, which can trigger the thermal fuse to blow or damage other components.
Checking the Vent: Disconnect the vent from the dryer and check for any obstructions. Clean the vent regularly, ideally after each load, to prevent lint buildup. Inspect the entire vent system, including the outdoor vent hood, for any blockages.
Faulty Timer or Electronic Control Board
The timer (in older models) or the electronic control board (in newer models) controls the timing and operation of the dryer, including the heating element. A malfunctioning timer or control board may not send the signal to activate the heating element.
Testing the Timer/Control Board: Testing the timer or control board can be complex and often requires specialized knowledge and equipment. It is generally recommended to consult a qualified appliance repair technician for this type of issue.
Motor Issues
While less common, a faulty motor can indirectly affect the heating system. The motor powers the blower fan, which circulates air through the dryer. If the motor is not running properly, the airflow may be insufficient, leading to overheating and potentially triggering the thermal fuse.
Checking the Motor: Listen for unusual noises coming from the motor. If the motor is making a loud humming sound or is not running at all, it may be faulty. Consult a qualified appliance repair technician for motor repairs or replacement.
Troubleshooting Steps
Here's a step-by-step approach to troubleshooting a Whirlpool Thin Twin dryer with no heat:
- Check the Power Supply: Ensure the dryer is properly plugged in and the circuit breaker has not tripped.
- Clean the Lint Filter: A clogged lint filter restricts airflow and can cause overheating.
- Inspect the Vent: Disconnect the vent and check for blockages. Clean the vent thoroughly.
- Test the Thermal Fuse: Use a multimeter to check for continuity. Replace if blown.
- Test the Heating Element: Use a multimeter to check the resistance. Replace if faulty.
- Test the Thermostats: Use a multimeter to check for continuity. Replace if faulty.
- Inspect the Motor: Listen for unusual noises. Consult a technician if necessary.
- Examine the Timer/Control Board: This is best left to a qualified technician.
Safety Precautions
When working on electrical appliances, it is crucial to prioritize safety. Always disconnect the power to the dryer before performing any repairs or inspections. Wear appropriate safety gear, such as gloves and eye protection. If you are not comfortable working with electrical components, consult a qualified appliance repair technician.
When to Call a Professional
While some dryer repairs can be performed by homeowners, certain issues require the expertise of a qualified appliance repair technician. It's best to call a professional if:
- You are uncomfortable working with electrical components.
- You are unable to diagnose the problem.
- The issue involves the timer or electronic control board.
- The motor is faulty.
Conclusion
A Whirlpool Thin Twin dryer that fails to produce heat can be a major inconvenience. By understanding the components of the heating system and common causes of this problem, you can effectively troubleshoot the issue and potentially resolve it yourself. Regular maintenance, such as cleaning the lint filter and vent, can prevent many of these problems from occurring in the first place. Addressing a "no heat" issue promptly not only restores the dryer's functionality but also prevents potential safety hazards and costly repairs in the long run. Properly functioning appliances contribute significantly to household efficiency and overall safety.
