What Causes Voltage On Ground Wire

Stray voltage on a ground wire is a common issue in electrical systems that can lead to safety hazards, equipment malfunctions, and nuisance tripping of circuit breakers. Understanding the causes of this phenomenon allows you to proactively address potential problems, ensuring the safety and efficiency of your electrical installations at home or in the workplace.

Identifying Potential Causes

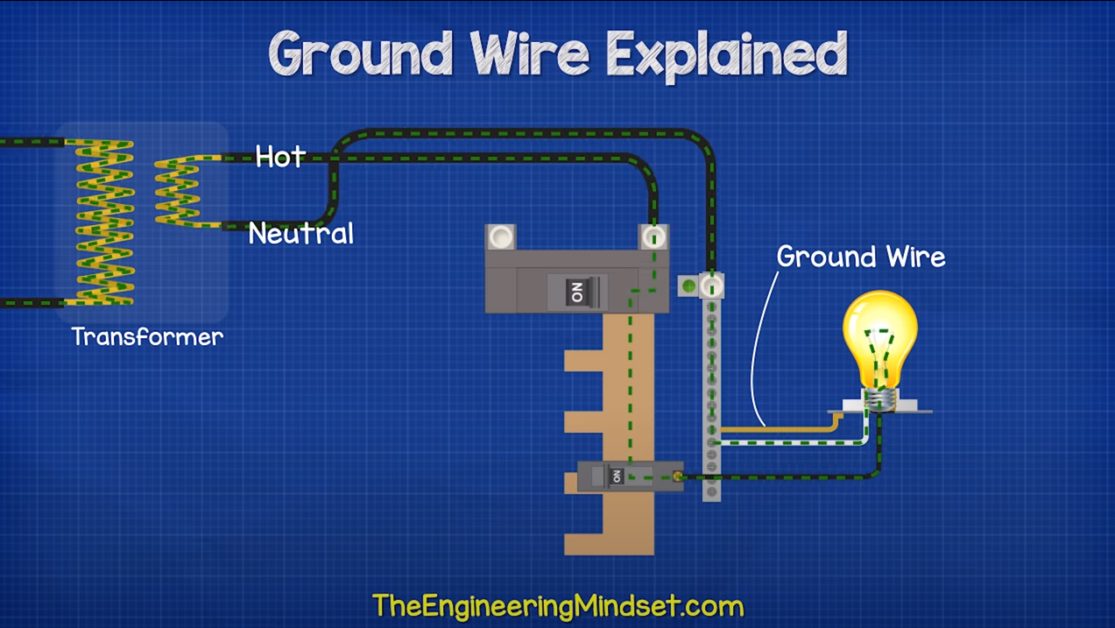

Several factors can contribute to voltage appearing on a ground wire. The key is understanding that a ground wire's primary function is to provide a low-impedance path for fault current to return to the source, tripping the breaker quickly and preventing electric shock. Ideally, the ground wire should be at or very near zero volts. Any measurable voltage indicates a problem. Here are some typical causes:

Improper Wiring

This is a frequent culprit. Errors in wiring can directly introduce voltage onto the ground. Common mistakes include:

• Neutral-Ground Bond at Multiple Locations: The neutral and ground wires should only be bonded at the main service panel. If they are bonded elsewhere (e.g., in a subpanel), current can flow through the ground wire, causing voltage.
• Reversed Polarity: Accidentally swapping the hot and neutral wires at an outlet or fixture can create a path for current to flow through the ground.
• Loose Connections: Loose connections in the neutral wire can force current to find alternative paths, potentially including the ground wire.

Shared Neutrals

Sharing a neutral wire between multiple circuits (especially if not designed to do so) can overload the neutral, leading to voltage imbalances and current flow through the ground wire. This is more common in older wiring systems or in situations where circuits have been modified without proper consideration.

Faulty Appliances and Equipment

Appliances and equipment with damaged insulation or internal faults can leak current to their metal chassis. If the chassis is properly grounded, this leakage current should flow through the ground wire back to the source. However, if the ground connection is poor, or if the leakage is significant, a measurable voltage can appear on the ground wire, and the appliance itself can become a shock hazard.

Voltage Drop in the Neutral Conductor

All conductors have some resistance. When current flows through the neutral conductor, a voltage drop occurs. If the neutral conductor is undersized, or if the load on the circuit is excessive, this voltage drop can be significant. This voltage drop can then be seen as voltage on the ground wire if there are any connection issues or unintentional grounding points further downstream.

External Interference

In some industrial environments, external electromagnetic fields can induce currents in the ground wires, causing a small voltage. This is less common in residential settings, but nearby high-voltage power lines or powerful electrical equipment can sometimes contribute to this issue.

Ground Loops

Ground loops occur when there are multiple paths to ground, creating a loop in the grounding system. This can happen when equipment is connected to different outlets that are grounded at different points in the electrical system. The potential difference between these grounding points can drive current through the ground loop, resulting in voltage on the ground wires. This is most problematic in sensitive electronic equipment such as audio/video setups and computer networks.

Practical Applications and Troubleshooting

Understanding these causes allows you to take proactive steps to prevent and address voltage on ground wires.

Safety First

Always disconnect power before working on any electrical circuit. Use a non-contact voltage tester to verify that the circuit is de-energized. If you are not comfortable working with electricity, consult a qualified electrician.

Visual Inspection

Begin with a thorough visual inspection of all wiring, outlets, and equipment. Look for:

• Loose or corroded connections
• Damaged insulation
• Incorrect wiring
• Signs of overheating (e.g., discolored wires or melted plastic)

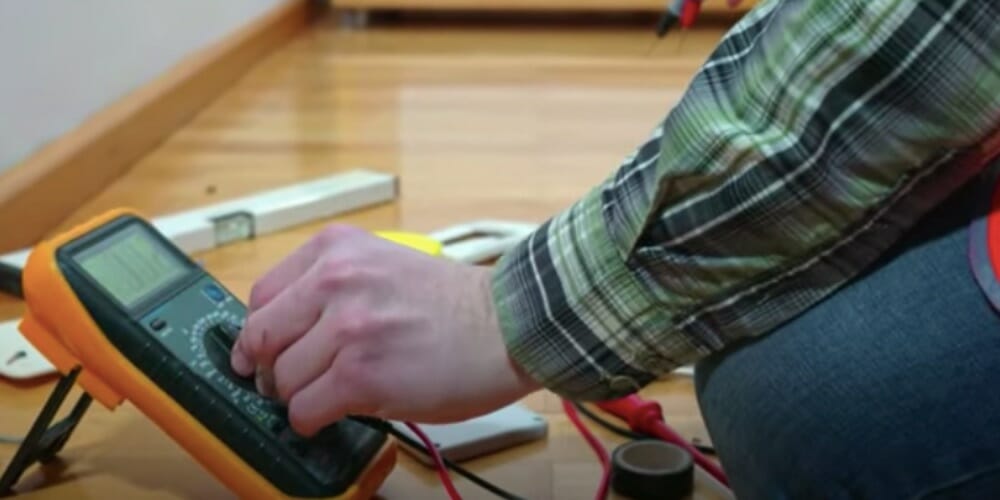

Testing with a Multimeter

Use a multimeter to measure the voltage between the ground wire and:

• The neutral wire
• The hot wire

A significant voltage between the ground and neutral (more than a few volts) indicates a problem. The voltage between the ground and hot wire should be close to the nominal voltage of the circuit (e.g., 120V in North America). A lower voltage indicates a potential ground fault.

Isolate the Problem

If you find voltage on the ground wire, try to isolate the source of the problem by:

• Turning off circuit breakers one at a time to see if the voltage disappears.
• Unplugging appliances and equipment one at a time to see if the voltage disappears.

Once you have identified the circuit or appliance that is causing the problem, you can focus your troubleshooting efforts.

Correcting Wiring Errors

If you find incorrect wiring, carefully correct the wiring according to the applicable electrical codes. Ensure that the neutral and ground wires are only bonded at the main service panel. If you are unsure how to correct the wiring, consult a qualified electrician.

Improving Grounding

Ensure that all equipment and appliances are properly grounded. Check the ground connections at outlets, panels, and equipment. Tighten any loose connections and replace any corroded connections. Consider adding supplemental grounding electrodes if necessary.

Managing Shared Neutrals

If you have shared neutrals, ensure that they are properly sized to handle the combined load of all circuits sharing the neutral. Consider separating the circuits onto individual neutrals if the load is excessive.

Dealing with Faulty Appliances

If you suspect that an appliance is leaking current, have it inspected and repaired by a qualified appliance repair technician. Do not use the appliance until it has been repaired.

Addressing Ground Loops

To minimize ground loops, connect all equipment to the same outlet strip or power conditioner. Use shielded cables to reduce the effects of electromagnetic interference. Consider using isolation transformers to break the ground loops.

Checklist for Troubleshooting Voltage on Ground Wire

• Safety First: Disconnect power and verify with a non-contact tester.
• Visual Inspection: Check for loose connections, damaged insulation, and incorrect wiring.
• Multimeter Testing: Measure voltage between ground and neutral, and ground and hot.
• Isolation: Turn off breakers and unplug appliances to isolate the source.
• Wiring Corrections: Ensure proper neutral-ground bonding and correct any wiring errors.
• Grounding Improvement: Tighten connections and consider supplemental grounding.
• Shared Neutral Management: Verify proper sizing and consider separating circuits.
• Appliance Inspection: Have faulty appliances repaired.
• Ground Loop Mitigation: Use same outlet strip, shielded cables, or isolation transformers.

By understanding the causes of voltage on ground wires and following these troubleshooting steps, you can improve the safety and reliability of your electrical systems.
