Surface Area Of A Solid Of Revolution

Understanding Surface Area of a Solid of Revolution

The surface area of a solid of revolution is a fundamental concept in calculus, particularly in integral calculus. It allows us to calculate the area of a surface generated by rotating a curve around an axis. This concept has broad applications in various fields, including engineering, physics, and computer graphics.

Defining the Solid of Revolution

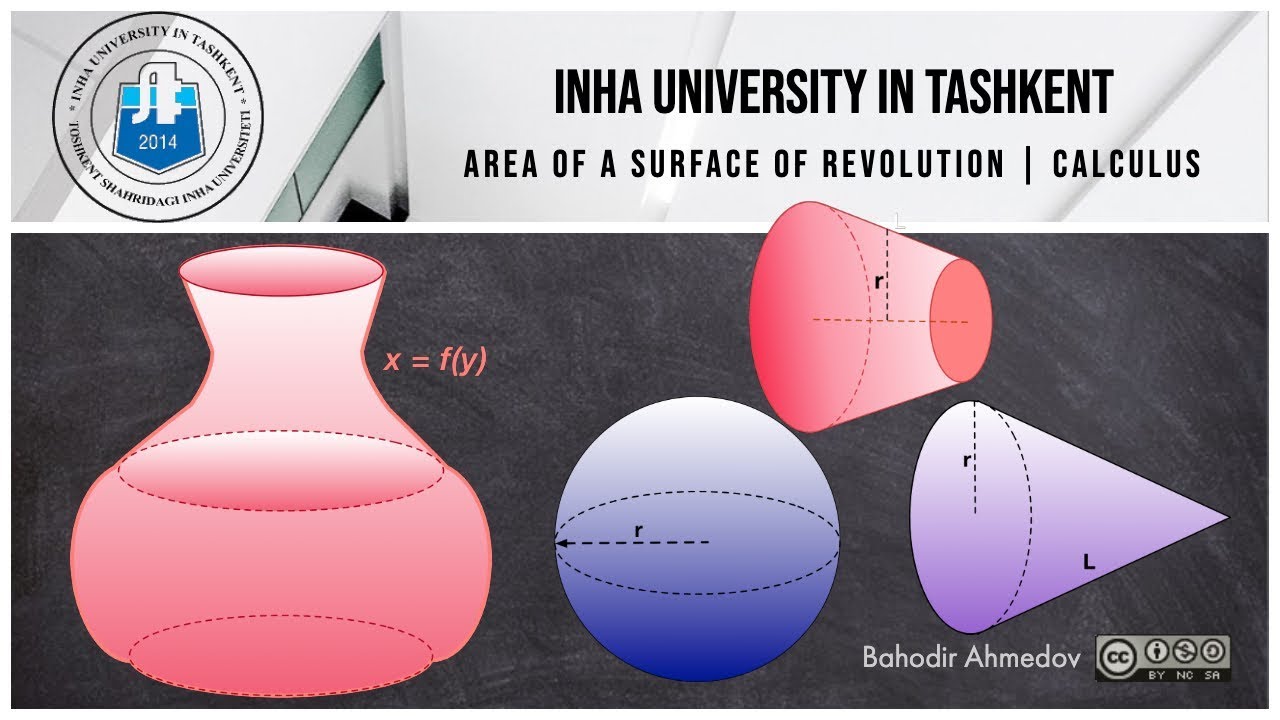

A solid of revolution is a three-dimensional shape generated by rotating a two-dimensional curve around an axis of rotation. The curve can be defined by a function, and the axis of rotation is typically the x-axis or the y-axis, although it can be any straight line.

When the curve rotates, each point on the curve traces a circle. The collection of all these circles forms the surface of the solid of revolution. The challenge is to determine the total area of this surface.

The Formula for Surface Area

The formula for calculating the surface area of a solid of revolution depends on the axis of rotation and the function defining the curve. We'll consider two primary cases: rotation around the x-axis and rotation around the y-axis.

Rotation Around the x-axis

If the curve is defined by the function y = f(x) on the interval [a, b], and we rotate this curve around the x-axis, the surface area (S) is given by the following integral:

S = 2π ∫_a^b f(x) √(1 + [f'(x)]²) dx

Here, f'(x) represents the derivative of f(x) with respect to x. The term √(1 + [f'(x)]²) is the arc length element, which accounts for the infinitesimal length of the curve being rotated.

This formula stems from approximating the surface with a series of frustums (truncated cones). The surface area of each frustum is approximately 2πyΔs, where y is the radius (which is equal to the function value f(x)) and Δs is the arc length of the small segment of the curve. Integrating these infinitesimal areas over the interval [a, b] gives the total surface area.

Rotation Around the y-axis

If the curve is defined by the function x = g(y) on the interval [c, d], and we rotate this curve around the y-axis, the surface area (S) is given by the following integral:

S = 2π ∫_c^d g(y) √(1 + [g'(y)]²) dy

In this case, g'(y) represents the derivative of g(y) with respect to y. Similar to the x-axis rotation, √(1 + [g'(y)]²) is the arc length element, and g(y) represents the radius of the circle traced by each point on the curve as it rotates around the y-axis.

The logic behind this formula is analogous to the x-axis rotation, using frustums to approximate the surface and integrating their areas.

Practical Considerations and Examples

While the formulas for surface area are straightforward, applying them in practice can be challenging. The complexity often arises from the integral, which may be difficult or impossible to solve analytically. In such cases, numerical integration techniques are employed to approximate the surface area.

Example: Surface Area of a Sphere

Consider the function y = √(r² - x²), which represents the upper half of a circle with radius r centered at the origin. To find the surface area of a sphere formed by rotating this curve around the x-axis from -r to r, we can use the x-axis rotation formula.

First, find the derivative: y' = -x / √(r² - x²).

Then, substitute into the surface area formula:

S = 2π ∫_-r^r √(r² - x²) √(1 + [-x / √(r² - x²)]²) dx

Simplifying the expression inside the integral, we get:

S = 2π ∫_-r^r √(r² - x²) √(r² / (r² - x²)) dx

S = 2π ∫_-r^r r dx

Integrating r with respect to x from -r to r gives:

S = 2πr [x]_-r^r = 2πr (r - (-r)) = 4πr²

Thus, the surface area of a sphere with radius r is 4πr², which is a well-known result.

Example: A More Complex Case

Consider the curve y = x² rotated around the y-axis from y = 0 to y = 1. In this case, we need to express x as a function of y: x = √y.

The derivative is x' = 1 / (2√y).

The surface area is given by:

S = 2π ∫₀¹ √y √(1 + [1 / (2√y)]²) dy

S = 2π ∫₀¹ √y √(1 + 1 / (4y)) dy

S = 2π ∫₀¹ √(y + 1/4) dy

This integral can be solved using a u-substitution (u = y + 1/4), resulting in:

S = (π / 6) (5√5 - 1)

This demonstrates how the choice of function and axis of rotation can lead to integrals of varying complexity.

Limitations and Considerations

The surface area formulas assume that the function f(x) or g(y) is continuously differentiable on the interval of integration. If the function has discontinuities in its derivative, the formulas may not be directly applicable and may require modification or segmentation of the integral.

Furthermore, the formulas calculate the surface area excluding any circular "caps" that may be formed at the ends of the solid of revolution. If these caps are part of the surface being considered, their areas must be calculated separately and added to the result from the integral.

Numerical Methods

In many real-world applications, the integrals involved in calculating surface area are too complex to solve analytically. In such cases, numerical integration methods are used. These methods approximate the integral by dividing the interval of integration into small subintervals and using numerical techniques (such as the trapezoidal rule or Simpson's rule) to estimate the integral's value. Software packages like MATLAB, Mathematica, and Python libraries like SciPy provide functions for numerical integration.

Key Takeaways

• The surface area of a solid of revolution is calculated by integrating the arc length element multiplied by 2π times the radius of rotation.
• The formula differs slightly depending on whether the rotation is around the x-axis or the y-axis.
• The complexity of the integral can vary significantly depending on the function and the axis of rotation.
• Numerical integration methods are often necessary for complex functions where analytical solutions are not feasible.
• Ensure the function is continuously differentiable and account for any "caps" formed during the revolution process.
