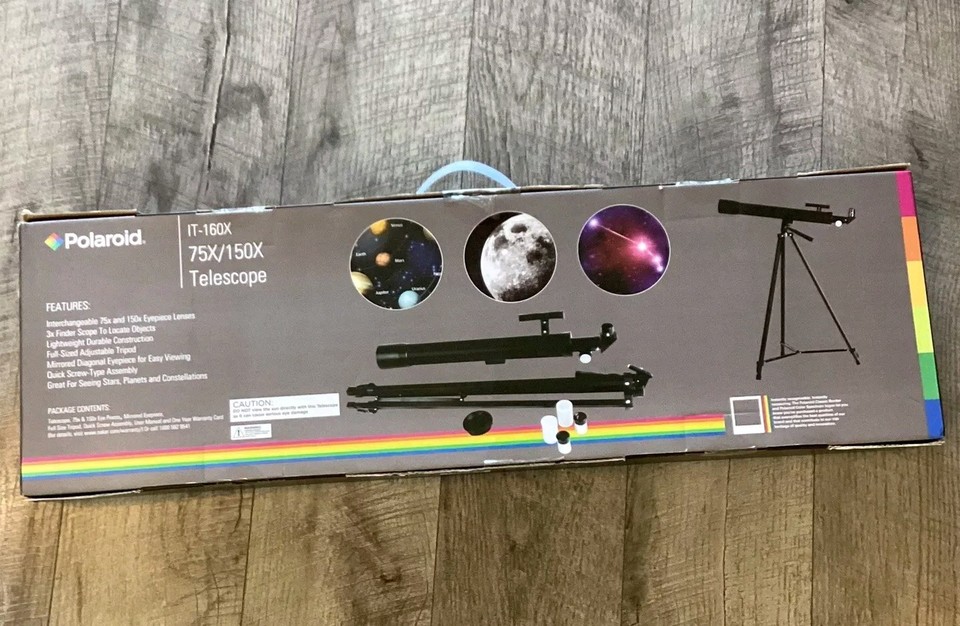

Polaroid Telescope 75x/150x How To Use

The Polaroid Telescope 75x/150x is an entry-level optical instrument designed for terrestrial and basic astronomical observation. This guide provides instructions on how to properly set up, operate, and maintain this telescope.

Initial Setup and Assembly

Unboxing and Parts Inventory

Carefully unpack all components from the box. Ensure that all listed parts are present. Typically, these include:

• Telescope tube
• Tripod
• Eyepieces (usually two: one for 75x magnification and one for 150x)
• Diagonal mirror
• Finderscope
• Finderscope bracket
• Various screws and tightening knobs

Consult the included manual to verify the complete parts list. Report any missing or damaged parts to the vendor immediately.

Tripod Assembly

The tripod provides a stable base for the telescope. Extend the tripod legs to the desired height, ensuring each leg is securely locked in place. Most tripods feature adjustable legs that can be independently extended to accommodate uneven terrain. Position the tripod on a level surface for optimal stability. If the tripod includes a central accessory tray, attach it according to the manual's instructions. The accessory tray adds stability and provides a convenient place to store eyepieces.

Telescope Tube Attachment

Attach the telescope tube to the tripod mount. This usually involves aligning mounting points on the tube with corresponding points on the tripod head. Secure the tube using the provided screws or knobs. Ensure the tube is firmly attached to prevent wobbling during observation. Do not overtighten the screws, as this could damage the mounting mechanism.

Finderscope Installation

The finderscope is a low-magnification telescope used to initially locate objects before viewing them through the main telescope. Attach the finderscope bracket to the telescope tube. Slide the finderscope into the bracket and secure it with the retaining screws. The finderscope should be aligned parallel to the main telescope tube.

Operating the Telescope

Eyepiece Insertion

The eyepiece is the lens through which you view the magnified image. Insert the diagonal mirror into the focuser tube at the rear of the telescope. The diagonal mirror redirects the light, making viewing more comfortable. Then, insert the desired eyepiece into the diagonal mirror. Start with the lower magnification eyepiece (75x) to locate objects more easily. The magnification of the eyepiece is usually marked on its side (e.g., 75x, 150x).

Focusing the Telescope

The focusing mechanism is used to bring the image into sharp focus. Rotate the focusing knob to adjust the distance between the eyepiece and the main mirror or lens. Look through the eyepiece and slowly adjust the focusing knob until the image is clear and sharp. The focusing range may vary depending on the distance of the object being observed. Fine-tuning the focus is crucial for achieving optimal image quality.

Using the Finderscope

The finderscope is used to roughly aim the telescope at a target. Look through the finderscope and align its crosshairs with the object you wish to observe. Tighten the finderscope bracket screws to secure its position. Once the object is centered in the finderscope, it should be visible (or very close to visible) in the main telescope's eyepiece. If not, minor adjustments to the telescope's position may be necessary.

Magnification Adjustment

To increase the magnification, remove the 75x eyepiece and insert the 150x eyepiece. Be aware that higher magnification also reduces the field of view and makes the image dimmer. Higher magnification also amplifies any vibrations, making the image less stable. Therefore, use higher magnification only when necessary and under stable viewing conditions.

Alignment and Calibration

Finderscope Alignment

The finderscope must be aligned with the main telescope to ensure accurate targeting. Choose a distant, stationary object, such as a building or a prominent tree. Center the object in the main telescope's eyepiece. Then, adjust the screws on the finderscope bracket until the same object is centered in the finderscope's crosshairs. This process may require some iteration. Recheck the alignment periodically, as the finderscope can shift over time.

Collimation (If Applicable)

Some telescopes, particularly reflectors, require collimation, which is the process of aligning the mirrors. The Polaroid Telescope 75x/150x is often a refractor type, which typically does not require collimation. However, if the image appears consistently blurry or distorted even after focusing, consult the manual for collimation instructions specific to the telescope model. Misalignment of the optics can significantly degrade image quality.

Tips for Optimal Viewing

Location Selection

Choose a viewing location away from city lights for optimal astronomical observation. Light pollution can significantly reduce the visibility of faint objects. For terrestrial viewing, ensure a clear line of sight to the target object. Avoid viewing across heat sources, such as asphalt, as this can cause image distortion.

Atmospheric Conditions

Atmospheric conditions can affect image quality. Clear, stable air is ideal for viewing. Avoid viewing on nights with high humidity or strong winds. High humidity can cause condensation on the optics, while strong winds can cause the telescope to vibrate.

Cool-Down Time

Allow the telescope to cool down to the ambient temperature before viewing. Temperature differences between the telescope and the surrounding air can cause image distortion. This cool-down period may take 30 minutes to an hour, depending on the temperature difference.

Eye Relief

Eye relief refers to the distance between the eyepiece and your eye where you can see the full field of view. Experiment with different eye positions to find the optimal eye relief. If you wear eyeglasses, you may need to remove them to achieve proper eye relief.

Observing Safety

Never look directly at the sun through the telescope or finderscope, even for a brief moment. This can cause severe and permanent eye damage. Use a proper solar filter specifically designed for telescopes when observing the sun. Supervise children closely when they are using the telescope.

Maintenance and Storage

Cleaning the Optics

Keep the optics clean to maintain optimal image quality. Use a soft, lint-free cloth to gently wipe the lenses. Avoid using harsh chemicals or abrasive cleaners. For stubborn dirt or fingerprints, use a lens cleaning solution specifically designed for optics. Apply the solution to the cloth, not directly to the lens.

Storage

Store the telescope in a dry, dust-free environment when not in use. Cover the telescope to protect it from dust and moisture. Disassemble the telescope and store the components in their original box or a protective case. Avoid storing the telescope in direct sunlight or extreme temperatures.

Regular Inspections

Periodically inspect the telescope for loose screws or damaged parts. Tighten any loose screws and replace any damaged parts. Regular maintenance will help to prolong the life of the telescope and ensure optimal performance.

Troubleshooting

Blurry Image

If the image appears blurry, check the following:

• Ensure the telescope is properly focused.
• Check the alignment of the finderscope.
• Clean the optics.
• Allow the telescope to cool down to the ambient temperature.
• Check atmospheric conditions.

Difficulty Locating Objects

If you have difficulty locating objects, try the following:

• Use the finderscope to roughly aim the telescope.
• Start with the lowest magnification eyepiece.
• Ensure the finderscope is properly aligned.
• Use a star chart or planetarium app to help you locate celestial objects.

Image Instability

If the image appears unstable, try the following:

• Ensure the tripod is stable and on a level surface.
• Avoid viewing on nights with strong winds.
• Use a lower magnification eyepiece.
• Reduce vibrations by minimizing contact with the telescope.

Conclusion

The Polaroid Telescope 75x/150x offers an accessible entry point into the world of amateur astronomy and terrestrial observation. Correct setup, careful operation, and diligent maintenance are crucial for maximizing the telescope's performance and ensuring user enjoyment. By following these guidelines, users can unlock the potential of this instrument and explore the wonders of the night sky, as well as the beauty of distant terrestrial objects. Understanding these basic functions can transform the telescope from a simple instrument into a powerful tool for exploration and discovery.
