Norton 1601 Door Closer Adjustment

Ever walk through a door and think, "Wow, that closed just right?" Probably not, right? We usually only notice doors when they don't work the way they should. But behind that seemingly simple act of a door closing smoothly is a whole world of engineering, specifically, the door closer. And if you've got a commercial space, chances are good you've encountered the Norton 1601. Let's dive into the surprisingly interesting world of adjusting these little mechanical marvels.

Why Should I Care About Door Closers?

Okay, fair question. Door closers aren't exactly the most glamorous topic. They're not as exciting as, say, the latest smartphone or a rocket launch. But think about it: they control traffic flow, maintain building security, and even help with energy efficiency by keeping doors from being left ajar. A properly adjusted door closer makes life easier and safer for everyone who uses the building. It's like the unsung hero of your building's infrastructure!

Imagine a door slamming shut every time someone walks through. Annoying, right? Or a door that swings open too fast, potentially hitting someone. These are precisely the problems that a well-adjusted door closer can prevent. It's about creating a smooth, safe, and predictable experience for everyone.

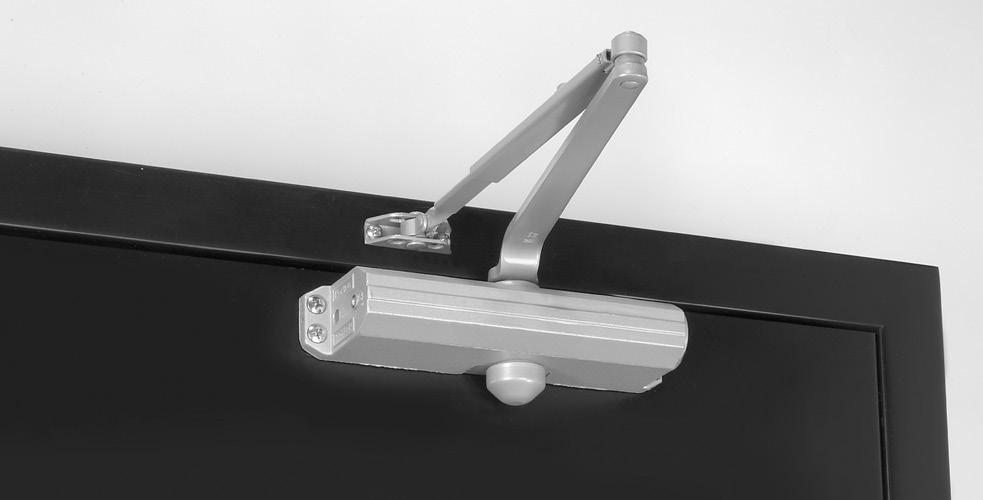

The Norton 1601: A Closer Look (Pun Intended!)

The Norton 1601 is a popular choice for commercial applications. Why? Well, it's known for its durability and reliability. It's built to withstand the rigors of daily use in busy environments. Think of it as the workhorse of door closers – not necessarily the flashiest, but definitely the one you can count on to get the job done. Its hydraulic system helps to regulate the closing speed, ensuring a controlled and quiet closing action.

Compared to some of the fancier, more complex door closers out there, the Norton 1601 is relatively straightforward to adjust. That’s a huge plus! But even seemingly simple machines can benefit from a little tweaking from time to time.

Getting Started: The Tools You'll Need

Before you start fiddling with the adjustments, you'll need a few basic tools. Don't worry, you don't need to be a master mechanic. Here’s what you’ll need:

• Screwdriver: Usually a flathead or Phillips head, depending on the type of adjustment screws on your specific unit.
• Allen wrench (Hex Key): Some models might use these for adjustments.
• Ladder (If needed): If the door closer is mounted high up. Safety first!
• Patience: Adjustment might take a few tries to get it just right.

Make sure you have the right size screwdriver or Allen wrench. Using the wrong size can damage the adjustment screws, which is definitely something you want to avoid!

Understanding the Adjustment Screws

Okay, this is where things get a little technical, but don't worry, we'll keep it simple. The Norton 1601 typically has two (or sometimes three) adjustment screws that control the closing speed. These screws regulate the flow of hydraulic fluid inside the closer, which in turn controls how fast the door closes. Think of it like adjusting the volume knob on a radio – you're controlling the "flow" of the sound (or, in this case, the speed of the door).

Let's break down the typical adjustments:

Sweep Speed (Closing Speed)

This screw controls the initial closing speed of the door, from its fully open position until it's almost closed. You want this speed to be fast enough that the door closes securely, but not so fast that it slams. This is often the longest part of the closing cycle.

Latch Speed

This screw controls the speed of the door during the last few inches of its closing cycle. This is the critical part where the door actually latches. You want this speed to be quick enough to ensure a solid latch, but not so forceful that it creates a loud bang. Getting this adjustment right is key to a secure and quiet closing action.

Backcheck (Optional)

Some Norton 1601 models have a third adjustment screw for backcheck. Backcheck is a resistance that slows the door down as it approaches its maximum opening angle. This prevents the door from slamming into the wall or other objects. Think of it as the door closer's built-in brake!

Important Note: Before you start making any adjustments, take a good look at the existing settings. Note the position of the screws so you can easily return to the original settings if needed. It's like taking a "before" picture before you redecorate a room!

The Adjustment Process: A Step-by-Step Guide

Alright, let's get down to business. Here’s a general guide to adjusting your Norton 1601. Remember to adjust in small increments! A little adjustment can make a big difference.

1. Locate the Adjustment Screws: They're usually located on the end of the door closer body.
2. Identify the Sweep Speed Screw: This is usually the screw closest to the hinge side of the door.
3. Adjust the Sweep Speed: Turn the screw clockwise to slow down the closing speed, and counterclockwise to speed it up. Make small adjustments (like a quarter turn at a time) and test the door's closing action after each adjustment.
4. Identify the Latch Speed Screw: This is usually the screw furthest from the hinge side of the door.
5. Adjust the Latch Speed: Similar to the sweep speed, turn the screw clockwise to slow down the latch speed, and counterclockwise to speed it up. Again, make small adjustments and test.
6. (If Applicable) Adjust the Backcheck: This adjustment is similar to the other two. Turning the screw clockwise increases the backcheck resistance, and counterclockwise decreases it.
7. Test and Fine-Tune: Once you've made the initial adjustments, test the door's closing action thoroughly. Open and close the door several times, paying close attention to the sweep speed, latch speed, and backcheck. Fine-tune the adjustments until you achieve the desired closing action.

Troubleshooting Common Problems

Sometimes, even with careful adjustments, you might still encounter problems. Here are a few common issues and how to address them:

• Door Closes Too Fast: Try turning the sweep speed screw clockwise. If that doesn't work, check for obstructions in the door's path or damage to the door closer.
• Door Closes Too Slowly: Try turning the sweep speed screw counterclockwise. Make sure the door and frame are properly aligned and that the door closer is properly lubricated.
• Door Slams Shut: Reduce the latch speed by turning the latch speed screw clockwise.
• Door Doesn't Latch Properly: Increase the latch speed by turning the latch speed screw counterclockwise. Also, check the door's alignment and make sure the latch is properly engaging the strike plate.
• Door Leaks Fluid: If you see hydraulic fluid leaking from the door closer, it's a sign that the unit is damaged and needs to be replaced. Don't try to repair it yourself!

When to Call a Professional

While adjusting a Norton 1601 is often a DIY-friendly task, there are times when it's best to call in a professional. If you're not comfortable working with mechanical devices, or if you've tried adjusting the door closer and it's still not working properly, it's a good idea to consult a qualified locksmith or door closer technician.

Signs that you need professional help include:

• Visible Damage: If the door closer is physically damaged (e.g., cracked housing, bent arm).
• Fluid Leaks: As mentioned earlier, leaking fluid indicates a serious problem.
• Inability to Adjust: If the adjustment screws are stripped or frozen, or if you simply can't get the door closer to function properly.

Final Thoughts

Adjusting a Norton 1601 door closer might seem like a small thing, but it can make a big difference in the overall functionality and safety of your building. By understanding the basics of door closer adjustment, you can keep your doors closing smoothly and reliably for years to come. So, the next time you walk through a door, take a moment to appreciate the often-overlooked engineering marvel that makes it all possible. And who knows, maybe you'll even find yourself thinking, "Wow, that closed just right!"
