Mercedes E320 Brake Pad Replacement

This article details the process of replacing brake pads on a Mercedes-Benz E320. Replacing brake pads is a routine maintenance task, and understanding the procedure can empower owners to perform this service themselves, potentially saving on labor costs. Always consult your vehicle's service manual for specific instructions and torque specifications.

Preparation and Safety Precautions

Prior to commencing any work on your vehicle's braking system, ensure a safe and stable working environment. Park the vehicle on a level surface, engage the parking brake firmly, and chock the rear wheels to prevent movement. Gather the necessary tools and materials, including:

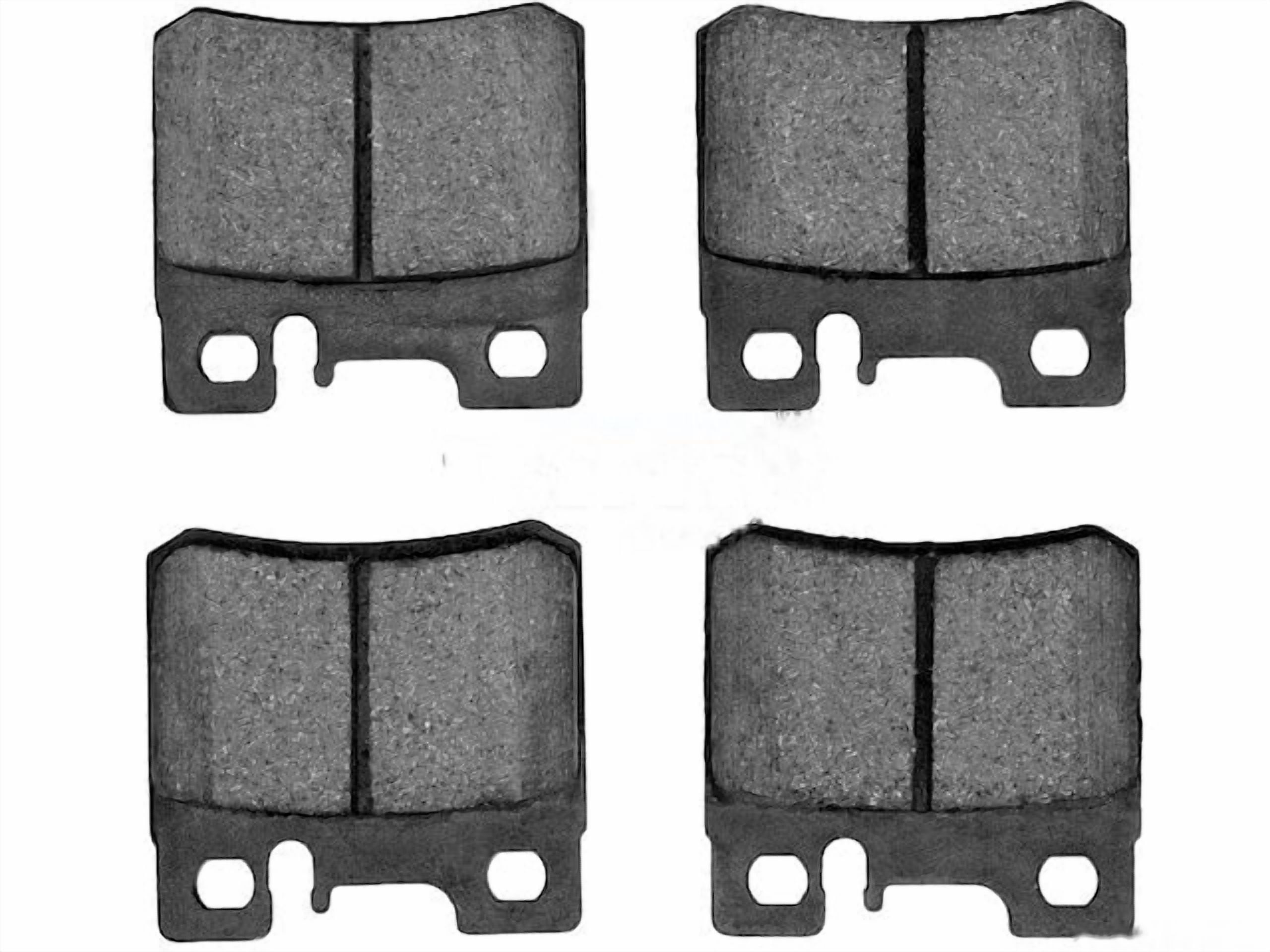

• New brake pads (ensure they are compatible with your E320 model year)
• A lug wrench
• A jack and jack stands
• A brake caliper compressor tool (or C-clamp)
• A socket set and wrench set
• A torque wrench
• Brake cleaner
• Gloves and eye protection
• Wheel chocks
• Optional: Brake pad sensor (if equipped and triggered)
• Optional: Anti-seize compound

Safety First: Wear gloves to protect your hands from brake dust and chemicals. Always wear eye protection. Brake dust contains asbestos in older vehicles, but even modern brake dust can be harmful. Dispose of old brake pads properly according to local regulations. Never work under a vehicle supported only by a jack; always use jack stands.

Step-by-Step Brake Pad Replacement

1. Loosening the Lug Nuts

Using the lug wrench, loosen the lug nuts on the wheel you will be working on. Do not remove them completely at this stage; simply break them free. This is easier to accomplish while the wheel is still on the ground.

2. Lifting the Vehicle and Securing It

Consult your owner's manual for the correct jacking points on your E320. Position the jack securely under the designated jacking point and raise the vehicle until the tire is off the ground. Place a jack stand under a sturdy part of the vehicle's frame near the jacking point. Lower the vehicle onto the jack stand, ensuring it is securely supported. Never work under a vehicle supported only by a jack.

3. Removing the Wheel

Now that the vehicle is safely supported, completely remove the lug nuts and carefully remove the wheel. Set the wheel aside in a safe location.

4. Inspecting the Brake Caliper and Rotor

With the wheel removed, you will have a clear view of the brake caliper and rotor. Before proceeding, visually inspect these components for any signs of damage or wear. Look for excessive rust, cracks in the rotor, or leaks around the caliper. Address any significant issues before replacing the brake pads.

5. Disconnecting the Brake Pad Sensor (If Equipped)

Some E320 models are equipped with a brake pad wear sensor. If your vehicle has one, locate the sensor wire connected to the brake caliper. Carefully disconnect the sensor wire. Note the orientation of the sensor for reinstallation. If the sensor triggered a warning light, consider replacing it with a new one when replacing the brake pads.

6. Removing the Brake Caliper

Locate the bolts that secure the brake caliper to the caliper bracket. Typically, these are located on the rear of the caliper. Use the appropriate socket or wrench to remove these bolts. You may need to use a wrench to hold the caliper guide pins while loosening the bolts. Once the bolts are removed, carefully slide the caliper off the rotor. Important: Do not let the caliper hang by the brake hose. Use a bungee cord or wire to suspend the caliper from the suspension, preventing stress on the brake line.

7. Removing the Old Brake Pads

With the caliper removed, you can now access the old brake pads. The pads are typically held in place by clips or friction. Slide or pry the old pads out of the caliper bracket. Note the orientation of the pads for proper installation of the new pads. Inspect the caliper hardware (clips, springs) for wear or damage and replace if necessary.

8. Compressing the Caliper Piston

Before installing the new brake pads, you must compress the caliper piston back into the caliper. This creates space for the thicker new pads. Use a brake caliper compressor tool to slowly and evenly push the piston back into the caliper. If you do not have a caliper compressor tool, you can use a C-clamp and an old brake pad as a buffer to protect the piston. Be careful not to damage the piston or the caliper during this process. Ensure the brake fluid reservoir is not overfilled, as compressing the piston will displace fluid back into the reservoir. If necessary, remove some fluid to prevent overflow.

9. Installing the New Brake Pads

Install the new brake pads into the caliper bracket in the same orientation as the old pads. Ensure they are properly seated and secured by the clips or hardware. Apply a small amount of anti-seize compound to the back of the brake pads (where they contact the caliper piston) to help prevent squealing. Be careful not to get any anti-seize compound on the friction surface of the pads or the rotor.

10. Reinstalling the Brake Caliper

Carefully slide the brake caliper back onto the rotor, aligning it with the caliper bracket. Reinstall the caliper bolts and tighten them to the manufacturer's specified torque using a torque wrench. Consult your vehicle's service manual for the correct torque specification. Over-tightening can damage the caliper or bolts; under-tightening can lead to brake failure.

11. Reconnecting the Brake Pad Sensor (If Equipped)

If your vehicle has a brake pad wear sensor, reconnect the sensor wire to the caliper. Ensure the connection is secure.

12. Reinstalling the Wheel

Carefully reinstall the wheel onto the hub. Tighten the lug nuts by hand in a star pattern. Lower the vehicle to the ground and remove the jack stand. Using the torque wrench, torque the lug nuts to the manufacturer's specified torque in a star pattern. Consult your vehicle's service manual for the correct torque specification.

13. Repeating the Process on the Other Side

Repeat steps 1-12 on the other front wheel. It is generally recommended to replace brake pads in pairs (both front or both rear) to ensure even braking performance.

14. Bedding In the New Brake Pads

After replacing the brake pads, it is crucial to "bed in" the new pads to the rotors. This process involves a series of controlled stops that transfer brake pad material onto the rotor surface, optimizing braking performance and reducing brake noise. Consult your brake pad manufacturer's recommendations for the specific bedding-in procedure for your pads. A common method involves performing several moderate stops from 30 mph to 10 mph, followed by a cooling period. Avoid hard braking during the initial bedding-in period.

15. Testing and Final Inspection

After bedding in the brake pads, test the brakes in a safe area. Ensure the brake pedal feels firm and responsive. Check for any unusual noises or vibrations. Inspect the brake fluid level and top off if necessary. Double-check all connections and ensure all tools have been removed from the vehicle.

Practical Advice

Performing regular visual inspections of your brake system is essential for maintaining its proper function and ensuring your safety. Listen for any unusual noises, such as squealing or grinding, when braking. These sounds can indicate worn brake pads or other brake system issues. If you notice any problems, have your brakes inspected by a qualified mechanic as soon as possible. It's always best to be proactive when it comes to brake maintenance, as neglecting brake problems can lead to more costly repairs and compromise your safety on the road. Consider replacing your brake rotors at the same time as your brake pads, especially if the rotors are worn or scored. This ensures optimal braking performance and extends the life of your brake system. Using high-quality brake pads and rotors can also improve braking performance and reduce brake dust.
