Mercedes Benz Mass Air Flow Sensor
The Mass Air Flow (MAF) sensor is a critical component in the engine management system of a Mercedes-Benz vehicle. It measures the amount of air entering the engine, enabling the engine control unit (ECU) to accurately determine the correct amount of fuel to inject. A properly functioning MAF sensor is essential for optimal engine performance, fuel efficiency, and emissions control. This article provides a detailed explanation of the Mercedes-Benz MAF sensor, its function, symptoms of failure, testing procedures, and replacement considerations.
Understanding the Mass Air Flow Sensor

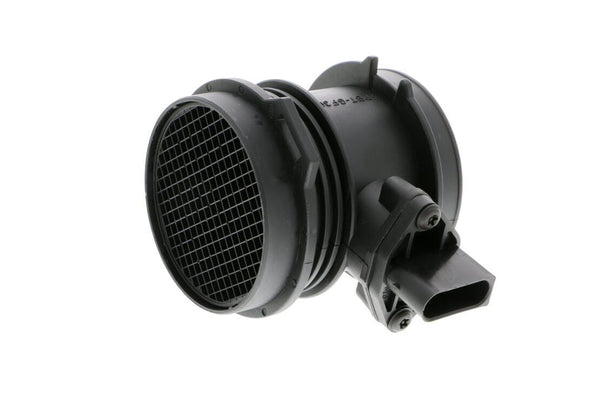

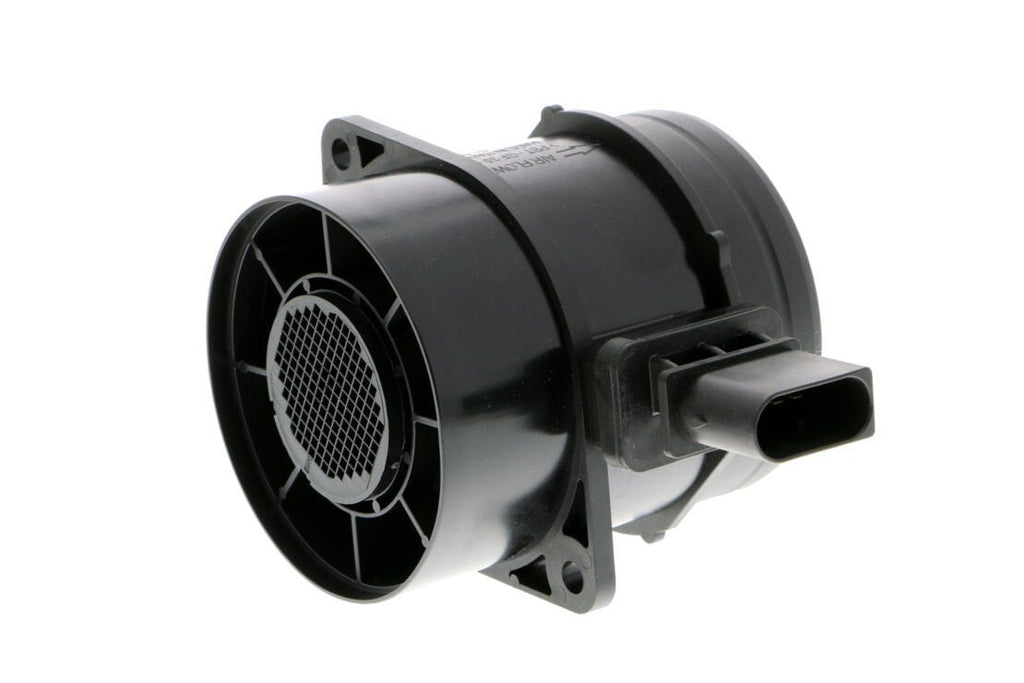

The MAF sensor is typically located in the intake air stream, between the air filter and the throttle body. Its primary function is to measure the mass of air flowing into the engine. This information is crucial for the ECU to calculate the appropriate air-fuel ratio, which is typically around 14.7:1 for stoichiometric combustion. The stoichiometric ratio ensures complete combustion, minimizing harmful emissions.
Mercedes-Benz vehicles commonly employ two main types of MAF sensors:
Must Read
Hot-Wire MAF Sensor
This is the more prevalent type. It operates on the principle of heat transfer. A heated wire (usually platinum) is placed in the path of the incoming air. As air flows across the wire, it cools the wire. The sensor's electronic circuit maintains a constant temperature on the wire by varying the electrical current flowing through it. The amount of current required to maintain this constant temperature is directly proportional to the mass of air flowing through the sensor. The ECU interprets this current signal as the mass airflow rate.
Example: A higher current reading indicates a greater mass of air entering the engine, prompting the ECU to inject more fuel.
Hot-Film MAF Sensor
This type uses a thin film heated element instead of a wire. The principle of operation is similar to the hot-wire sensor, but the hot-film sensor generally offers faster response times and improved accuracy due to its lower thermal mass. It is often found in newer Mercedes-Benz models.
Symptoms of a Failing MAF Sensor
When a MAF sensor malfunctions, it can lead to a variety of performance issues. Recognizing these symptoms is the first step in diagnosing a potential problem.
- Poor Engine Performance: A faulty MAF sensor can cause hesitation, stumbling, or a lack of power, especially during acceleration. This is because the ECU is receiving incorrect information about the airflow, resulting in an incorrect air-fuel mixture.
- Rough Idling: An unstable or rough idle is a common symptom. The engine may surge or stall, particularly when cold.
- Reduced Fuel Efficiency: An inaccurate air-fuel mixture can lead to excessive fuel consumption. You may notice a significant decrease in your car's gas mileage.
- Check Engine Light: The ECU will often detect a MAF sensor malfunction and illuminate the check engine light. Diagnostic trouble codes (DTCs) related to the MAF sensor, such as P0100, P0101, P0102, and P0103, will be stored in the ECU's memory.
- Black Smoke from Exhaust: A rich air-fuel mixture (too much fuel) caused by a faulty MAF sensor can result in black smoke emanating from the exhaust pipe.
- Stalling: The engine may stall, especially when coming to a stop or during low-speed maneuvers.
- Difficulty Starting: In some cases, a severely malfunctioning MAF sensor can make it difficult to start the engine.
Testing the MAF Sensor
Before replacing the MAF sensor, it's important to accurately diagnose the problem. Several methods can be used to test the MAF sensor's functionality.
Visual Inspection
Begin with a visual inspection of the MAF sensor and its wiring. Look for any signs of damage, such as cracks, loose connections, or corrosion. Ensure that the sensor is properly connected and that the wiring harness is intact.
Using a Scan Tool
A scan tool (OBD-II scanner) can be used to read DTCs stored in the ECU. This will help pinpoint the specific problem. Furthermore, many scan tools can display live data from the MAF sensor, allowing you to monitor its output in real-time. Observe the MAF sensor reading while the engine is running. The reading should increase smoothly as the engine RPM increases. A erratic or absent reading indicates a problem.
Example: At idle, a typical MAF sensor reading might be around 3-5 grams per second (g/s). At higher RPMs, this reading should increase significantly.
Multimeter Testing
A multimeter can be used to measure the voltage output of the MAF sensor. Refer to your vehicle's repair manual or wiring diagram for the specific pin assignments and expected voltage ranges. Generally, you will need to measure the voltage between the signal wire and ground with the ignition on and the engine idling. Compare your readings to the manufacturer's specifications.
Cleaning the MAF Sensor
Sometimes, a MAF sensor can become contaminated with dirt, oil, or other debris, leading to inaccurate readings. Cleaning the MAF sensor with a specialized MAF sensor cleaner can sometimes restore its functionality. Disconnect the sensor, carefully spray the cleaning solution onto the sensing element, and allow it to air dry completely before reinstalling. Do not touch the sensing element with your fingers or any other object, as this can damage it.
Replacing the MAF Sensor
If testing confirms that the MAF sensor is faulty, replacement is usually the best course of action. Follow these steps to replace the MAF sensor:
- Disconnect the Negative Battery Terminal: This is crucial for safety and to prevent damage to the electrical system.
- Locate the MAF Sensor: As mentioned earlier, it's typically located in the intake air stream, between the air filter and the throttle body.
- Disconnect the Electrical Connector: Carefully disconnect the electrical connector from the MAF sensor.
- Remove the Old MAF Sensor: Depending on the design, the MAF sensor may be held in place by screws or clamps. Remove these fasteners and carefully remove the sensor.
- Install the New MAF Sensor: Install the new MAF sensor in the reverse order of removal. Ensure that it is securely fastened and that the electrical connector is properly connected.
- Reconnect the Negative Battery Terminal: Reconnect the negative battery terminal.
- Clear Diagnostic Trouble Codes: Use a scan tool to clear any DTCs stored in the ECU.
- Test Drive the Vehicle: Test drive the vehicle to ensure that the problem has been resolved and that the engine is running smoothly.
Important Considerations:
- Use a Quality Replacement Part: Always use a high-quality replacement MAF sensor from a reputable manufacturer. Avoid using cheap aftermarket sensors, as they may not meet the required specifications and can lead to further problems. Using an OEM (Original Equipment Manufacturer) or an equivalent high-quality aftermarket sensor is recommended for optimal performance and reliability.
- Proper Installation: Ensure that the new MAF sensor is installed correctly and that all connections are secure.
- Adaptation: Some Mercedes-Benz models may require adaptation of the new MAF sensor to the ECU using a diagnostic tool. This process allows the ECU to learn the characteristics of the new sensor and optimize engine performance. Consult your vehicle's repair manual or a qualified technician for more information.
Practical Advice and Insights
The MAF sensor is a vital component for maintaining the performance and efficiency of your Mercedes-Benz. Regular maintenance, such as replacing the air filter at recommended intervals, can help prevent contamination of the MAF sensor. If you experience any of the symptoms described above, it's crucial to diagnose the problem promptly to avoid further engine damage. While cleaning the MAF sensor can sometimes resolve minor issues, replacement is often necessary for a long-term solution. Investing in a quality replacement part and ensuring proper installation will ensure optimal engine performance and fuel efficiency.
Understanding the function and potential issues of your Mercedes-Benz's MAF sensor can empower you to communicate effectively with your mechanic and make informed decisions about repairs. This knowledge can ultimately save you time, money, and ensure the longevity of your vehicle.
