John Deere Z335e Deck Lift Cable

The John Deere Z335e is a popular zero-turn mower known for its maneuverability and efficiency in maintaining residential lawns. A crucial component contributing to its functionality is the deck lift system, and at the heart of this system lies the deck lift cable. This article provides a detailed explanation of the John Deere Z335e deck lift cable, its purpose, operation, maintenance, potential issues, and replacement procedures.

Understanding the Deck Lift System

Before delving into the specifics of the cable itself, it’s important to understand the broader context of the deck lift system. This system allows the operator to adjust the cutting height of the mower deck, controlling how closely the blades trim the grass. The deck lift system typically consists of a lever or foot pedal, a series of mechanical linkages, and the deck lift cable itself. When the operator actuates the lever, the linkages transfer force to the cable, which in turn raises or lowers the mower deck.

The deck lift system provides several benefits:

• Customized Cutting Height: Allows the operator to select the optimal cutting height based on grass type, personal preference, and seasonal conditions.
• Obstacle Clearance: Enables raising the deck to avoid scalping the lawn over uneven terrain or clearing obstacles like roots and rocks.
• Ease of Transport: Facilitates raising the deck for transport, preventing damage to the blades and deck components.

The Role of the Deck Lift Cable

The deck lift cable acts as a critical connection in the deck lift system. It’s typically a steel cable encased in a protective sheath. Its primary function is to transmit the mechanical force from the deck lift lever (or foot pedal) to the deck itself, enabling the raising and lowering action. The cable is usually connected to the lever mechanism at one end and to the deck lift arms or linkages at the other. When the operator engages the lever, the cable is either pulled (to raise the deck) or released (to lower the deck, often assisted by springs).

Key Characteristics of a Deck Lift Cable

• Material: Typically constructed from high-strength steel strands for durability and resistance to stretching.
• Sheathing: Enclosed in a protective outer sheath made of plastic or rubber to prevent corrosion, protect the cable from debris, and ensure smooth operation.
• End Fittings: Equipped with specialized end fittings (e.g., loops, clevises, or threaded ends) that allow for secure attachment to the lever mechanism and deck lift arms.
• Length and Diameter: Designed with specific length and diameter specifications to match the geometry of the mower deck and lift system.

How the Deck Lift Cable Operates

The operation of the deck lift cable is relatively straightforward. When the operator moves the deck lift lever to a desired height setting, the lever pulls or releases the cable. This action translates into the movement of the deck lift arms, which are directly connected to the mower deck. As the arms pivot, they raise or lower the deck to the selected cutting height. A properly functioning cable ensures a smooth and responsive adjustment of the deck height.

Here's a simplified breakdown of the process:

1. Operator actuates the deck lift lever.
2. Lever applies tension to the deck lift cable (or releases tension).
3. Cable transmits force to the deck lift arms.
4. Deck lift arms pivot, raising or lowering the mower deck.
5. Desired cutting height is achieved and maintained.

Maintenance and Inspection of the Deck Lift Cable

Regular maintenance and inspection of the deck lift cable are essential for ensuring the proper functioning of the mower and preventing potential issues. Neglecting the cable can lead to difficulties in adjusting the deck height or, in severe cases, complete failure of the lift system.

Inspection Points

• Cable Condition: Check the cable for signs of fraying, kinking, rust, or corrosion. Any of these conditions can compromise the cable's strength and lead to breakage.
• Sheath Condition: Inspect the outer sheath for cracks, tears, or damage. A damaged sheath can allow moisture and debris to enter, accelerating cable corrosion and hindering smooth movement.
• End Fittings: Examine the end fittings for looseness, damage, or corrosion. Ensure that they are securely attached to the lever mechanism and deck lift arms.
• Cable Tension: Verify that the cable has the appropriate tension. Excessive slack can lead to sluggish deck height adjustments, while excessive tension can strain the cable and accelerate wear.

Maintenance Procedures

• Lubrication: Periodically lubricate the cable with a suitable cable lubricant or penetrating oil. This helps reduce friction, prevent corrosion, and ensure smooth operation within the sheath. Focus on lubricating the exposed portions of the cable and the end fittings.
• Cleaning: Clean the cable and surrounding areas to remove dirt, debris, and grass clippings. A clean environment helps prevent corrosion and ensures that the cable moves freely.
• Adjustment: If the deck height adjustment feels sluggish or inconsistent, check the cable tension. Some mowers have an adjustment mechanism that allows you to fine-tune the cable tension. Refer to the operator's manual for specific instructions.

Potential Issues and Troubleshooting

Several issues can arise with the deck lift cable, affecting the mower's performance. Recognizing these problems early can help prevent further damage and ensure timely repairs.

Common Problems

• Sticking or Binding: The deck lift lever may feel stiff or difficult to move, indicating that the cable is sticking or binding within the sheath. This is often caused by corrosion, dirt, or lack of lubrication.
• Slack in the Cable: Excessive slack in the cable can result in a delayed or incomplete deck height adjustment. This may be due to cable stretching or slippage at the end fittings.
• Cable Breakage: In severe cases, the cable can break entirely, rendering the deck lift system inoperable. This is typically caused by excessive wear, corrosion, or overloading the system.
• Uneven Deck Height: If the deck is not level or consistently cuts at the selected height, it could indicate an issue with the cable or related linkages.

Troubleshooting Steps

• Check for Obstructions: Ensure that there are no obstructions preventing the deck from moving freely. Remove any debris or grass clippings that may be interfering with the deck lift arms or cable.
• Lubricate the Cable: Apply cable lubricant to the exposed portions of the cable and the end fittings. Try moving the deck lift lever several times to work the lubricant into the sheath.
• Adjust Cable Tension: If the cable has excessive slack, adjust the tension according to the operator's manual.
• Inspect for Damage: Thoroughly inspect the cable and surrounding components for any signs of damage, such as fraying, kinking, or corrosion.

If the problem persists after performing these troubleshooting steps, it may be necessary to replace the deck lift cable.

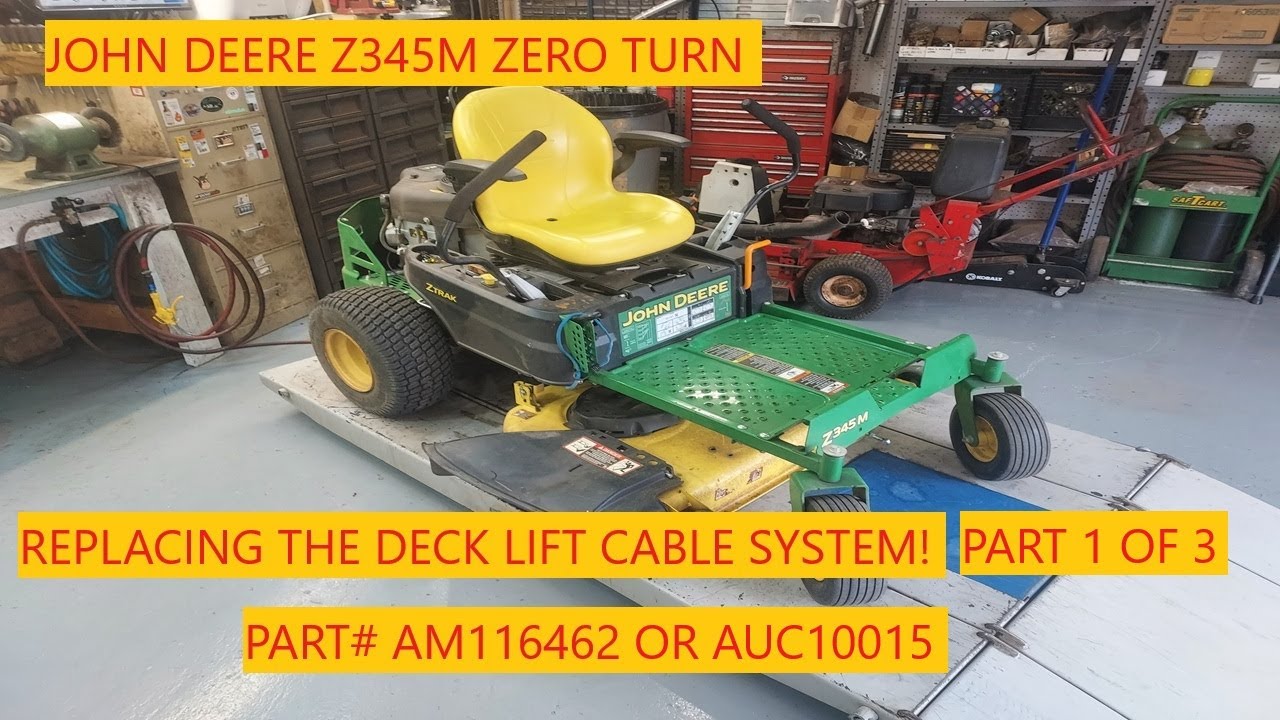

Replacing the Deck Lift Cable

Replacing the deck lift cable is a task that can often be performed by a mechanically inclined individual. However, it's important to consult the operator's manual for specific instructions and safety precautions. Here's a general overview of the replacement procedure:

Steps for Replacement

1. Safety First: Disconnect the spark plug wire to prevent accidental starting of the engine. Engage the parking brake and ensure the mower is on a level surface.
2. Access the Cable: Locate the deck lift cable and its connection points to the lever mechanism and deck lift arms. You may need to remove some panels or covers to gain access.
3. Disconnect the Old Cable: Carefully disconnect the old cable from the lever mechanism and deck lift arms. Note the orientation of the cable and the placement of any hardware (e.g., clips, bolts, or washers).
4. Install the New Cable: Connect the new cable to the lever mechanism and deck lift arms, ensuring that it is properly oriented and securely attached. Use the same hardware that was used with the old cable.
5. Adjust Cable Tension: Adjust the cable tension according to the operator's manual. The goal is to achieve a smooth and responsive deck height adjustment without excessive slack or tension.
6. Test the System: Start the engine (after reconnecting the spark plug wire) and test the deck lift system. Verify that the deck raises and lowers smoothly and that the cutting height is consistent.
7. Reassemble: Reinstall any panels or covers that were removed to access the cable.

Important Considerations:

• Use the Correct Replacement Part: Always use a genuine John Deere replacement cable or a high-quality aftermarket cable that is specifically designed for the Z335e model. Using an incorrect cable can lead to poor performance or damage to the system.
• Consult the Operator's Manual: The operator's manual contains detailed instructions and diagrams for your specific mower model. Refer to the manual for proper cable routing, tension adjustment, and safety precautions.
• Professional Assistance: If you are not comfortable performing the replacement yourself, seek assistance from a qualified mechanic or John Deere dealer.

Why the Deck Lift Cable Matters

The deck lift cable in your John Deere Z335e might seem like a small component, but it plays a vital role in maintaining the health and appearance of your lawn. A properly functioning cable ensures consistent cutting heights, prevents scalping, and allows for efficient mowing. By understanding the cable's function, performing regular maintenance, and addressing issues promptly, you can prolong the life of your mower and achieve a consistently well-manicured lawn.

In essence, a well-maintained deck lift cable translates to:

• A healthier, more aesthetically pleasing lawn.
• A longer lifespan for your John Deere Z335e.
• Improved mowing efficiency and ease of use.
