How To Use Magnum Project Painter Plus

Magnum Project Painter Plus is an airless paint sprayer designed for handling medium to large painting projects. Its proper operation ensures a professional finish and efficient use of materials. This article provides a detailed guide on how to use the Magnum Project Painter Plus effectively.

Preparation

Surface Preparation

The first step involves preparing the surface to be painted. This includes cleaning the surface to remove any dirt, dust, grease, or mildew. Use appropriate cleaning solutions and tools, such as soap and water, degreasers, and scrub brushes. Rinse thoroughly and allow the surface to dry completely before proceeding.

Repair any imperfections in the surface, such as cracks or holes. Use spackle or patching compound to fill these areas. Sand the repaired areas smooth after the compound has dried. Prime the patched areas for optimal paint adhesion.

Mask off areas that should not be painted, such as windows, trim, and fixtures. Use painter's tape and plastic sheeting to protect these surfaces.

Material Preparation

Select the appropriate paint for the project. Consider the type of surface being painted, the desired finish, and the environmental conditions. Ensure the paint is compatible with airless sprayers. Latex and acrylic paints are commonly used, but always check the manufacturer's recommendations.

Thin the paint if necessary. Some paints may be too thick for airless spraying and need to be thinned to achieve the proper consistency. Use the thinner recommended by the paint manufacturer and follow their instructions carefully. Over-thinning can compromise the paint's coverage and durability.

Stir the paint thoroughly to ensure uniform consistency. Use a mixing stick to stir the paint from the bottom of the can to the top, ensuring any settled pigments are fully incorporated.

Sprayer Preparation

Before each use, inspect the sprayer for any damage or wear. Check the hoses, connections, and spray tip for leaks or clogs. Replace any worn or damaged parts before proceeding.

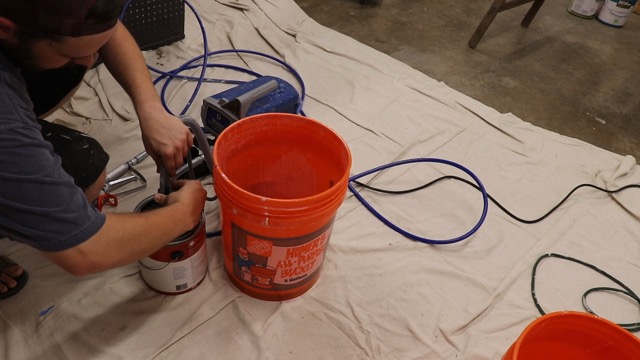

Prime the sprayer. This involves drawing paint into the sprayer and circulating it through the system to remove any air and ensure the paint flows smoothly. Insert the suction tube into the paint can and turn the power switch to the "Prime" setting. Once paint begins to flow from the drain tube, switch the sprayer to the "Spray" setting.

Adjust the pressure setting on the sprayer. Start with a low-pressure setting and gradually increase it until you achieve a consistent spray pattern without excessive overspray. Refer to the sprayer's manual for recommended pressure settings for different types of paint.

Spraying Technique

Stance and Distance

Maintain a consistent distance from the surface being painted. A distance of 10-12 inches is generally recommended. Holding the sprayer too close can result in runs and drips, while holding it too far away can cause overspray and a rough texture.

Maintain a steady stance and use your entire body to move the sprayer. Avoid using only your wrist, as this can lead to uneven coverage. Move the sprayer in smooth, even strokes, keeping the spray tip perpendicular to the surface.

Overlapping

Overlap each stroke by approximately 50%. This ensures complete coverage and prevents streaks or light spots. Start each stroke just before the edge of the previous stroke, maintaining a consistent speed and distance.

Feather the edges of each stroke. This involves slightly releasing the trigger at the end of each stroke to avoid a build-up of paint at the edges. Feathering creates a softer, more blended finish.

Spraying Patterns

Use a consistent spraying pattern to achieve even coverage. A common technique is to spray in a series of overlapping horizontal or vertical strokes. Avoid arcing or sweeping motions, as these can result in uneven coverage.

When painting corners and edges, use a technique called "boxing." This involves spraying a narrow band of paint along the edge or corner first, then filling in the remaining area with the regular spraying pattern. Boxing helps to create a sharp, clean edge.

Troubleshooting

Clogs

If the sprayer clogs, turn off the power and relieve the pressure. Remove the spray tip and clean it thoroughly with a brush or solvent. Reinstall the tip and try spraying again. If the clog persists, check the filters and hoses for any blockages.

Runs and Drips

Runs and drips are usually caused by applying too much paint in one area. To fix runs and drips, stop spraying and allow the paint to dry completely. Then, sand the affected area smooth and repaint it using a lighter coat of paint.

Overspray

Overspray is caused by using too much pressure or holding the sprayer too far away from the surface. Reduce the pressure setting on the sprayer and hold it closer to the surface. Ensure that you are using the correct spray tip for the type of paint you are using.

Cleanup

Flushing the Sprayer

After each use, clean the sprayer thoroughly to prevent the paint from drying and clogging the system. Remove the paint from the hopper or can and replace it with clean water or solvent, depending on the type of paint used.

Flush the sprayer until the water or solvent runs clear. This ensures that all the paint is removed from the hoses, pump, and spray tip. Repeat the flushing process as needed until the sprayer is completely clean.

Cleaning Components

Disassemble the sprayer and clean each component separately. Remove the spray tip, filters, and hoses and clean them with a brush and solvent. Inspect each component for any damage or wear and replace as needed.

Wipe down the exterior of the sprayer with a damp cloth to remove any paint or dirt. Store the sprayer in a clean, dry place to prevent corrosion and damage.

Disposal

Dispose of used paint and solvents properly. Check your local regulations for guidelines on disposing of hazardous materials. Never pour paint or solvents down the drain or into the environment.

Practical Advice

Always wear appropriate safety gear when using an airless paint sprayer, including a respirator, eye protection, and gloves. Airless sprayers can generate high-pressure spray, which can be harmful if inhaled or comes into contact with skin or eyes.

Practice spraying on a piece of cardboard or scrap material before starting on the actual project. This allows you to adjust the pressure and technique to achieve the desired finish.

Consider the weather conditions when painting outdoors. Avoid painting on windy days, as this can cause overspray and uneven coverage. Also, avoid painting in direct sunlight, as this can cause the paint to dry too quickly and lead to cracking or peeling.

Maintain your sprayer regularly. Following the manufacturer's maintenance schedule can extend the life of your sprayer and ensure optimal performance. This includes cleaning the sprayer after each use, replacing worn parts, and storing the sprayer properly.

When taking breaks, relieve the pressure in the sprayer. This prevents accidental spraying and ensures your safety.
