How To Test Harley Twist Grip Sensor

Okay, so picture this: I'm cruising down the highway on my '09 Dyna, feeling the wind in my hair (what little I have left, anyway!), and suddenly...nothing. The throttle just dies. Engine sputtering, me swearing under my breath. Turns out, it was the dreaded Twist Grip Sensor, or TGS, acting up again. It's like the sensor just decided it was quitting time and took my engine with it. Ever had that happen? It's super fun... said no one ever.

That's what got me thinking: How many other riders are dealing with this same mysterious throttle gremlin? And how many are shelling out big bucks to the dealership for something they could potentially diagnose and maybe even fix themselves? That’s why I wanted to write this down. Because ain's nobody got money for that!

So, let's dive into the wonderful world of Harley-Davidson Twist Grip Sensors! This isn't going to be a super technical, engineer-level explanation. I’m going to try and keep it simple and direct. We're going to focus on practical testing methods you can use in your garage with a few basic tools.

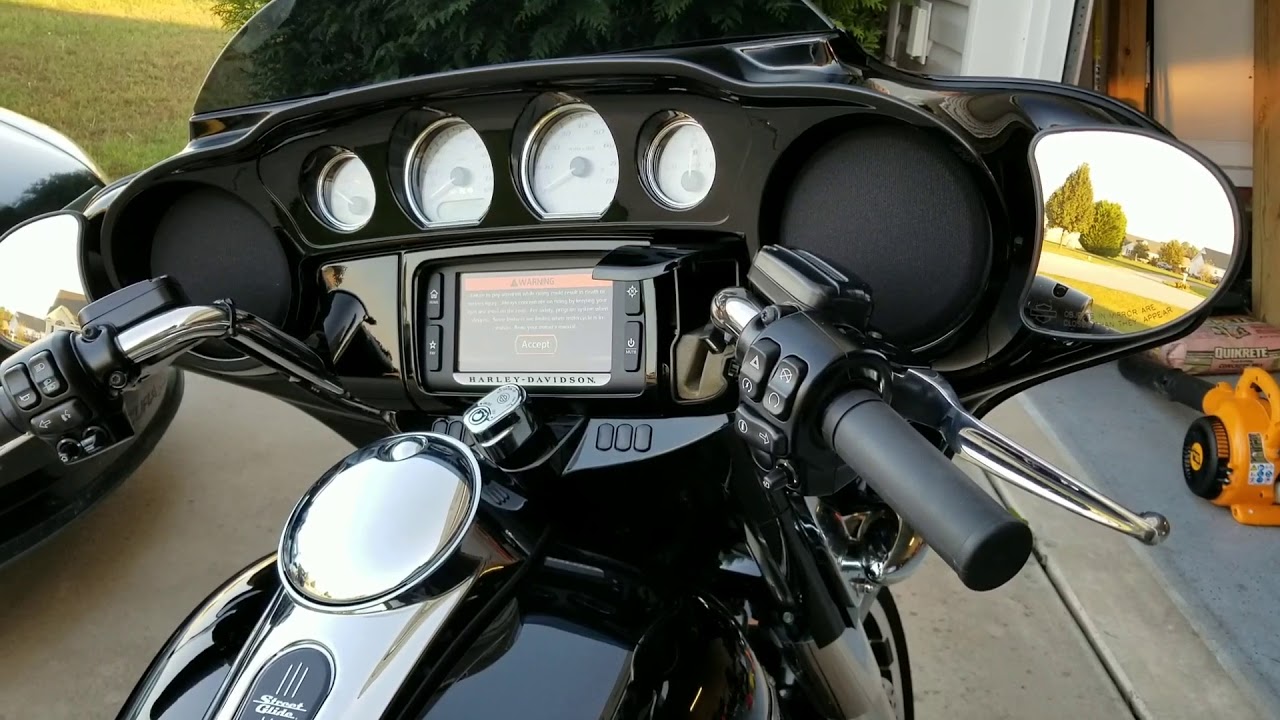

Understanding the Twist Grip Sensor (TGS)

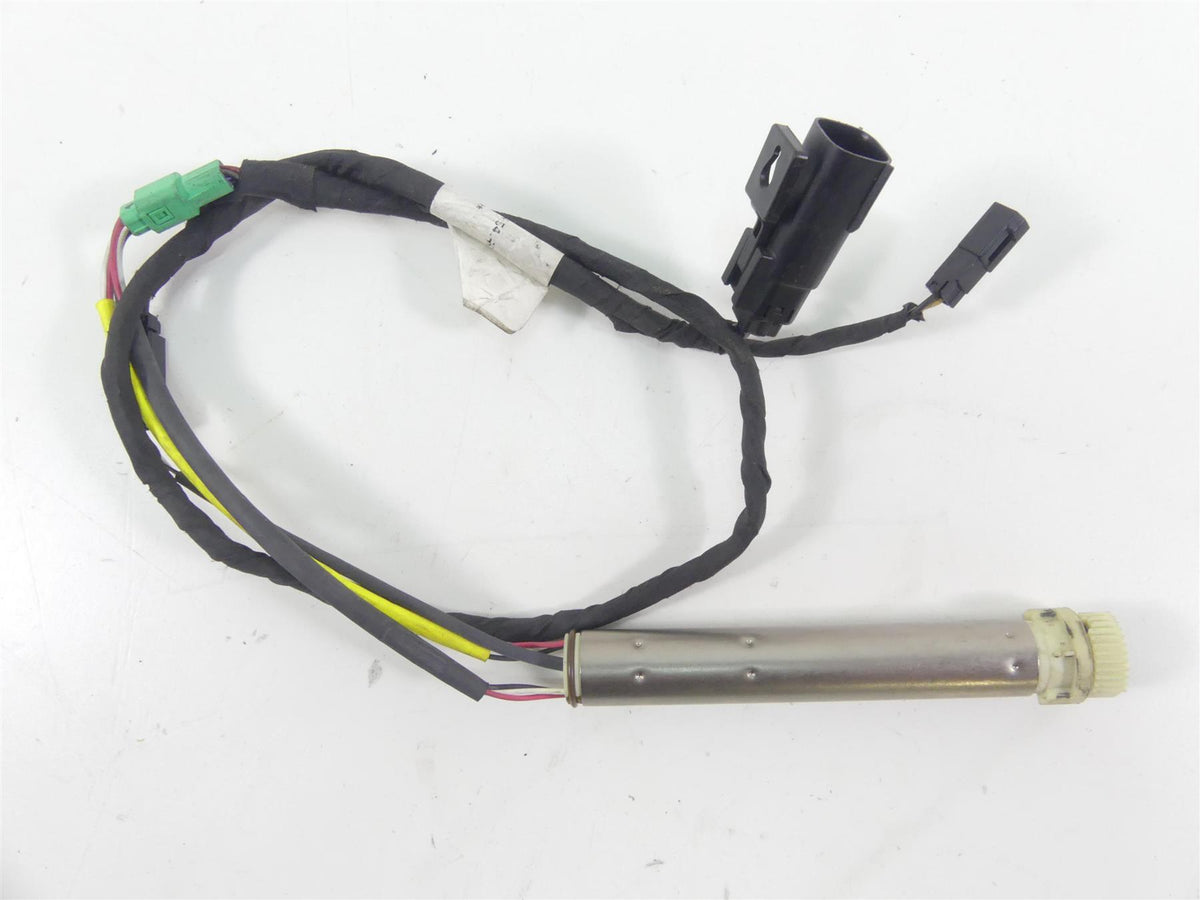

First, let’s get some perspective on the TGS. What even is this thing? Well, in a nutshell, the TGS replaces the traditional throttle cable. Instead of physically pulling a cable to open the throttle body, you're twisting the grip, which then sends an electrical signal to the Electronic Control Module (ECM), aka the brain of your bike. The ECM then tells the throttle body how much to open, and voilà, you go faster. It's all very modern and space-age... until it malfunctions, and then it's just frustrating.

It’s essentially a potentiometer or two (some bikes have dual sensors for redundancy and safety) that changes its resistance as you twist the throttle. This changing resistance is interpreted by the ECM as your desired throttle position. Pretty slick when it works, right?

Why Test Your TGS?

Now, why bother testing it? Well, as I mentioned in my little story, a faulty TGS can cause all sorts of problems, including:

• Engine Stalling: The ECM doesn't know what to do if it's not getting a proper signal, so it just shuts things down.
• Loss of Throttle Response: You twist the grip, but nothing happens. Or maybe it's delayed. Not exactly ideal when you're trying to merge onto the highway.
• Erratic Idle: The engine revs up and down seemingly at random. This can also be scary as it can affect handling.
• Diagnostic Trouble Codes (DTCs): Your bike's computer is telling you something's wrong, and a TGS issue is a common culprit. You'll usually get a light on your dash.

Catching a TGS problem early can save you a lot of headache and potentially prevent a breakdown. Plus, knowing how to test it can empower you to troubleshoot issues yourself, which is always a good feeling.

Tools You'll Need

Alright, let's get down to business. To test your TGS, you'll need a few basic tools:

• Multimeter: A digital multimeter (DMM) is essential for measuring voltage and resistance. Make sure it's a decent one. The cheap dollar store specials aren't going to cut it.
• Service Manual: A service manual for your specific year and model of Harley is invaluable. It will give you the correct wiring diagrams, connector locations, and specifications. Don't even think about skipping this!
• Test Leads: Depending on your multimeter, you might need some extra test leads with alligator clips to make connecting to the TGS connector easier.
• Basic Hand Tools: You'll likely need screwdrivers, wrenches, and maybe some Torx bits to access the TGS connector. Keep a rag around too. You never know what you'll need to clean up!

Step-by-Step Testing Procedures

Okay, now for the meat of the matter. Remember, always consult your service manual for specific instructions for your bike model. These steps are a general guide, and your bike may have slightly different wiring or connector configurations. And be safe! Disconnect the negative terminal of your battery before you begin poking around with electrical components. We don't want any sparks (unless they're intentional!).

Step 1: Locate the TGS Connector

The TGS connector is usually located near the throttle body. On some models, you might have to remove the air cleaner or other components to access it. Refer to your service manual for the exact location. It's usually a small, multi-pin connector.

Step 2: Identify the TGS Wires

Using your service manual's wiring diagram, identify the specific wires for the TGS. You'll typically have wires for:

• 5-Volt Reference Voltage: This is the voltage supplied to the TGS from the ECM.
• Ground: The ground wire.
• Signal Wires: These are the wires that carry the throttle position signal back to the ECM. Many bikes have two.

Make sure you know which wire is which! Connecting your meter to the wrong wire could damage the TGS or the ECM. Seriously, double-check everything.

Step 3: Testing the 5-Volt Reference Voltage

With the ignition switch ON (but engine OFF!), use your multimeter to measure the voltage between the 5-volt reference wire and ground. You should see approximately 5 volts. If you don't, there may be a problem with the ECM or the wiring harness. This is the first and maybe most important step of the whole operation.

Important Note: Some Harleys have a "security" system that cuts power to the TGS if the correct key or PIN isn't used. Make sure your security system is disarmed before testing.

Step 4: Testing the Signal Wires (Resistance Method)

Now, let's test the signal wires. Disconnect the TGS connector from the wiring harness. Set your multimeter to measure resistance (Ohms). Connect the meter leads to the signal wires (one at a time) and the ground wire. Slowly twist the throttle grip from closed to wide open and back again. You should see a smooth change in resistance as you twist the grip. A sudden jump, dead spot, or no change at all indicates a problem with the TGS.

Pay attention to the numbers! Your service manual may provide specific resistance values for different throttle positions. Compare your readings to these values to see if the TGS is within spec. Don't expect the numbers to be exact. But you should be in the general area.

Step 5: Testing the Signal Wires (Voltage Method)

This method requires you to test the TGS while it's connected to the wiring harness and the ignition is ON (engine OFF!). Be very careful when working with live circuits! It also requires very small prongs that can fit into the wire connector. You don't want to damage the connector pins, as this can lead to connection issues in the future.

With the TGS connected, use your multimeter to measure the voltage on each signal wire with respect to ground. Again, slowly twist the throttle grip from closed to wide open. You should see a smooth, gradual change in voltage as you twist the grip. The voltage should typically range from around 0.5 volts at closed throttle to around 4.5 volts at wide open throttle. (These numbers are general, consult your service manual for your specific values)

Look for inconsistencies! If the voltage jumps around erratically or doesn't change at all, the TGS is likely faulty.

Step 6: Checking for Shorts to Ground

Sometimes, the TGS can short to ground, which can also cause problems. To check for this, disconnect the TGS connector. Set your multimeter to measure resistance (Ohms). Connect one meter lead to each signal wire and the other meter lead to a known good ground on the bike frame. You should see infinite resistance (or a very high resistance value). If you see a low resistance value (close to zero), it indicates a short to ground.

Interpreting Your Results

Okay, you've run the tests. Now what? Here's a quick guide to interpreting your results:

• No 5-Volt Reference: Check the wiring harness for breaks or shorts. Also, check the ECM.
• Erratic Resistance or Voltage Readings: Replace the TGS. It's the most common reason for this outcome.
• No Change in Resistance or Voltage: Replace the TGS.
• Short to Ground: Inspect the wiring harness for damage. If the wiring is good, replace the TGS.
• Readings Within Specification: If your readings are within the specifications outlined in your service manual, the TGS is likely good. Look for other potential causes of your problem, such as a faulty throttle body or ECM issue.

Replacing the TGS

If your tests indicate that the TGS is faulty, you'll need to replace it. The replacement process is generally straightforward, but again, refer to your service manual for specific instructions. Here are the general steps:

• Disconnect the Negative Battery Terminal: Safety first!
• Remove the Air Cleaner (if necessary): To access the TGS.
• Disconnect the TGS Connector: The old one.
• Remove the Old TGS: Usually held in place with screws.
• Install the New TGS: Making sure it's properly seated and aligned.
• Connect the TGS Connector: To the new TGS.
• Reinstall the Air Cleaner (if removed):
• Reconnect the Negative Battery Terminal:

After replacing the TGS, you may need to reset the throttle position sensor (TPS) using a diagnostic tool or your bike's built-in self-diagnostic functions. Consult your service manual for the proper procedure.

Final Thoughts

Testing your Harley-Davidson Twist Grip Sensor is a manageable task that can save you time, money, and frustration. By following these steps and using your service manual, you can diagnose TGS problems and potentially fix them yourself. Remember to always prioritize safety and take your time. If you're not comfortable working with electrical systems, it's always best to consult a qualified mechanic. But if you're willing to give it a shot, you might just surprise yourself with what you can accomplish!

Good luck, and happy riding! Oh, and one last thing, invest in a good quality TGS if you end up replacing it. Don't cheap out on this one. After all, it's what connects you to your bike. Take care of it!
