How To Take Battery Out Of Samsung S21

Preliminary Considerations

Attempting to remove the battery from a Samsung Galaxy S21 is not recommended for the average user. The device's construction involves significant adhesive and intricate internal components, increasing the risk of damage to the phone or personal injury if performed incorrectly.

This procedure is intended for skilled technicians with specialized tools and a thorough understanding of smartphone repair. Proceeding without the necessary expertise and equipment can lead to irreversible damage, voiding any existing warranty and potentially rendering the device unusable.

Prior to initiating any repair work, back up all data stored on the Samsung S21 to prevent data loss. Ensure the device is powered off completely to minimize the risk of electrical damage.

Tools Required

Successful battery removal requires specific tools, including:

• Heat gun or heat plate: Used to soften the adhesive securing the back cover.
• Prying tools: Thin, non-marring tools such as plastic spudgers or opening picks to separate the back cover from the frame.
• Suction cup: To create a small gap between the back cover and the frame for inserting prying tools.
• Phillips head screwdriver: For removing internal screws securing components.
• Plastic tweezers: For manipulating delicate components.
• Isopropyl alcohol (90% or higher): To weaken the adhesive.
• Safety glasses: To protect eyes from debris and potential hazards.
• Gloves: To protect hands and provide a better grip.

Using the correct tools is crucial to avoid causing cosmetic or functional damage to the device.

Step-by-Step Procedure

1. Applying Heat to the Back Cover

Apply heat evenly around the edges of the back cover using a heat gun or heat plate. Maintain a safe distance to prevent overheating, which can damage the screen or other internal components. The goal is to soften the adhesive, not to melt it. A temperature of approximately 80-100°C (176-212°F) is generally recommended.

Focus on heating the edges of the phone. Move the heat source in a consistent, circular motion to distribute the heat evenly. Check the temperature periodically to avoid overheating.

2. Creating an Initial Opening

Attach a suction cup to the back cover, near the bottom edge. Gently pull on the suction cup while using a prying tool to create a small gap between the back cover and the frame. This may require multiple attempts and the application of additional heat.

Once a small gap is created, insert a thin plastic opening pick into the gap. This will help to maintain the separation and prevent the adhesive from resealing.

3. Separating the Back Cover

Insert additional opening picks around the perimeter of the phone, working your way along the edges. Slide the picks gently to cut through the adhesive. Apply more heat as needed to soften the adhesive further. Be particularly cautious near the corners, as the adhesive may be stronger in these areas.

Avoid inserting the prying tools too deeply, as this could damage internal components. Focus on slicing through the adhesive rather than forcing the back cover off.

4. Removing the Back Cover

Once the adhesive has been cut around the entire perimeter, carefully lift the back cover. If it still feels stuck in certain areas, reapply heat and use the opening picks to ensure all adhesive is separated.

Note the location of any fingerprint sensor cables or other flex cables connecting the back cover to the phone's main board. Disconnect these cables carefully using a plastic spudger before fully removing the back cover. Failure to do so can result in damage to the cables or connectors.

5. Disconnecting the Wireless Charging Coil and NFC Antenna

The Samsung S21 may have a wireless charging coil and NFC antenna attached to the back cover or internal frame. These components are typically secured with screws or adhesive. Disconnect any connectors or screws before completely removing the back cover.

Use a Phillips head screwdriver to remove any screws securing the wireless charging coil and NFC antenna module. Then, carefully detach the module using a plastic spudger.

6. Removing the Battery Cover

The battery is usually covered by a plastic or metal shield secured with screws. Remove the screws using a Phillips head screwdriver and carefully detach the shield.

Keep track of the screws as you remove them, as they may be of different lengths and sizes. Organize them in a way that will allow you to easily reassemble them in the correct locations.

7. Disconnecting the Battery Connector

Locate the battery connector on the motherboard. Use a plastic spudger to gently pry the connector upwards, disconnecting it from the board. Avoid using metal tools, as they can short-circuit the board.

Ensure the connector is fully disconnected before proceeding. A partially disconnected connector can cause intermittent power issues.

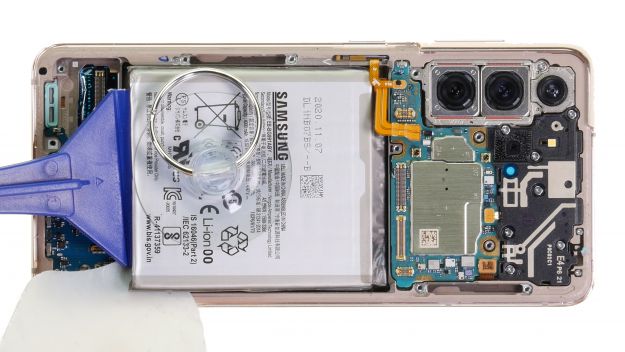

8. Removing the Battery

The battery is secured to the frame with strong adhesive. Use a plastic spudger or a thin, non-metallic tool to carefully pry the battery from the frame. Avoid puncturing or bending the battery, as this can be dangerous and could cause it to leak or catch fire.

If the adhesive is too strong, apply a small amount of isopropyl alcohol (90% or higher) to the edges of the battery to soften the adhesive. Allow the alcohol to penetrate for a few minutes before attempting to pry the battery again.

Once the adhesive has been sufficiently softened, carefully lift the battery from the frame. Avoid using excessive force.

Reassembly

To reassemble the device, follow the steps in reverse order. Use new adhesive to secure the back cover and other components. Ensure all connectors are properly seated and all screws are tightened securely.

Before fully reassembling the device, power it on to test that the new battery is working correctly. If the phone does not power on, check all connections and ensure the battery is properly seated.

Important Considerations for Reassembly:

• Apply new adhesive to the back cover for a secure seal.
• Ensure all flex cables are properly connected and seated.
• Tighten all screws to the correct torque specifications (if available).
• Test the device thoroughly after reassembly to ensure all functions are working correctly.

Safety Precautions

Lithium-ion batteries can be dangerous if mishandled. Puncturing, bending, or exposing them to extreme temperatures can cause them to leak, catch fire, or explode.

Always wear safety glasses and gloves when working with lithium-ion batteries. Work in a well-ventilated area and avoid breathing any fumes.

If a battery is damaged or leaking, handle it with extreme care and dispose of it properly according to local regulations. Do not attempt to recharge or reuse a damaged battery.

Conclusion

Removing the battery from a Samsung Galaxy S21 is a complex procedure that requires specialized tools, expertise, and careful attention to detail. The risk of damaging the device or causing personal injury is significant.

Key takeaways:

• This procedure is not recommended for inexperienced users.
• Use the correct tools and follow the steps carefully.
• Take necessary safety precautions when handling lithium-ion batteries.
• Consider seeking professional assistance if you are not comfortable performing this repair yourself.

Prioritizing safety and proper technique is paramount. If unsure, consult a qualified professional for battery replacement services.
