How To Set Kwikdial Sprinkler System

Operating a Kwikdial sprinkler system effectively can significantly impact the health and appearance of your lawn and garden. Understanding how to program and adjust your Kwikdial controller will ensure proper watering, saving water and money in the long run. Here's a step-by-step guide to help you master your Kwikdial sprinkler system.

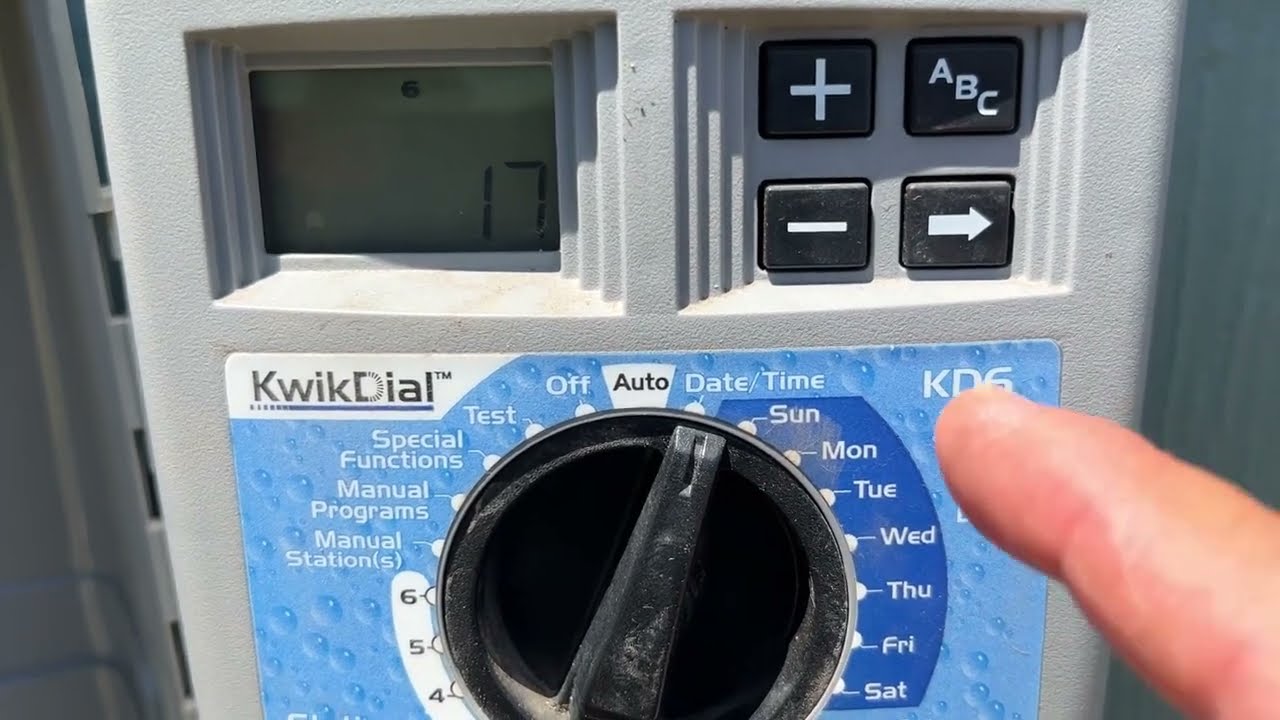

Understanding the Kwikdial Interface

Before diving into programming, familiarize yourself with the key components of your Kwikdial controller. These typically include a dial, buttons for specific functions, and a display screen.

• The Dial: This is usually the primary method for selecting different functions and programs.
• Buttons: These might include buttons for manual operation, rain delay, or specific programming options.
• Display Screen: This shows the current settings, time, and other relevant information.

Consult your Kwikdial manual for a precise diagram and explanation of each element on your specific model. This will prevent confusion and ensure you're pressing the correct buttons.

Setting the Current Date and Time

Correctly setting the date and time is crucial for the sprinkler system to operate on schedule. Follow these general steps, but always refer to your manual for specific instructions:

1. Turn the dial to the "Set Time" or similar position.
2. Use the "+" and "-" buttons (or similar navigation buttons) to adjust the hour.
3. Press the "Next" or "Enter" button to move to the minutes setting.
4. Use the "+" and "-" buttons to adjust the minutes.
5. Press the "Next" or "Enter" button to move to setting the year, month and date if prompted.
6. Use the "+" and "-" buttons to adjust the year.
7. Press the "Next" or "Enter" button to move to the month.
8. Use the "+" and "-" buttons to adjust the month.
9. Press the "Next" or "Enter" button to move to the day.
10. Use the "+" and "-" buttons to adjust the day.
11. Turn the dial back to the "Auto" or "Run" position.

Some models might have a dedicated button for setting the time; if so, consult the manual for the exact procedure.

Programming Your Watering Schedule

This is where you define when and how long your sprinklers will run. Kwikdial systems typically offer multiple programs (A, B, C, etc.) to accommodate different watering needs for various zones.

Selecting a Program

Turn the dial to the program selection position (e.g., "Program A," "Set Program"). Choose the program you want to configure. For lawns, Program A is often sufficient. Gardens might require a separate program.

Setting the Start Time

This determines when the watering cycle begins. Consider early morning watering to minimize evaporation.

1. With the dial on the selected program, locate the "Start Time" setting.
2. Use the "+" and "-" buttons to set the desired hour.
3. Press the "Next" or "Enter" button to move to the minutes setting.
4. Use the "+" and "-" buttons to set the desired minutes.
5. Press the "Next" or "Enter" button to confirm.

Setting the Run Time (Duration) for Each Zone

This is the amount of time each zone will water. Consider soil type, plant needs, and sprinkler head type when determining run times. Sandy soil requires shorter, more frequent watering, while clay soil needs longer, less frequent watering.

1. After setting the start time, the display should automatically move to the zone selection (e.g., "Zone 1"). If not, look for a "Station" or "Zone" setting.
2. Use the "+" and "-" buttons to set the watering duration (in minutes) for Zone 1.
3. Press the "Next" or "Enter" button to move to the next zone (e.g., "Zone 2").
4. Repeat step 2 for each zone connected to your controller.

Setting Watering Frequency

This dictates how often the sprinklers will run. Kwikdial controllers typically offer options for watering on specific days of the week or at set intervals (e.g., every other day, every third day).

1. After setting the run times for all zones, look for a "Watering Days," "Schedule," or "Frequency" setting.
2. Specific Days: If you want to water on specific days (e.g., Monday, Wednesday, Friday), use the "+" and "-" buttons to select the desired days. An indicator (e.g., a checkmark or highlighted letter) will usually appear for selected days.
3. Interval Watering: If you prefer interval watering (e.g., every other day), select the appropriate interval option and set the desired interval length.

Be mindful of local watering restrictions and adjust your schedule accordingly.

Manual Operation

Kwikdial controllers usually have a manual mode for testing zones or providing supplemental watering.

1. Turn the dial to the "Manual," "Manual Run," or "Test" position.
2. The display might prompt you to select a zone. Use the "+" and "-" buttons to choose the desired zone.
3. Enter the run time you want for the manual operation.
4. Press the "Run" or "Start" button. The selected zone will water for the specified duration.

Remember to return the dial to the "Auto" or "Run" position after manual operation to resume your programmed schedule.

Rain Delay

The rain delay function pauses the watering schedule for a specified period, preventing overwatering during or after rainfall. This feature is valuable for water conservation.

1. Locate the "Rain Delay" button or setting on your controller.
2. Press the button or select the setting.
3. Use the "+" and "-" buttons to set the desired delay period (e.g., 24 hours, 48 hours, 72 hours).
4. Press the "Enter" or "Confirm" button.

The controller will display the remaining rain delay time and automatically resume the programmed schedule after the delay expires.

Seasonal Adjustments

As the seasons change, adjust your watering schedule to match the changing needs of your plants. Reduce watering frequency and duration during cooler months and increase them during hotter, drier periods.

Regularly monitor your lawn and garden for signs of overwatering or underwatering and make necessary adjustments to your Kwikdial settings.

Troubleshooting Common Issues

• Sprinklers not turning on: Check the power supply to the controller, ensure the dial is in the "Auto" or "Run" position, and verify that the zone valve wires are securely connected.
• Sprinklers not turning off: Inspect the zone valve for debris or damage, and ensure the controller is programmed correctly.
• Incorrect watering times: Double-check the start times, run times, and watering frequency settings.

Practical Tips for Daily Life

* Water deeply and infrequently: Encourage deep root growth, making your lawn more drought-tolerant. * Water in the early morning: Minimize water loss due to evaporation. * Adjust watering based on weather conditions: Use the rain delay feature after rainfall. * Maintain your sprinkler heads: Replace broken or clogged heads for even water distribution. * Regularly inspect your system for leaks: Repair leaks promptly to conserve water. * Use a rain sensor or soil moisture sensor: Automate watering adjustments based on actual conditions.

Kwikdial Sprinkler System Checklist

1. Set the current date and time.
2. Program watering schedule (start time, run time, frequency) for each zone.
3. Test each zone manually.
4. Enable rain delay as needed.
5. Adjust seasonal settings as required.
6. Regularly inspect and maintain the system.
