How To Rebuild A Lawn Mower Carburetor

A sputtering lawn mower on a Saturday morning is a common nuisance. Often, the culprit is a dirty or malfunctioning carburetor. While a professional repair is an option, rebuilding the carburetor yourself can save money and provide a deeper understanding of your machine’s inner workings. This knowledge translates directly to practical problem-solving skills applicable to other small engines and even general mechanical understanding.

Disassembly and Inspection

Begin by gathering your tools: a carburetor rebuild kit specific to your mower model, a set of screwdrivers (both flathead and Phillips), pliers, a small container for soaking parts, carburetor cleaner, compressed air, and safety glasses.

First, disconnect the spark plug wire to prevent accidental starting. Then, carefully remove the air filter assembly and detach the fuel line from the carburetor. Have a small container ready to catch any spilled fuel.

Next, detach the carburetor from the engine. This usually involves loosening a few bolts or screws and disconnecting any linkage connected to the throttle and choke. Take pictures as you disassemble; these visual aids are invaluable during reassembly.

Place the carburetor on a clean workbench. Now, the disassembly begins. Remove the fuel bowl at the bottom of the carburetor. This is often held in place by a single bolt or screw. Carefully remove the bolt and gently tap the fuel bowl to loosen it. Be mindful of any O-rings or gaskets between the fuel bowl and the carburetor body.

Inside the fuel bowl, you'll find the main jet. Unscrew and remove the main jet using a small screwdriver. Note its position and any associated washers or seals. Now, look for the float and needle valve. The float regulates the fuel level in the fuel bowl. Gently push out the pin holding the float in place and remove the float and needle valve.

Remove any other accessible jets or screws from the carburetor body. These might include an idle jet or adjustment screws. Keep track of the location of each part as you remove it.

Now, examine each part carefully. Look for signs of wear, corrosion, or blockage. Pay close attention to the jets. They are tiny and easily clogged. Check the needle valve for any damage to its tip. Inspect the float for any cracks or leaks. A damaged float will not function properly.

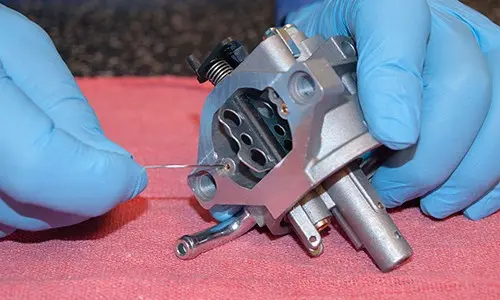

Examine the carburetor body itself. Look for any cracks or damage. Check the passages for any blockages. Use a small wire or carburetor cleaner to clear any obstructions. Wear safety glasses when working with carburetor cleaner.

Cleaning and Rebuilding

Soak all the metal parts (excluding rubber or plastic components) in carburetor cleaner for at least 30 minutes. This will help to dissolve any built-up varnish or grime. After soaking, use a soft brush or pipe cleaner to scrub away any remaining residue. Pay close attention to the jets and passages.

Use compressed air to blow out all the passages and jets in the carburetor body. This will ensure that they are clear of any debris. Hold the carburetor body securely while using compressed air, as the pressure can be quite strong.

Once all the parts are clean and dry, begin reassembling the carburetor using the new parts from the rebuild kit. Start by installing the new needle valve and float. Insert the needle valve into its seat and then install the float, securing it with the pin. Ensure the float moves freely.

Next, install the main jet and any other jets or screws that you removed. Tighten them securely, but do not overtighten. Overtightening can damage the carburetor body.

Replace the fuel bowl gasket or O-ring with a new one from the rebuild kit. This will ensure a proper seal and prevent fuel leaks. Carefully attach the fuel bowl to the carburetor body and tighten the bolt or screw.

Reconnect any linkage to the throttle and choke. Refer to the pictures you took during disassembly to ensure that everything is connected correctly.

Finally, reinstall the carburetor onto the engine. Secure it with the bolts or screws and reconnect the fuel line. Reattach the air filter assembly.

Testing and Adjustment

Reconnect the spark plug wire. Now, start the lawn mower. It may take a few tries for the engine to start, as the fuel lines need to be primed.

Once the engine starts, listen for any unusual noises or vibrations. If the engine is running rough, you may need to adjust the idle speed or mixture screws. Consult your lawn mower's owner's manual for the proper adjustment procedure.

The idle speed screw typically adjusts the engine's idle speed. Turning it clockwise increases the speed, while turning it counterclockwise decreases it. Adjust the screw until the engine idles smoothly without stalling.

The mixture screw controls the air-fuel mixture. Turning it clockwise leans the mixture (less fuel), while turning it counterclockwise enriches the mixture (more fuel). Adjust the screw until the engine runs smoothly and efficiently. A good starting point is to turn the screw in until it seats lightly, then back it out 1 1/2 turns.

After making any adjustments, test the lawn mower by cutting some grass. Listen to how the engine sounds under load. If it bogs down or stalls, you may need to make further adjustments to the mixture screw.

Understanding how the carburetor works and being able to rebuild it yourself provides more than just a fix for a lawn mower. It provides a foundational understanding of small engine mechanics, applicable to other equipment like snow blowers, generators, and even some power tools. Moreover, the problem-solving skills honed in this process are transferable to numerous areas of life, from basic home repairs to more complex mechanical challenges.

Practical Tips and Considerations

• Cleanliness is Key: A clean workspace and clean parts are essential for a successful carburetor rebuild. Dirt and debris can easily clog the tiny passages in the carburetor, causing it to malfunction.
• Use the Right Tools: Using the correct tools will prevent damage to the carburetor and make the job easier. Avoid using excessive force, as this can strip threads or break delicate parts.
• Take Your Time: Rebuilding a carburetor is not a race. Take your time and pay attention to detail. Rushing the process can lead to mistakes and prevent the carburetor from functioning properly.
• Consult the Manual: Your lawn mower's owner's manual may contain specific instructions for rebuilding the carburetor. Refer to it for detailed information and diagrams.
• Record the process: Taking pictures or videos during disassembly will help you remember where each part goes and how it fits.

Addressing Common Issues

• Engine won't start: This can be caused by a clogged main jet or a faulty needle valve.
• Engine runs rough: This can be caused by a dirty carburetor, an incorrect air-fuel mixture, or a vacuum leak.
• Engine stalls at idle: This can be caused by a low idle speed or a lean air-fuel mixture.
• Engine bogs down under load: This can be caused by a rich air-fuel mixture or a clogged air filter.

Carburetor Rebuild Checklist:

Use this checklist as a guide to ensure a successful carburetor rebuild:

1. Gather tools and supplies (carburetor rebuild kit, screwdrivers, pliers, carburetor cleaner, compressed air, safety glasses).
2. Disconnect the spark plug wire.
3. Remove the air filter assembly and fuel line.
4. Detach the carburetor from the engine.
5. Disassemble the carburetor, noting the location of each part.
6. Inspect each part for wear, corrosion, or blockage.
7. Soak metal parts in carburetor cleaner and scrub away any residue.
8. Blow out all passages and jets with compressed air.
9. Reassemble the carburetor using new parts from the rebuild kit.
10. Reconnect any linkage to the throttle and choke.
11. Reinstall the carburetor onto the engine.
12. Reconnect the fuel line and air filter assembly.
13. Reconnect the spark plug wire.
14. Start the engine and adjust the idle speed and mixture screws as needed.
15. Test the lawn mower by cutting some grass.

By following these steps and guidelines, you can successfully rebuild your lawn mower carburetor and keep your lawn mower running smoothly for years to come. This skill is not just for lawn mowers; it empowers you to tackle other small engine repairs with confidence, saving you time and money.
