Measuring Your PTO Shaft for a Bush Hog: A Step-by-Step Guide

Proper PTO shaft length is crucial for safe and efficient operation of your rotary cutter, commonly known as a bush hog. An incorrectly sized shaft can lead to equipment damage or, in extreme cases, injury. This guide provides a detailed procedure for accurately measuring your PTO shaft when connecting it to a tractor and implement.

Preparation

Ensure both the tractor and rotary cutter are on a level surface. Disengage the PTO and shut off the tractor engine. Engage the parking brake to prevent any movement. Gather the necessary tools: a measuring tape (preferably a steel tape), a marker or pen, and a helper if possible.

Initial Positioning

Position the rotary cutter behind the tractor, aligning it as if it were ready to be connected. The implement should be at the desired operating height. This is essential because the distance between the tractor PTO stub and the implement input shaft changes with the implement's height.

Must Read

Measuring the Required Length

This method requires measuring the distance between the tractor PTO stub shaft and the implement's input shaft, simulating operational conditions. This will then be used to determine the correct overall PTO shaft length.

Step 1: Determine Connection Points. Identify the center of the tractor's PTO stub shaft and the center of the implement's input shaft. These are your reference points for the measurement.

Step 2: Measure the Distance. Using the measuring tape, measure the distance between these two center points. Ensure the tape measure runs parallel to the intended PTO shaft path. This measurement is critical for determining the correct PTO shaft length. Note this measurement; we'll refer to it as the "closed length".

Step 3: Measure the Overlap. The PTO shaft, when fully extended, needs sufficient overlap to function safely. A general rule is to ensure a minimum overlap of at least one-third of the shaft's working length. However, some PTO shafts, especially those with shear bolts or slip clutches, may require a different minimum overlap specified by the manufacturer. Consult your PTO shaft's manual for specific overlap requirements.

How-to Measure and Cut a Tractor PTO Shaft with Hamiltonville Farm

Determining the Correct PTO Shaft Length

The 'closed length' measurement you obtained in the previous steps isn't directly the PTO shaft length you need to purchase. You'll need to account for the yokes and the required overlap.

Step 1: Measure the Yoke Lengths. Measure the length of each yoke, from the end that connects to the PTO stub or implement input shaft to the center of the universal joint (U-joint). Call these measurement Y1 (tractor side) and Y2 (implement side).

Step 2: Calculate the Minimum PTO Shaft Length. To find the approximate minimum PTO shaft length, subtract the yoke lengths from the closed length measurement: Minimum PTO Shaft Length = Closed Length - Y1 - Y2.

Step 3: Account for Overlap. Now factor in the minimum overlap required for safe operation. If you don't have the manufacturer's specification, a general rule of thumb is to add approximately 4 inches to the calculated minimum length. This value may need to be increased for higher horsepower applications or if the shaft manufacturer specifies a greater overlap. The new value is PTO Shaft Length = Minimum PTO Shaft Length + Overlap.

how to measure and cut a tractor pto shaft Manufacturer, Supplier

Important Considerations:

Telescoping Sections: The PTO shaft consists of two telescoping halves. Ensure that these halves can slide freely along their entire length. Any binding or resistance will negatively impact performance and could lead to damage.

Shielding: Never operate equipment with damaged or missing PTO shaft shielding. Shielding is critical for operator safety.

Shear Bolts/Slip Clutches: PTO shafts equipped with shear bolts or slip clutches require specific maintenance. Replace shear bolts with the correct grade and size specified by the manufacturer. Periodically inspect and adjust slip clutches according to the manufacturer's recommendations.

Selecting the Correct PTO Shaft

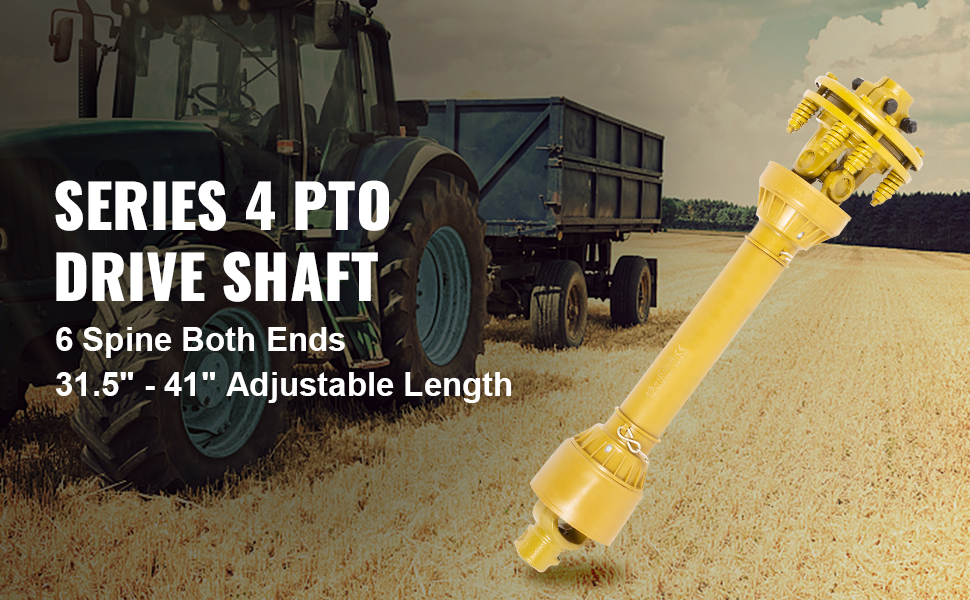

Once you have calculated the required PTO shaft length, you can select a suitable replacement. PTO shafts are typically categorized by their overall length (in inches) and their series number (e.g., Series 4, Series 6). The series number indicates the shaft's power rating and the size of the U-joints. Consult your equipment manuals or a knowledgeable dealer to determine the correct series number for your tractor and implement.

When purchasing a new PTO shaft, always verify that it meets or exceeds the horsepower requirements of your tractor and implement. Using an undersized PTO shaft can result in premature failure and potential damage.

Cutting a PTO Shaft to Length (When Necessary)

In some cases, you may need to shorten a PTO shaft to achieve the correct length. This should be done with caution and precision.

How to Identify an Agricultural PTO Driveline Article | Royal Brass & Hose

Step 1: Calculate the Amount to Cut. Based on your measurements, determine how much needs to be removed from each telescoping half of the shaft. Aim to remove equal amounts from each half to maintain balance.

Step 2: Disassemble the Shaft. Separate the two halves of the PTO shaft. Be sure to note the orientation of the yokes before disassembly.

Step 3: Cut the Shafts. Use a metal-cutting saw (e.g., a band saw or abrasive chop saw) to cut the telescoping tubes to the desired length. Make clean, square cuts.

Step 4: Deburr and Clean. After cutting, thoroughly deburr the cut edges of the tubes. Remove any metal shavings or debris from inside the tubes.

how to determine pto shaft series Manufacturer, Supplier, Factory

Step 5: Reassemble and Grease. Reassemble the PTO shaft, ensuring that the yokes are properly aligned. Apply grease to the telescoping tubes to ensure smooth operation.

Important Note: Cutting a PTO shaft weakens it. If you are unsure about your ability to perform this task safely and accurately, consult a qualified mechanic.

Safety Precautions

Working with PTO shafts involves inherent risks. Always observe the following safety precautions:

Read the Manuals: Familiarize yourself with the operating and maintenance instructions for both your tractor and rotary cutter.

Protective Gear: Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection.

Shielding: Ensure that all PTO shaft shields are in good condition and properly installed. Never operate equipment with damaged or missing shields.

Clear the Area: Before engaging the PTO, ensure that the area around the equipment is clear of people and obstructions.

Disengage Before Maintenance: Always disengage the PTO and shut off the tractor engine before performing any maintenance or adjustments.

Key Takeaways

Measuring your PTO shaft accurately is vital for the safe and efficient operation of your rotary cutter. Remember these key points:

Measure the 'closed length' with the implement at the intended operating height.

Account for the length of the yokes and the required overlap.

Select a PTO shaft that meets or exceeds the horsepower requirements of your equipment.

Prioritize safety by wearing appropriate PPE and ensuring that all shields are in place.

Consult your equipment manuals or a qualified mechanic if you have any questions or concerns.
