How To Make A Fidget Spinner On Tinkercad

Okay, let's be honest. Who didn't have a fidget spinner glued to their hand back in the day? Remember those swirling bits of plastic that somehow kept us from chewing our nails during boring meetings or helped us concentrate during that really long documentary about... something? (Was it about bees? Probably about bees.) Well, the hype might have died down, but the fidgety spirit lives on! And what's cooler than having a store-bought spinner? Designing and 3D printing your own, of course!

This isn't some super-complicated engineering project that requires a degree in astrophysics. We're going to dive into making a custom fidget spinner using Tinkercad, a free and ridiculously user-friendly online 3D design tool. Think of it like Lego, but on your computer. Seriously, if you can build a semi-stable tower of blocks, you can totally nail this.

Why Bother? (Besides Pure Awesome-ness)

You might be thinking, "Meh, why bother? I can buy a spinner for, like, five bucks." And you're right! But where's the fun in that? Designing your own fidget spinner isn't just about getting a new toy; it's about:

• Unleashing your creativity: Want a spinner shaped like a tiny dragon? A miniature slice of pizza? Go for it! The only limit is your imagination (and maybe the laws of physics, but we can bend those a little bit).
• Learning a new skill: Tinkercad is a gateway drug to the amazing world of 3D design. You might start with a fidget spinner and end up designing your own phone case, custom chess pieces, or even replacement parts for your appliances. (Okay, maybe not the last one, but you get the idea!)
• Making something truly unique: Stand out from the crowd with a spinner that no one else has. Be the envy of all your fidgety friends!
• Boosting your brainpower: Seriously! Working with 3D design tools challenges your spatial reasoning and problem-solving skills. It's like giving your brain a mini-workout while you're having fun.

Getting Started: Tinkercad Basics

First things first, head over to Tinkercad.com and create a free account. Don't worry, it's quick and painless. Once you're logged in, you'll be greeted by your dashboard, which is like your personal creative playground.

Now, let's familiarize ourselves with the basics:

• The Workplane: This is your virtual table where you'll build your spinner. Think of it as a digital version of your desk.
• Shapes: On the right side of the screen, you'll find a treasure trove of shapes: boxes, cylinders, spheres, and more. These are the building blocks of your designs.
• Moving and Resizing: Click on a shape to select it. You'll see little white squares and cones appear around it. Drag the squares to change the size of the shape, and drag the cone to move it up or down. It's all very intuitive.
• Grouping: This is your secret weapon! Select multiple shapes by holding down the Shift key and clicking on them. Then, click the "Group" button (it looks like two shapes merging) to combine them into a single object. This is how you'll create complex shapes from simpler ones.

Building the Spinner: Step-by-Step

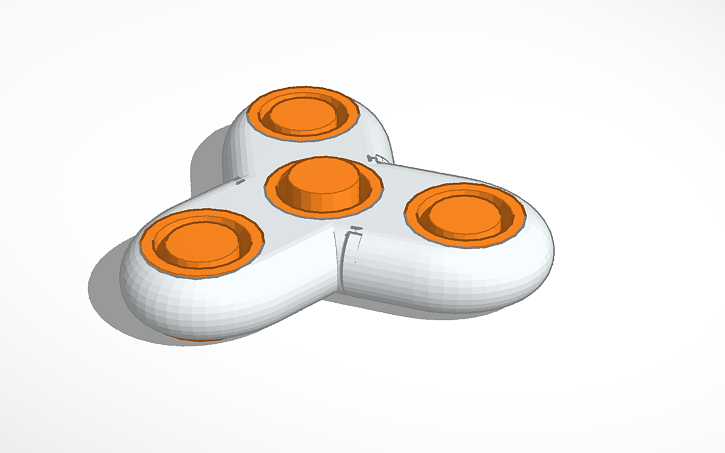

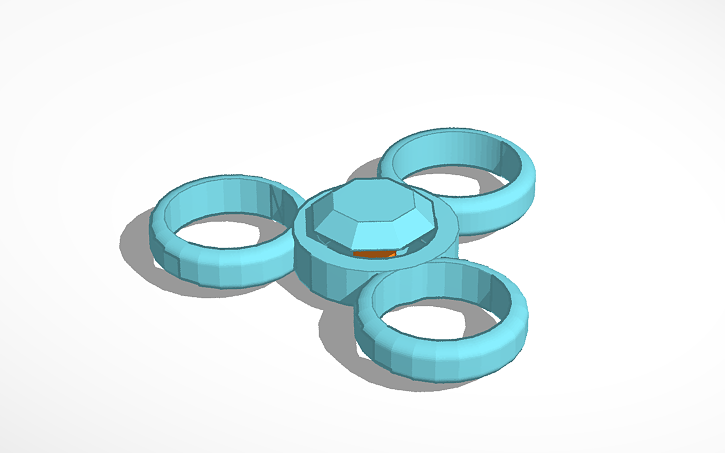

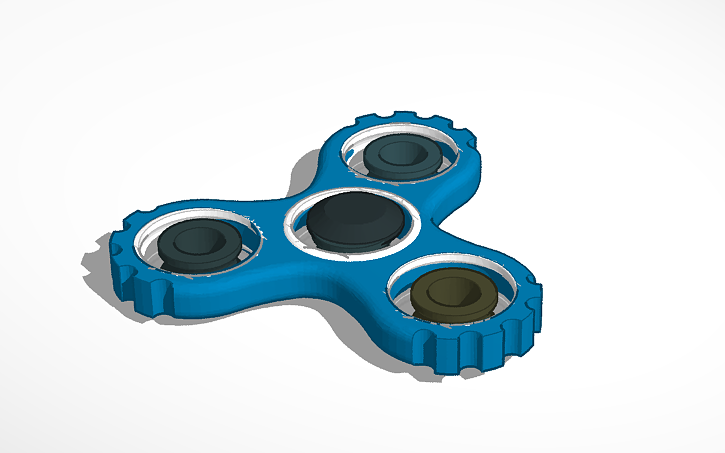

Alright, let's get down to the nitty-gritty and build our fidget spinner! We'll start with a classic three-lobed design, but feel free to get creative and modify it to your liking.

Step 1: The Central Bearing Holder

This is the most important part! The bearing needs to fit snugly in the center. We'll use a cylinder for this.

1. Drag a cylinder from the shapes panel onto the workplane.
2. Resize the cylinder to match the outer diameter of your bearing. This is crucial! If you don't have a bearing handy, a common size is around 22mm. So, set the diameter to 22mm. You can do this by clicking on the cylinder and typing "22" in the boxes that appear.
3. Adjust the height of the cylinder to around 7mm. This will give the bearing enough room to sit comfortably.

Step 2: Creating the Holes for the Bearing

Now we need to make a hole inside the cylinder for the bearing to actually, you know, fit.

1. Drag another cylinder onto the workplane.
2. This time, make it a "hole" by clicking the "Hole" option in the Inspector panel (the panel that appears when you select a shape). It will turn transparent.
3. Resize the "hole" cylinder to match the inner diameter of your bearing. This is usually around 8mm. So, set the diameter to 8mm.
4. Make the height of the hole cylinder slightly taller than the main cylinder (around 8mm). This ensures that the hole goes all the way through.
5. Center the "hole" cylinder inside the main cylinder. Select both cylinders, click the "Align" button (it looks like a little graph), and then click the center dots to align them horizontally and vertically.
6. Group the two cylinders together. This will cut the hole out of the main cylinder. You should now have a cylinder with a hole in the middle!

Step 3: Adding the Lobes

Now for the fun part! Let's add the arms, or lobes, to our spinner.

1. Drag three cylinders onto the workplane. These will be the weights on the end of each lobe.
2. Resize each cylinder to your liking. A diameter of around 15mm and a height of 7mm works well.
3. Drag three smaller cylinders, this time "holes" onto the workplane.
4. Resize the "hole" cylinders. Diameter of 8mm and 8mm height.
5. Center each "hole" cylinder inside each bigger cylinder. Select both cylinders, click the "Align" button (it looks like a little graph), and then click the center dots to align them horizontally and vertically.
6. Group each two cylinders together. This will cut the hole out of the bigger cylinders. You should now have three cylinders with holes in the middle!
7. Now, we need to position these cylinders around the central bearing holder. Rotate them 120 degrees apart. You can do this by clicking on a cylinder and dragging the curved arrow that appears.
8. Now to add the arms. Drag three rectangles onto the workplane. A width of 3mm, height of 7mm and length of 30mm will do fine.
9. Rotate each rectangle to align it with the cylinders.
10. Position the rectangles to connect the center to the cylinder weights.
11. Group the whole thing together! Select all the objects and click the "Group" button. Now you have a basic fidget spinner!

Step 4: Smoothing and Refining

Our spinner looks a bit blocky, doesn't it? Let's smooth it out a bit.

1. You can adjust the "segments" of the cylinders in the Inspector panel to make them smoother. Higher segments = smoother curves.
2. Add fillets by importing a rounded corner to each part of the spinner to provide more confort when being handled.
3. Consider making the arms wider.
4. Consider making the end of each lobe heavier.
5. Experiment with different shapes and sizes!

Step 5: Exporting for 3D Printing

Congratulations! You've designed your fidget spinner! Now, let's get it ready for 3D printing.

1. Click the "Export" button in the top right corner.
2. Select ".STL" as the file format. This is the standard format for 3D printing.
3. Save the file to your computer.

Printing Your Spinner: Getting it Physical

Now you have an STL file! You have a couple of options for turning it into a real, tangible fidget spinner:

• Your own 3D printer: If you're lucky enough to have your own 3D printer, simply load the STL file into your slicing software, adjust the settings (layer height, infill, etc.), and start printing! Experiment with different materials and colors to create unique spinners.
• A 3D printing service: If you don't have a printer, no problem! There are many online 3D printing services that will print your design and ship it to you. Just upload the STL file, choose your material and color, and place your order.

Beyond the Basics: Level Up Your Spinner

Once you've mastered the basics, the possibilities are endless! Here are some ideas for taking your fidget spinner designs to the next level:

• Custom shapes: Instead of cylinders, use other shapes like stars, hearts, or even miniature versions of your favorite characters.
• Text and logos: Add your name, initials, or a cool logo to your spinner.

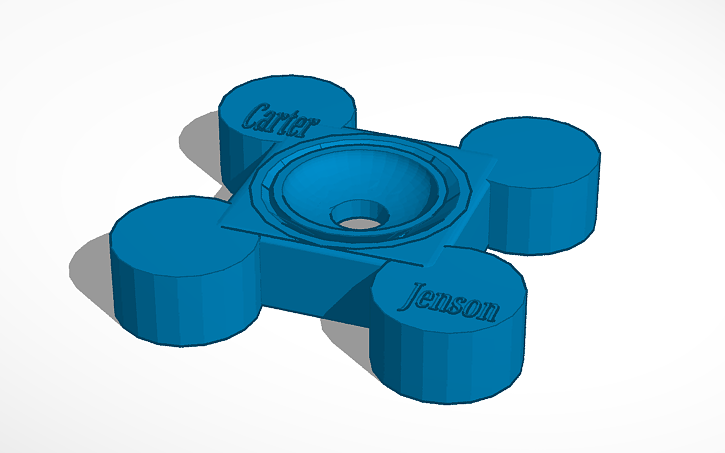

• More complex designs: Experiment with more intricate shapes and patterns. Try creating a spinner with four or five lobes, or even a gear-shaped spinner.
• Different materials: Try printing your spinner in different materials, like flexible filaments for a bendy spinner or metal filaments for a heavier, more premium feel.

Remember, the most important thing is to have fun and experiment! Don't be afraid to try new things and see what you can create. After all, it's just a fidget spinner. If it doesn't turn out perfect, you can always design another one!

So go forth and create! Unleash your inner designer and make a fidget spinner that's as unique as you are. And who knows, maybe you'll even start the next fidget spinner craze!
