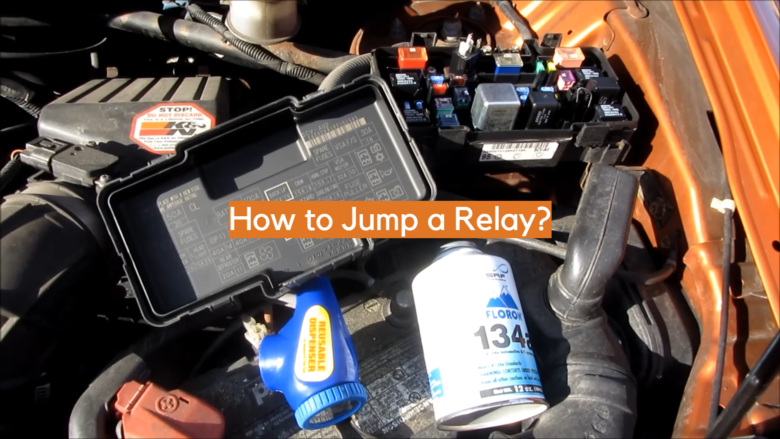

How To Jump A Relay With A Paperclip

Alright, so you’re in a bind, huh? Some gizmo of yours isn't working right, and you suspect it's the relay. And you, being the resourceful human you are, are wondering, "Can I really jump a relay with a paperclip?" Well, buckle up buttercup, because the answer is... maybe! (with a HUGE asterisk). Let's talk about it.

First things first: disclaimer time! I'm not responsible if you accidentally turn your toaster into a time machine or fry your motherboard. Seriously, messing with electronics can be tricky. Safety first, kids! Always unplug the device before you go poking around. And if you’re not comfy with this stuff, maybe call a professional. Just sayin'.

Okay, with that out of the way, let’s get down to the nitty-gritty. What exactly are we talking about when we say "jump a relay?" Basically, we're talking about bypassing the relay altogether. A relay, in case you're not a circuit wizard, is like an electrical switch that's controlled by another electrical circuit. Think of it as a tiny electrical valet, flipping switches on command.

Why would you want to jump it? Well, maybe the relay contacts are corroded, or the coil inside is fried. Maybe it just clicks but doesn't actually, you know, do anything. Sometimes they get stuck, like a grumpy old man refusing to move from his recliner.

So, the paperclip. Our trusty, bendy, metallic friend. Can it be the hero we need? Possibly. But let’s be clear: this is a temporary fix, a troubleshooting technique, not a permanent solution. It's like using duct tape on a car – it might hold things together for a bit, but you're gonna want to get it properly fixed eventually.

What You'll Need (Besides the Obvious)

Okay, so you’ve got your paperclip. Great! Now, let's gather a few more things to make this whole endeavor a little less… chaotic.

• A multimeter. This is your best friend for diagnosing electrical problems. If you don't have one, consider borrowing one. It's like a doctor's stethoscope for circuits.
• The schematic for the device you're working on. This will tell you exactly what the relay is controlling and where it's connected. Trying to guess is like navigating a maze blindfolded.
• Safety glasses. Because sparks aren’t cool when they’re heading for your eyeballs.
• A healthy dose of caution. Remember, electricity is like a grumpy cat: respect it, or it will scratch.

Finding the Right Relay Legs

This is crucial. You can't just randomly stick a paperclip into things and hope for the best. That's how you let the magic smoke out (and nobody wants that!).

1. Identify the Relay: First, find the relay itself. It's usually a small, rectangular component with several pins sticking out. It might be labeled with something like "RL1" or "K1."

2. Consult the Schematic: This is where that schematic comes in handy. Look for the relay symbol and identify the pins that connect to the coil and the contacts. The coil is what activates the relay, and the contacts are the switch that the relay controls.

3. The "Click" Test: If you can power the device, try listening for the relay to click when it's supposed to activate. If it clicks, but the device still doesn't work, the contacts might be the problem.

4. Multimeter Magic: Use your multimeter to test the continuity of the contacts. When the relay is supposed to be activated, the contacts should be closed (showing continuity). If they're not, that's a good sign the relay is faulty.

The Moment of Truth: Jumping the Relay

Okay, deep breaths. This is where we get down to business. Remember, we're only jumping the contacts of the relay, not the coil. Jumping the coil could fry something. Don't do it!

1. Unplug the Device: Seriously, do it. I'm not kidding. Electricity is sneaky.

2. Bend the Paperclip: Shape the paperclip into a "U" shape. You want it to be able to connect the two contact pins of the relay.

3. Insert the Paperclip: Carefully insert the ends of the paperclip into the two contact pins. Make sure they're making good contact. You might need to wiggle it a bit.

4. Power On (Carefully!): Plug the device back in and power it on. Watch closely for any signs of trouble (smoke, sparks, strange noises). If everything seems okay, see if the device now works as it should.

If it works, congratulations! You've successfully jumped the relay. But remember, this is just a temporary fix. You'll need to replace the relay eventually.

What if It Doesn't Work?

Don't despair! Just because jumping the relay didn't fix the problem doesn't mean you're a failure. It just means the problem lies elsewhere. Here are a few things to consider:

• Bad Connections: Check all the wiring and connections in the circuit. A loose wire can cause all sorts of problems.
• Blown Fuse: Relays often protect other components, so check the associated fuses.
• Other Faulty Components: The relay might not be the only problem. Other components in the circuit could be failing as well.
• You Messed Up: Hey, it happens! Double-check your work. Make sure you jumped the right pins. Consult the schematic again.

Replacing the Relay: The Permanent Solution

Okay, so you've confirmed the relay is the problem, and you've temporarily jumped it with a paperclip. Now it's time for a proper fix: replacing the relay.

1. Find the Right Replacement: This is crucial. You need to find a relay that's compatible with your device. Look for the same part number on the old relay. If you can't find the exact same part, you'll need to find a relay with the same specifications (voltage, current, coil resistance, etc.). Datasheets are your friends here!

2. Desoldering the Old Relay: This can be tricky, especially if you're not experienced with soldering. You'll need a soldering iron and some desoldering tools (solder sucker or desoldering wick). Heat up the solder on each pin and remove the old relay. Be careful not to damage the circuit board!

3. Soldering in the New Relay: Insert the new relay into the holes in the circuit board and solder the pins in place. Make sure the solder joints are clean and shiny. A cold solder joint can cause problems later.

4. Test the Device: Once you've replaced the relay, power on the device and see if it works. If everything goes smoothly, you've successfully repaired your device! Pat yourself on the back. You deserve it.

Important Caveats and Things to Remember

Okay, before you go off jumping relays left and right, let's review some important caveats:

• Jumping a relay is a temporary fix: It's not a permanent solution. You need to replace the relay as soon as possible.
• Don't jump the coil: You'll likely fry something. Only jump the contacts.
• Use caution: Electricity can be dangerous. Always unplug the device before working on it.
• If you're not comfortable, don't do it: If you're not experienced with electronics, it's best to call a professional.
• Document everything: Take pictures and notes so you can remember what you did.
• "If it ain't broke, don't fix it": This applies here as well. Don't go messing with relays unless you have a good reason to.

So, there you have it. Jumping a relay with a paperclip: a potentially useful troubleshooting technique, but not a long-term solution. Use it wisely, and remember to always prioritize safety. And hey, if you do manage to fix something with a paperclip, you've earned some serious bragging rights. Now go forth and conquer your electrical gremlins! But, you know, responsibly.

Final Thoughts (Because Why Not?)

Electronics repair can be a fun and rewarding hobby. It's a great way to learn about how things work, and it can save you money in the long run. But it's also important to be aware of the risks involved. Always be careful, and don't be afraid to ask for help when you need it. There are plenty of online resources and communities where you can get advice from experienced electronics enthusiasts.

And remember, sometimes the best solution is to just buy a new one. But where's the fun in that, right? 😉

Good luck, and happy tinkering!
