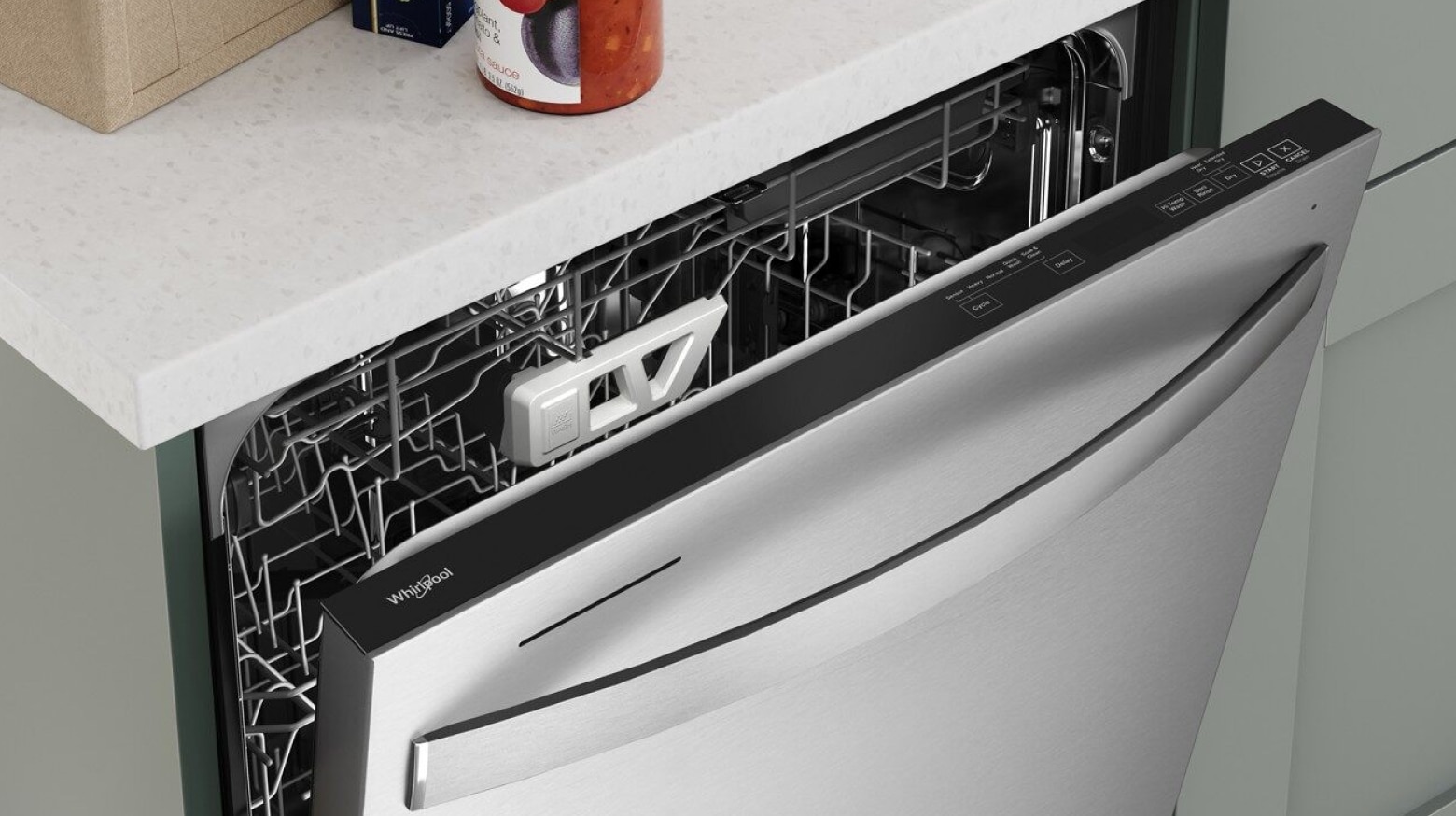

How To Hook Up A Whirlpool Dishwasher

Connecting a Whirlpool dishwasher involves several steps to ensure proper operation and prevent leaks. This article details the procedure for connecting a Whirlpool dishwasher to the water supply, drain, and electrical system. It is strongly recommended to consult the dishwasher's specific installation manual for detailed instructions and safety guidelines that pertain to your particular model. Disconnect power at the breaker before commencing any installation work.

Preparing for Installation

Before beginning the installation process, ensure you have all the necessary tools and materials readily available. This will streamline the process and minimize disruptions. Here’s a checklist:

• Adjustable wrench
• Pliers
• Screwdrivers (Phillips and flathead)
• Measuring tape
• Level
• Safety glasses
• Work gloves
• Teflon tape or pipe sealant
• New water supply line (preferably braided stainless steel)
• Drain hose (if a new one is needed)
• Electrical connectors (wire nuts)

Also, verify that the space where the dishwasher will be installed is appropriately sized and prepared. This includes ensuring the cabinet opening is wide and tall enough to accommodate the dishwasher, and that the floor is reasonably level. The water supply line, drain line, and electrical connection should all be accessible within the adjacent cabinet or wall cavity.

Connecting the Water Supply

The water supply connection is a critical step to avoid leaks and ensure the dishwasher functions correctly. Follow these steps carefully:

Shutting Off the Water Supply

Locate the shut-off valve for the hot water supply that feeds the dishwasher. This valve is typically located under the kitchen sink or in the basement near the water heater. Turn the valve clockwise to completely shut off the water supply. To confirm the water is off, briefly turn on the hot water faucet at the sink to relieve any residual pressure in the line.

Connecting the Water Supply Line

Apply Teflon tape or pipe sealant to the threads of the dishwasher's water inlet valve. This will help create a watertight seal. Connect the new water supply line (ideally a braided stainless steel line for durability and flexibility) to the inlet valve. Hand-tighten the connection, then use an adjustable wrench to tighten it further, approximately another half to three-quarters of a turn. Avoid overtightening, as this can damage the valve or the supply line.

Connect the other end of the water supply line to the hot water supply pipe under the sink. Again, apply Teflon tape or pipe sealant to the threads and tighten the connection securely using an adjustable wrench.

Checking for Leaks

Slowly turn the shut-off valve counterclockwise to restore the water supply. Carefully inspect all connections for leaks. If you observe any leaks, immediately shut off the water supply and tighten the connections further. If leaks persist, disassemble the connections, reapply Teflon tape or pipe sealant, and reassemble. Once you are confident there are no leaks, proceed to the next step.

Connecting the Drain Line

The drain line is responsible for removing wastewater from the dishwasher. A proper connection is essential to prevent backups and ensure proper drainage.

Connecting to the Sink Drain or Garbage Disposal

The dishwasher drain line can be connected either to a dedicated drain pipe stub-out or to the kitchen sink drain, typically through a connection point on the garbage disposal or a sink drain tailpiece. If connecting to a garbage disposal, ensure the knockout plug inside the disposal drain connection has been removed before connecting the drain hose.

Attach the dishwasher drain hose to the drain connection point using a hose clamp. Position the hose clamp securely over the hose and tighten it firmly using a screwdriver or pliers. Ensure the drain hose is routed with a high loop above the dishwasher’s drain connection, typically secured to the underside of the countertop. This high loop prevents wastewater from flowing back into the dishwasher from the sink drain.

Securing the Drain Hose

Ensure the drain hose is properly supported and secured to prevent it from kinking or sagging. Kinks can restrict drainage, while sagging can create a low point where wastewater can accumulate. Use zip ties or hose clamps to secure the drain hose to the cabinet walls or other suitable supports.

Testing the Drain

After connecting the drain line, pour a small amount of water into the dishwasher and run a short rinse cycle to test the drainage. Observe the drain hose and connections for leaks. Also, listen for any unusual noises or gurgling sounds during the drain cycle, which could indicate a blockage or improperly installed hose.

Connecting the Electrical Supply

The electrical connection provides power to the dishwasher. Strict adherence to electrical safety codes is paramount during this step.

Turning Off the Breaker

Locate the circuit breaker that controls the electrical supply to the dishwasher. Turn the breaker to the "OFF" position. Double-check that the power is off using a non-contact voltage tester before proceeding with any electrical connections.

Connecting the Wires

Access the electrical junction box on the dishwasher. This box is typically located at the front or bottom of the appliance. Remove the cover of the junction box to expose the wiring terminals.

Connect the dishwasher's wires to the corresponding wires from the household electrical system. Typically, this involves connecting the black (hot) wire to the black wire, the white (neutral) wire to the white wire, and the green (ground) wire to the green or bare copper ground wire. Use appropriately sized wire nuts to securely connect the wires. Twist the wire nuts tightly until the connection is secure, and then wrap the connections with electrical tape for added insulation and security.

Important: If your dishwasher requires a dedicated circuit, ensure the electrical system is properly wired to meet the dishwasher’s voltage and amperage requirements. Consult a qualified electrician if you are unsure about any aspect of the electrical connection.

Securing the Junction Box

Carefully tuck the wires back into the junction box and replace the cover. Ensure the cover is securely fastened to prevent accidental contact with the wiring. Turn the circuit breaker back to the "ON" position.

Final Steps and Testing

Once the water, drain, and electrical connections are complete, perform these final steps to ensure proper installation:

Leveling the Dishwasher

Use a level to check the dishwasher’s levelness. Adjust the leveling legs at the bottom of the dishwasher until it is perfectly level from side to side and front to back. A level dishwasher ensures proper water distribution and washing performance.

Securing the Dishwasher

Most Whirlpool dishwashers are designed to be secured to the countertop or adjacent cabinets using mounting brackets. Attach the mounting brackets to the dishwasher frame and then screw them into the countertop or cabinet frame. This prevents the dishwasher from tipping or shifting during operation.

Performing a Test Run

Load the dishwasher with a few dishes and run a complete wash cycle. Observe the dishwasher for any leaks, unusual noises, or error codes. Ensure the dishwasher fills with water, washes the dishes effectively, and drains properly. If any issues arise, consult the dishwasher’s troubleshooting guide or contact a qualified appliance repair technician.

Why This Matters

Properly connecting a Whirlpool dishwasher is essential for ensuring its efficient and reliable operation. Correct connections prevent water leaks that can damage your home, ensure proper drainage to avoid unsanitary conditions, and guarantee a safe electrical connection to prevent potential hazards. By following these guidelines, you can install your dishwasher with confidence, prolong its lifespan, and enjoy sparkling clean dishes for years to come. Furthermore, incorrect installation can void the manufacturer's warranty, making proper installation even more important.
