How To Change Drill Bit Dewalt 20v Max

Changing a drill bit on your DeWalt 20V Max drill is a fundamental skill for any DIY enthusiast or professional tradesperson. Knowing how to quickly and effectively change drill bits saves time and frustration, allowing you to seamlessly transition between tasks and maintain efficiency on any project. This guide provides clear, step-by-step instructions to ensure you can confidently change drill bits on your DeWalt 20V Max drill.

Understanding Your DeWalt 20V Max Drill Chuck

The drill chuck is the mechanism that holds the drill bit in place. On most DeWalt 20V Max drills, you'll find a keyless chuck. This means you don't need a separate key to tighten or loosen it. The chuck typically consists of a rotating sleeve with jaws inside that clamp down on the drill bit.

Identifying the Chuck Type

Before proceeding, confirm you have a keyless chuck. Look at the front of the drill. If there's a textured sleeve that you can grip and twist, it's a keyless chuck. If there's a hole where a key would be inserted, you have a keyed chuck (although less common on newer DeWalt 20V Max models). If you have a keyed chuck, you'll need the chuck key.

Step-by-Step Guide to Changing a Drill Bit (Keyless Chuck)

This section outlines the process for drills with a keyless chuck.

1. Secure the Drill: Ensure the drill is turned off and the battery is removed. This prevents accidental activation and potential injury.
2. Loosen the Chuck: Grip the chuck sleeve with one hand and rotate it counterclockwise. You may hear a clicking sound as the jaws loosen. Continue rotating until the jaws are open wide enough to accommodate the drill bit you intend to use. Open the chuck fully.
3. Insert the Drill Bit: Insert the shank of the drill bit into the center of the open chuck jaws. Make sure the drill bit is inserted as far as it will go, ensuring it's properly seated.
4. Tighten the Chuck: Grip the chuck sleeve again and rotate it clockwise. Tighten the chuck firmly by hand. You may hear a clicking sound as the jaws tighten around the drill bit. Give it a few good twists to ensure a secure grip. Don't overtighten.
5. Verify the Bit is Secure: Give the drill bit a gentle tug to check if it's properly secured. If it moves, loosen the chuck and repeat steps 3 and 4, tightening more firmly.
6. Re-insert the Battery: Once you're confident the drill bit is secure, re-insert the battery.

Step-by-Step Guide to Changing a Drill Bit (Keyed Chuck)

If your DeWalt 20V Max drill has a keyed chuck, follow these instructions.

1. Secure the Drill: As with the keyless chuck, ensure the drill is turned off and the battery is removed.
2. Locate the Chuck Key: Find the chuck key that came with your drill.
3. Loosen the Chuck: Insert the chuck key into one of the holes on the side of the chuck. Rotate the key counterclockwise to loosen the jaws. Move the key to each of the holes around the chuck, rotating counterclockwise in each hole to ensure even loosening.
4. Remove the Old Bit: Once the jaws are sufficiently loosened, the drill bit should easily slide out.
5. Insert the New Bit: Insert the new drill bit into the center of the chuck jaws, pushing it in as far as it will go.
6. Tighten the Chuck: Insert the chuck key into each of the holes around the chuck. Rotate the key clockwise in each hole to tighten the jaws evenly around the drill bit. Ensure the bit is securely held in place.
7. Verify Security: Give the drill bit a gentle tug to confirm it's properly secured. If it moves, repeat step 6, tightening more firmly.
8. Remove the Chuck Key: Crucially, remove the chuck key before re-inserting the battery. Failure to do so can be dangerous.
9. Re-insert the Battery: Once you're confident the drill bit is secure and the chuck key is removed, re-insert the battery.

Practical Tips for Drill Bit Changes

• Bit Slippage: If your drill bit slips during use, it could be due to an improperly tightened chuck. Stop immediately and tighten the chuck more firmly. If it continues to slip, inspect the drill bit shank and the chuck jaws for damage.
• Bit Size: Ensure you are using the correct size drill bit for your project. Using a bit that is too small can cause damage to the material you are drilling into, while using a bit that is too large can make it difficult to control the drill.
• Chuck Maintenance: Periodically clean the chuck jaws with a wire brush to remove debris and ensure a good grip on the drill bit. You can also apply a small amount of lubricant (like WD-40) to the chuck mechanism to keep it operating smoothly.
• Rounded Shanks: Check the drill bit shank regularly for wear or rounding. A worn or rounded shank can cause the bit to slip in the chuck. Replace worn bits promptly.

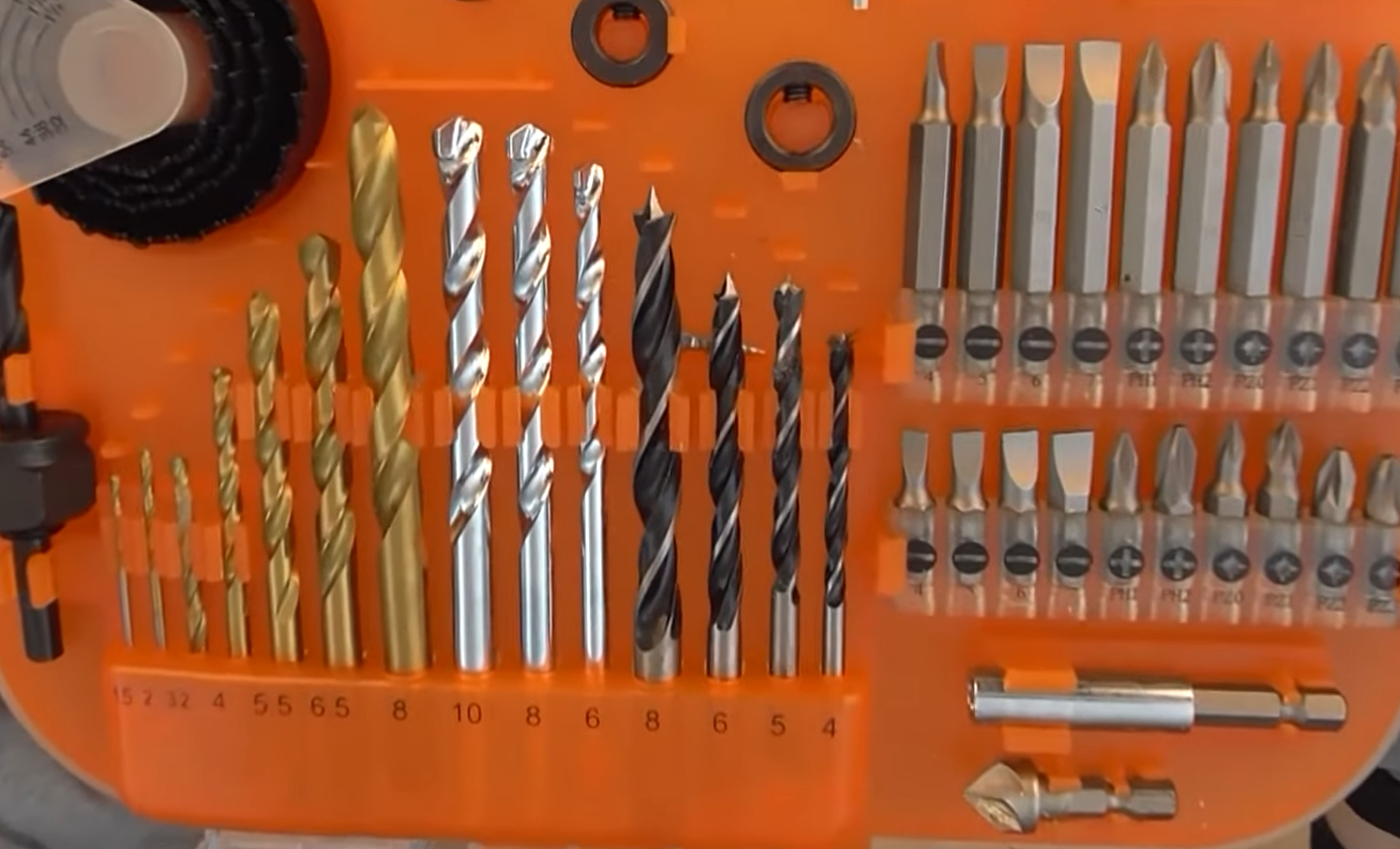

• Storage: Store your drill bits in a designated case or organizer to prevent damage and make it easier to find the right bit for each project.
• Safety Glasses: Always wear safety glasses when using a drill to protect your eyes from flying debris.
• Gloves: Consider wearing gloves for better grip and protection, especially when handling potentially sharp drill bits.
• Direction Setting: Make sure your drill is set to forward when tightening and reverse when loosening. Accidentally tightening in reverse or loosening in forward can damage the chuck.

Applying This Knowledge in Daily Life/Work

This seemingly simple task is crucial for efficiency and safety in various scenarios:

• Home Improvement: From hanging pictures to assembling furniture, you'll often need to switch between different drill bits for various tasks. Knowing how to quickly change bits saves you time and effort.
• Woodworking Projects: Woodworking often requires multiple drill bit sizes and types for pilot holes, countersinking, and creating different sized holes.
• Construction and Carpentry: Professionals in these fields rely on quick and efficient bit changes to keep projects on schedule and minimize downtime.
• Automotive Repair: Some automotive repairs may require drilling or tapping, necessitating different drill bits and tap sizes.
• Plumbing and Electrical Work: Installing pipes or running wires often requires drilling through various materials, requiring different bit types.

Mastering this skill not only makes projects easier but also enhances safety by ensuring the bit is properly secured, reducing the risk of accidents.

Checklist/Guideline for Changing Drill Bits

Use this checklist to ensure a smooth and safe drill bit change:

Pre-Change Checklist:

• [ ] Power off the drill and remove the battery.
• [ ] Gather the necessary drill bits.
• [ ] For keyed chucks, locate the chuck key.
• [ ] Wear safety glasses.

Changing the Bit:

• [ ] Loosen the chuck by rotating the sleeve counterclockwise (keyless) or using the chuck key (keyed).
• [ ] Remove the old bit (if present).
• [ ] Insert the new bit fully into the chuck jaws.
• [ ] Tighten the chuck by rotating the sleeve clockwise (keyless) or using the chuck key (keyed).
• [ ] Ensure the bit is securely held by giving it a gentle tug.

Post-Change Checklist:

• [ ] Remove the chuck key (if applicable).
• [ ] Re-insert the battery.
• [ ] Test the drill bit briefly to ensure it runs true.
• [ ] Store the old bit properly.

By following these guidelines, you can confidently and safely change drill bits on your DeWalt 20V Max drill, improving your efficiency and productivity in various tasks and projects.
