How To Build A Swing Frame With Roof

Alright folks, let's talk about something seriously fun: building a swing frame! But not just any swing frame. We're talking about one with a roof! Yeah, you heard right. A roof! Think shaded swinging on a hot summer day, a little shelter from a light drizzle, or just a totally awesome fort-like structure for the kids (or let's be honest, for you too!).

Now, I know what you're thinking: "That sounds complicated!" But trust me, with a little planning and a few basic tools, you can totally pull this off. We're going to break it down into manageable steps, so even if you've never swung a hammer before (okay, maybe you've swung something before...), you'll be able to build a swing frame with a roof that'll be the envy of the neighborhood.

Why Build a Swing Frame with a Roof? (Besides Being Awesome)

Let's be real, the main reason is because it's awesome. But if you need a little more convincing, here are a few other benefits:

• Sun Protection: Seriously, this is a big one. No more squinting and burning while you're trying to relax on the swing. The roof provides welcome shade.
• Rain Protection: Okay, maybe not a torrential downpour, but a light shower won't stop the fun! Plus, a little rain swinging can be quite magical.
• Extended Playtime: Because of the weather protection, your kids (or you!) can enjoy the swing set more often. Think longer summer days and fewer "I'm bored!" complaints.
• Increased Property Value: A well-built swing set with a roof adds visual appeal to your backyard and can actually increase your home's value. Win-win!
• It's a Fun Project! Seriously, building something with your own two hands is incredibly rewarding. Plus, you'll learn new skills and have a blast doing it.

Convinced yet? I thought so! Let's get down to the nitty-gritty.

Planning Your Swing Frame with Roof: The Blueprint for Fun!

Before you even think about picking up a saw, you need a plan. This is where you'll figure out the size, shape, and materials you'll need. Don't skip this step! Trust me, a little planning now will save you a lot of headaches later.

1. Size and Dimensions

How big do you want your swing frame to be? Consider these factors:

• Available Space: Measure your backyard carefully! You don't want to build a swing set that takes up the entire lawn.
• Number of Swings: How many swings do you want to hang? This will determine the width of your frame.
• Swing Type: Are you planning on using regular swings, tire swings, or maybe even a trapeze bar? Different swing types require different clearances.
• Height: How high do you want the swings to go? This will determine the height of your frame.

Pro Tip: It's always better to err on the side of caution and make the frame a little bigger than you think you need. You can always add more swings or accessories later!

2. Materials

The most common material for swing frames is wood, specifically pressure-treated lumber. This is because it's durable, weather-resistant, and relatively inexpensive. You can also use metal, but it's generally more expensive and requires welding skills. For the roof, you can use wood, metal roofing, or even heavy-duty canvas.

Here's a basic list of materials you'll likely need:

• Pressure-treated lumber (4x4 posts for the legs, 2x6 or 2x8 for the top beam and roof framing)
• Roofing material (wood, metal, canvas)
• Swing hangers
• Screws and bolts (galvanized for outdoor use)
• Concrete (for setting the posts)
• Sand or gravel (for drainage)

Important Note: Always use pressure-treated lumber that is specifically designed for ground contact. This will help prevent rot and decay.

3. Design

There are tons of swing frame designs out there. You can find free plans online, purchase a set of plans, or even design your own. Here are a few popular options:

• A-Frame: This is the most common and simplest design. It's strong, stable, and relatively easy to build.
• Tripod: This design uses three legs instead of four. It's a little more challenging to build, but it can be more space-efficient.
• Gable Roof: A classic look with two sloping sides that meet at a ridge.
• Flat Roof: A simpler option that's easier to build, but may not be as effective at shedding water.

My Advice: Start with a simple A-frame design and a gable roof. It's a great way to get your feet wet (not literally, hopefully!).

Tools of the Trade: What You'll Need to Build Your Masterpiece

Okay, so you've got your plan and your materials. Now it's time to gather your tools. Here's a list of essentials:

• Circular Saw: For cutting lumber to size.
• Drill/Driver: For drilling holes and driving screws.
• Level: To ensure your frame is straight and level.
• Tape Measure: For accurate measurements.
• Post Hole Digger or Shovel: For digging holes for the posts.
• Wrench and Socket Set: For tightening bolts.
• Safety Glasses: Protect your eyes!
• Work Gloves: Protect your hands!
• Ladder: For reaching high places.

Safety First! Always wear safety glasses and work gloves when working with power tools. And if you're not comfortable using a particular tool, ask for help! There's no shame in admitting you need a little guidance.

Building Your Swing Frame: Step-by-Step

Alright, let's get building! Here's a step-by-step guide to building a basic A-frame swing frame with a gable roof.

1. Prepare the Posts

Cut the 4x4 posts to the desired length. Remember to account for the portion of the posts that will be buried in the ground. A good rule of thumb is to bury them at least 2 feet deep.

Optional: You can treat the ends of the posts with a wood preservative to further protect them from rot.

2. Dig the Post Holes

Dig the post holes according to your plan. Make sure the holes are wide enough to accommodate the posts and a layer of concrete.

Pro Tip: Use a post hole digger to make the job easier. A shovel works too, but it's a lot more work!

3. Set the Posts

Place the posts in the holes and ensure they are plumb (perfectly vertical). Use a level to check. Pour concrete around the posts to secure them in place. Let the concrete cure completely before moving on to the next step. This usually takes at least 24 hours.

Important Note: Use temporary braces to hold the posts in place while the concrete is curing. This will prevent them from shifting.

4. Attach the Top Beam

Cut the 2x6 or 2x8 top beam to the desired length. Attach the beam to the tops of the posts using bolts and washers. Make sure the beam is level and securely fastened.

Pro Tip: Use a ladder to reach the top of the posts. And have a friend help you hold the beam in place while you're attaching it.

5. Build the Roof Frame

This is where things get a little more complex. The roof frame will consist of rafters that support the roofing material. Cut the rafters to the desired length and angle. Attach the rafters to the top beam using screws or nails. Be sure to follow your plan carefully and ensure the roof frame is sturdy and level.

Simplified Tip: If a gable roof seems complicated, a flat roof simplifies construction dramatically. Just ensure proper support and a slight slope for water runoff!

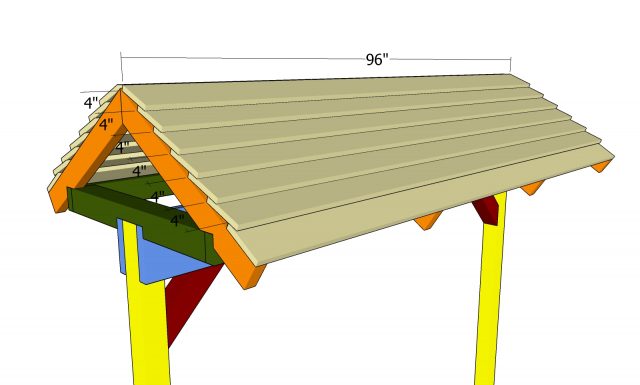

6. Install the Roofing Material

Once the roof frame is complete, you can install the roofing material. This will depend on the material you've chosen. If you're using wood, you'll need to cut the wood to size and attach it to the rafters. If you're using metal roofing, you'll need to overlap the panels and secure them with screws. If you're using canvas, you'll need to stretch it over the frame and secure it with staples or grommets.

Personal Touch: This is your chance to get creative! Paint the roof a fun color, add some decorative trim, or even hang some string lights.

7. Install the Swings

Now for the fun part! Attach the swing hangers to the top beam and hang the swings. Make sure the swings are at the correct height and that they have enough clearance. Give them a test run to make sure everything is working properly.

Safety Check: Always double-check the swing hangers and make sure they are securely attached. Your kids' (or your!) safety depends on it!

Finishing Touches: Making Your Swing Frame Shine

Once the swing frame is built, there are a few finishing touches you can add to make it even better:

• Sand the Wood: This will help prevent splinters.
• Paint or Stain the Wood: This will protect the wood from the elements and give it a more finished look.
• Add Mulch or Sand Under the Swings: This will provide a soft landing in case of falls.
• Hang String Lights: This will create a magical ambiance in the evening.
• Add a Small Table and Chairs: This will create a comfortable space for kids to play and relax.

Remember: This is your project! Customize it to your liking and make it your own.

Troubleshooting: When Things Don't Go According to Plan

Let's be honest, even with the best planning, things can sometimes go wrong. Here are a few common problems and how to fix them:

• Posts Not Level: Use shims to adjust the posts until they are level.
• Top Beam Not Straight: Use a level and adjust the posts until the beam is straight.
• Roof Frame Not Square: Measure the diagonals of the roof frame. If they are not equal, adjust the frame until they are.
• Swings Too Close Together: Adjust the swing hangers until the swings are properly spaced.

Don't Panic! Everyone makes mistakes. The important thing is to learn from them and keep going. And remember, there are plenty of resources available online to help you troubleshoot any problems you encounter.

Wrapping Up: Get Out There and Build!

So there you have it! A comprehensive guide to building a swing frame with a roof. It may seem like a daunting task, but with a little planning, some basic tools, and a can-do attitude, you can totally pull this off. And trust me, the look on your kids' faces (or your own!) when they see their new swing set will be worth all the effort.

Building something with your own hands is incredibly rewarding. It's a chance to learn new skills, unleash your creativity, and create something that will bring joy to your family for years to come. So what are you waiting for? Get out there and build your dream swing frame!

Ready to dive deeper? There are countless resources online – from detailed plans to video tutorials – that can guide you through every step of the process. Don't be afraid to experiment, learn, and most importantly, have fun! Your backyard oasis awaits!
