How To Build A Pulling Garden Tractor

So, you’re thinking about building a pulling garden tractor, huh? Awesome! Let’s be honest, life’s too short to mow grass when you could be building a mini-monster truck. And before you say, "That sounds complicated!" – relax! It's absolutely doable, even if you’re not a seasoned mechanic. Think of it as a really fun, really loud, and potentially really competitive hobby.

First off, what is a pulling garden tractor? Simple: it’s a garden tractor modified to pull a weighted sled as far as possible. It’s like a tractor version of a strongman competition. Why would you do this? Because it's a blast! The roar of the engine, the smell of burning rubber (hopefully not too much burning rubber!), the thrill of competition… it's addictive, I tell you!

Getting Started: The Foundation of Fun

Alright, let’s dive in. The first step is finding your donor tractor. You’ll want a garden tractor, not a lawn tractor. Garden tractors are generally beefier, with stronger transmissions and frames. Look for something from the 70s, 80s, or 90s. Older tractors tend to be simpler to work on, and parts are often easier to find (and cheaper!).

What makes a good donor tractor? Look for something with a strong transmission – hydrostatics are okay, but gear drives are generally preferred for pulling due to their simplicity and durability. A cast iron axle is a huge plus. Avoid anything that looks like it’s been sitting in a swamp for a decade… unless you really like a challenge. A little rust is okay; major structural damage is not.

Essential Considerations Before You Wrench:

• Budget: How much are you willing to spend? This is crucial! Building a pulling tractor can range from a few hundred bucks to thousands, depending on how competitive you want to be.
• Rules: What are the rules of the pulling organization you plan to compete with? These rules will dictate things like engine size, tire size, safety requirements, and weight limits. Don't skip this!
• Tools: Do you have the necessary tools? Wrenches, sockets, a grinder, a welder (even a basic one!), and a good set of screwdrivers are essential.
• Space: Do you have a workspace where you can tear down and rebuild your tractor? Your living room probably isn't ideal (trust me).

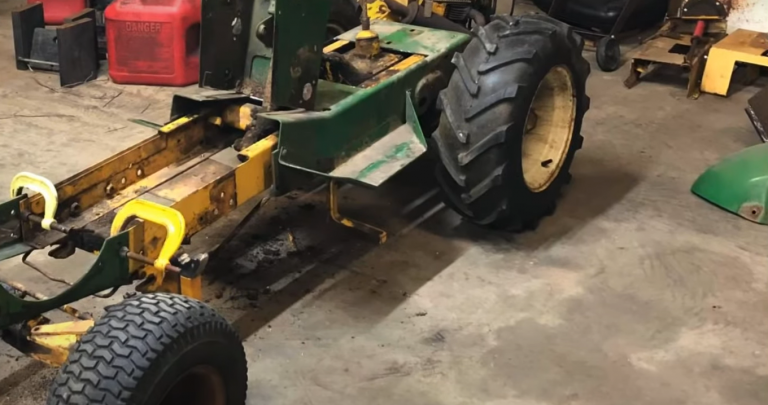

Once you've got your donor tractor, it's time for the tear-down. This is where things get interesting (and potentially messy). Disassemble the tractor completely. Take pictures as you go! You’ll thank yourself later when you’re trying to figure out where that random spring goes. Clean and inspect every part. This is your chance to identify any worn or damaged components that need to be replaced.

The Heart of the Beast: Engine Modifications

Okay, now for the fun part: engine modifications! This is where you can really unleash some power. But remember those rules we talked about? Stick to them! Going over the engine size limit will get you disqualified faster than you can say “horsepower.”

Common engine modifications include:

• Bore and Stroke: Increasing the bore and stroke of the engine increases its displacement, resulting in more power. This usually requires replacing the piston and cylinder.
• Carburetor Upgrades: A larger carburetor can provide more fuel to the engine, allowing it to produce more power.
• Performance Camshaft: A performance camshaft can improve the engine's breathing, allowing it to rev higher and produce more power.
• Porting and Polishing: Porting and polishing the cylinder head can improve airflow, resulting in more power.
• Exhaust Modifications: A custom exhaust system can reduce backpressure and improve exhaust flow, resulting in more power. But keep it reasonable. Your neighbors will thank you.
• High Performance Ignition: Improves spark and combustion for more power.

Important Note: Engine modifications can be complex. If you’re not comfortable working on engines, consider having a professional do the work. It’s better to spend a little extra money than to blow up your engine on the first pull.

Beefing Up the Chassis: Making it Stronger

Now that you’ve got a fire-breathing engine, you need to make sure the chassis can handle the power. Garden tractor frames weren't designed to withstand the forces generated by pulling a weighted sled, so reinforcement is essential.

Here are some common chassis modifications:

• Frame Reinforcement: Welding additional steel plates to the frame can significantly increase its strength. Focus on areas that are prone to stress, such as the hitch and the front axle mounts.
• Hitch Reinforcement: The hitch is the point where the tractor connects to the sled, so it needs to be incredibly strong. Reinforce the hitch with heavy-duty steel brackets and welds. Consider using a clevis hitch for added strength.
• Axle Upgrades: If you’re running a powerful engine, you may need to upgrade the axles to prevent them from breaking. Consider using axles made from hardened steel.
• Wheelie Bars: Wheelie bars are essential for preventing the tractor from flipping over backward during a pull. They should be strong and adjustable.

Welding is your friend here. If you're not a proficient welder, practice on scrap metal before tackling the frame. Bad welds can lead to catastrophic failures.

Transmission Time: Putting the Power to the Ground

The transmission is the heart of the pulling tractor. It needs to be strong enough to handle the engine's power and provide the necessary gear ratios for pulling. A weak transmission will quickly become the weak link in your pulling tractor.

If you're using a gear-drive transmission, inspect it carefully for wear and damage. Replace any worn gears or bearings. Consider upgrading to stronger gears if you’re running a high-horsepower engine. You might consider looking at aftermarket transmissions that are specifically built for pulling.

Hydrostatic transmissions are generally not as strong as gear-drive transmissions, but they can be used for pulling. However, they require careful attention to maintenance and cooling. Make sure the hydrostatic fluid is clean and at the correct level. Consider adding an external cooler to prevent the fluid from overheating during pulls.

Tires and Traction: Grabbing the Dirt

Tires are crucial for getting traction. You need tires that can dig into the dirt and provide maximum grip. Ag tires (agricultural tires) are the most common choice for pulling tractors. They have deep lugs that provide excellent traction in loose soil.

Tire size is dictated by the rules. Within those rules, try to get the widest tire possible to maximize the contact patch. You can also adjust tire pressure to optimize traction. Lower tire pressure increases the contact patch, but too little pressure can cause the tire to roll off the rim. Experiment to find the optimal pressure for your tires and track conditions. Some people even run beadlocks to help prevent that rolling off the rim scenario.

Safety First! Making it Safe and Smart

Safety is paramount. Pulling tractors can be dangerous, so it’s important to take precautions to protect yourself and others. Make sure your tractor has the required safety equipment, such as a kill switch, wheelie bars, and a fire extinguisher. Wear appropriate safety gear, including a helmet, eye protection, and ear protection. And, you know, don't be a show-off.

• Kill Switch: A kill switch is essential for quickly shutting down the engine in case of an emergency. Mount it in an easily accessible location.
• Wheelie Bars: As mentioned earlier, wheelie bars prevent the tractor from flipping over backward. Make sure they are strong and adjustable.
• Fire Extinguisher: Keep a fire extinguisher on hand in case of a fire. Make sure it is properly charged and easily accessible.
• Helmet: Wear a helmet to protect your head in case of an accident.
• Eye Protection: Wear safety glasses or a face shield to protect your eyes from flying debris.
• Ear Protection: Wear earplugs or earmuffs to protect your hearing from the loud engine noise.

Putting it All Together: The Finishing Touches

Now that you’ve modified the engine, chassis, transmission, and tires, it’s time to put everything back together. Take your time and pay attention to detail. Make sure all the bolts are tightened and all the connections are secure.

Once the tractor is assembled, give it a thorough test run. Check for any leaks or problems. Make sure the engine is running smoothly and the transmission is shifting properly. Adjust the wheelie bars and hitch to ensure they are properly aligned.

Finally, give your tractor a paint job. This isn’t just for looks (although a cool paint job is definitely a plus!). Paint helps protect the metal from rust and corrosion. Choose a color that reflects your personality and style. Let your imagination run wild! (Flames are always a good choice, just saying.)

Testing and Tuning: Dialing it In

Before you hit the track, it’s important to test and tune your tractor. Find a safe location where you can practice pulling without causing any damage. Experiment with different gear ratios, tire pressures, and hitch settings to find the optimal setup for your tractor and the track conditions.

Pay attention to how the tractor feels during the pull. Is it bogging down? Is it spinning the tires? Adjust the settings accordingly. It may take some time to dial in the perfect setup, but it will be worth it when you start winning pulls.

Hitting the Track: Let the Fun Begin!

You've put in the work, now it's time to show off your beast! Find a local garden tractor pulling event and sign up. Don’t be intimidated by the other competitors. Remember, everyone started somewhere. The most important thing is to have fun and learn from the experience.

At the track, follow the instructions of the event organizers. Be respectful of the other competitors and spectators. And most importantly, have fun! Whether you win or lose, you’ve built something amazing. That's something to be proud of.

Building a pulling garden tractor is a challenging but rewarding experience. It’s a chance to learn new skills, meet new people, and unleash your inner gearhead. It’s also a great way to spend time outdoors and get some exercise. And, let's be honest, it's just plain cool. So what are you waiting for? Start planning your build today! The world of garden tractor pulling awaits! You might just surprise yourself with what you can accomplish.

Feeling overwhelmed? Don't be! There are tons of online resources, forums, and clubs dedicated to garden tractor pulling. These communities are a fantastic resource for finding information, getting advice, and connecting with other enthusiasts. Don't hesitate to reach out and ask for help. Most people are more than willing to share their knowledge and experience. With a little research, dedication, and a lot of elbow grease, you'll be pulling with the best of them in no time! So go forth and build something amazing!
