Binding the Traxxas TQi Transmitter to Receiver: A Step-by-Step Guide

This article provides a detailed procedure for binding a Traxxas TQi transmitter to its corresponding receiver. Correct binding is essential for establishing a reliable communication link between the transmitter and the receiver, allowing for proper control of your Traxxas vehicle.

Identifying Compatible Components

Before initiating the binding process, ensure compatibility between your transmitter and receiver. The TQi transmitter is generally compatible with Traxxas receivers that are designed to be bound to it, specifically those utilizing the TQi 2.4GHz radio system. Review the product specifications of both your transmitter and receiver to confirm compatibility. Using incompatible components can lead to failure to bind and potential operational issues.

Preparing for the Binding Process

Prior to beginning the binding procedure, take the following preparatory steps:

• Verify that the receiver is properly installed in the vehicle and connected to the electronic speed control (ESC) or servo(s).
• Ensure the receiver is receiving power from the ESC or a separate receiver battery pack.
• Confirm that the transmitter has fresh batteries installed or is adequately charged. Low battery levels can interrupt the binding process.
• Place the vehicle on a stable surface, away from obstructions or moving parts.
• Turn off both the transmitter and the vehicle's receiver.

The Binding Procedure

The binding process typically involves these steps:

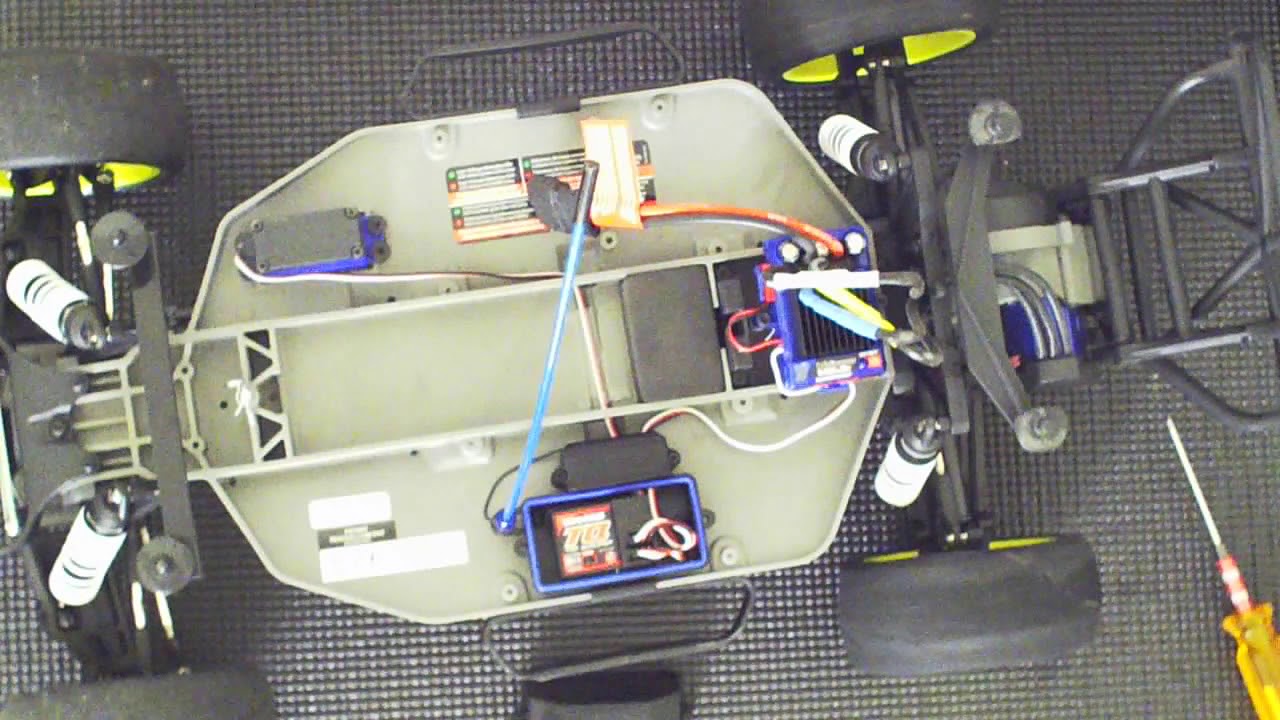

1. Locate the SET Button: Identify the SET button on the receiver. This button is usually small and recessed, often requiring a small tool like a pen or screwdriver to press.
2. Initiate Binding Mode on the Receiver: With the receiver power off, press and hold the SET button on the receiver. While holding the SET button, power on the receiver. The receiver's LED should begin to flash, indicating that it is in binding mode. Note that some receivers might have an indicator that lights up when in binding mode.
3. Activate Binding Mode on the Transmitter: Turn on the transmitter. Depending on the specific TQi transmitter model, you may need to navigate the menu system to initiate binding mode. Look for an option labeled "Bind," "Link," or a similar term in the transmitter's menu. Consult the transmitter's manual for specific instructions on accessing and activating binding mode. Some transmitters will automatically attempt to bind upon power-up if no previous connection is established.
4. Observe the Binding Process: Once both the receiver and transmitter are in binding mode, they will attempt to establish a connection. The receiver's LED will typically change from flashing to a solid light, or a different pattern of blinking, indicating a successful bind. The transmitter may also provide a visual or audible confirmation of a successful bind.
5. Test the Connection: After the LED on the receiver becomes solid, or another indicator shows success, release the SET button on the receiver. Turn the vehicle off and then on again. Turn the transmitter off and then on again. Test the control of the vehicle. Verify that the steering and throttle respond correctly to the transmitter inputs. If the vehicle does not respond, repeat the binding process.

Troubleshooting Binding Issues

If you encounter difficulties binding the transmitter and receiver, consider the following troubleshooting steps:

• Check Battery Levels: Ensure both the transmitter and receiver have sufficient power. Low battery levels can prevent successful binding.
• Verify Proximity: Position the transmitter close to the receiver during the binding process, typically within a few feet. Excessive distance can interfere with the signal.
• Reduce Interference: Move away from potential sources of radio interference, such as Wi-Fi routers, cordless phones, and other electronic devices.
• Inspect Wiring: Examine the wiring connections between the receiver and the ESC/servos for any loose or damaged wires.
• Factory Reset (Transmitter): Refer to the transmitter's manual for instructions on performing a factory reset. This can sometimes resolve binding issues caused by corrupted settings.
• Receiver Compatibility: Double-check that the receiver is indeed compatible with your TQi transmitter. Using an incorrect receiver can prevent binding.
• ESC Calibration: After binding, it's crucial to calibrate the ESC to the transmitter's throttle range. Improper ESC calibration can lead to erratic throttle behavior or failure to respond.

If problems persist after attempting these steps, consult the Traxxas support documentation or contact Traxxas customer support for assistance.

Rebinding Procedures

Situations that may necessitate rebinding the transmitter and receiver include:

• Replacing either the transmitter or the receiver.
• Experiencing intermittent signal loss or erratic control.
• Suspecting interference from other radio sources.
• Performing a factory reset on the transmitter.

The rebinding process is generally identical to the initial binding procedure outlined above. Follow the steps carefully to ensure a successful connection.

Post-Binding Considerations

After successfully binding the transmitter and receiver, consider the following:

• Range Testing: Perform a range test to verify the operational range of the radio system. Walk the vehicle away from the transmitter and check for loss of control.
• Fail-Safe Settings: Configure the fail-safe settings on the receiver. Fail-safe settings determine the behavior of the vehicle in the event of signal loss, typically setting the throttle to neutral and preventing runaway situations. Consult the receiver's documentation for information on setting fail-safes.
• Servo Reversing: Check that the servos move in the correct directions. If necessary, use the transmitter's servo reversing function to correct servo direction.
• Trim Adjustments: Make fine-tuning adjustments to the steering and throttle trim using the transmitter's trim controls. This ensures the vehicle tracks straight and idles properly.

Safety Precautions

Always prioritize safety when operating radio-controlled vehicles. Before operating the vehicle, ensure that the surrounding area is clear of obstacles, pedestrians, and animals. Keep the vehicle within visual range at all times. Never operate the vehicle near roads or traffic. If the vehicle loses control, immediately stop and retrieve it. Always disconnect the battery when not in use.

Understanding Transmitter Modes

Some TQi transmitters offer multiple driving modes that affect the throttle and steering sensitivity. Familiarize yourself with the different modes and select the appropriate mode for your skill level and the terrain you are operating on. Typically, a lower power or training mode will limit the top speed and steering angle, useful for beginners. Advanced modes allow the full potential of the vehicle to be utilized.

Telemetry Considerations

Certain TQi transmitters and receivers support telemetry, which allows you to monitor real-time data from the vehicle, such as battery voltage, motor temperature, and speed. If your system supports telemetry, ensure that the telemetry sensors are properly installed and configured. Displaying telemetry data on the transmitter can provide valuable information about the vehicle's performance and prevent potential damage.

Conclusion

Successfully binding the Traxxas TQi transmitter to the receiver is crucial for operating your Traxxas vehicle safely and effectively. Following these steps can ensure a stable and reliable connection. Remember these key takeaways:

• Compatibility is Key: Ensure the transmitter and receiver are compatible.
• Proper Preparation: Follow the preparation steps meticulously before binding.
• Troubleshooting: Be prepared to troubleshoot common binding issues.
• Post-Binding Checks: Perform essential post-binding checks, including range testing and fail-safe setup.
• Safety First: Always prioritize safety when operating your RC vehicle.

By understanding the binding process and adhering to these guidelines, you can establish a reliable connection between your transmitter and receiver and enjoy a seamless driving experience.
