How To Add Weight To Pinewood Derby Car

The Pinewood Derby is a time-honored tradition that combines craftsmanship, physics, and friendly competition. One of the key elements influencing a car's performance is its weight. Properly adding weight can significantly increase a car's speed and stability. This article provides a step-by-step guide on how to effectively add weight to your Pinewood Derby car.

Understanding Weight Placement

Before adding any weight, it's essential to understand its importance. The official Pinewood Derby rules usually specify a maximum weight, often 5 ounces (141.75 grams). Aiming for this maximum weight is crucial. Furthermore, the distribution of this weight significantly impacts the car's performance. Generally, concentrating the weight towards the rear of the car promotes greater speed.

The reason for rearward weight bias stems from principles of physics, particularly potential and kinetic energy. When the car is released, its potential energy (due to being at the top of the track) is converted into kinetic energy (motion). By positioning the weight towards the rear, the car's center of gravity is shifted, causing a slight "lift" of the front wheels. This reduces friction, which is a significant impediment to speed.

Materials and Tools Needed

Gather the necessary materials and tools before commencing the weighting process. Here's a comprehensive list:

• Weight: Options include lead, tungsten putty, steel washers, or even pennies. Lead is dense but can be hazardous; consider tungsten putty as a safer alternative.
• Scale: A digital scale with a resolution of 0.01 ounces (0.28 grams) is necessary for precise weight measurement.
• Drill: A drill with various drill bits is useful for creating cavities to house the weight.
• Wood Putty or Filler: To conceal and secure the weight within the car body.
• Glue: Epoxy or wood glue to secure the weight in place.
• Sandpaper: For smoothing surfaces after adding wood putty.
• Safety Glasses: Eye protection is essential, especially when drilling.
• Dust Mask: To avoid inhaling sawdust or other particles.
• Measuring Tools: Ruler or calipers for precise measurements.

Step-by-Step Guide to Adding Weight

Step 1: Determine the Car's Current Weight

Begin by weighing the bare car body without any axles or wheels. This establishes a baseline for how much weight needs to be added. Record this initial weight.

Example: If the bare car body weighs 2.5 ounces, you need to add 2.5 ounces to reach the 5-ounce limit.

Step 2: Calculate the Required Weight

Subtract the car's initial weight from the maximum allowed weight. The result is the amount of weight you need to add.

Formula: Required Weight = Maximum Allowed Weight - Initial Car Weight

Example: Required Weight = 5 ounces - 2.5 ounces = 2.5 ounces

Step 3: Choose Weight Placement Location

Prioritize placing the weight towards the rear of the car. Common locations include:

• Drilling cavities in the rear of the car body.
• Attaching weight to the underside of the car towards the rear.
• Creating a weight pocket behind the rear axle.

The specific location will depend on your car design and desired weight distribution. Aim for a weight distribution where approximately 60-70% of the weight is behind the rear axle. This is just a starting point; experimentation is encouraged.

Step 4: Prepare the Weight Cavity (If Applicable)

If you choose to embed the weight within the car body, use a drill to create cavities. Select a drill bit that matches the size of the weight you're using. Ensure the cavities are deep enough to accommodate the weight and allow for a layer of wood putty or filler on top.

Safety Note: Always wear safety glasses and a dust mask when drilling.

Example: Using a drill with a ½-inch drill bit to create a cavity for a ½-inch diameter tungsten cylinder.

Step 5: Secure the Weight

Apply glue (epoxy or wood glue) to the inside of the cavity or the area where you're attaching the weight. Carefully place the weight into the cavity or onto the designated area. Ensure the weight is securely positioned.

Important: Allow the glue to dry completely according to the manufacturer's instructions before proceeding.

If using tungsten putty, press it firmly into the cavity, ensuring it conforms to the shape of the space.

Step 6: Conceal and Smooth the Weight (If Applicable)

If the weight is embedded within the car body, use wood putty or filler to cover the cavity. Apply the putty smoothly, ensuring it blends seamlessly with the surrounding wood. Allow the putty to dry completely.

Once the putty is dry, use sandpaper to smooth the surface. Start with a coarse grit sandpaper and gradually move to finer grits to achieve a smooth finish. This will improve the car's aerodynamics and aesthetics.

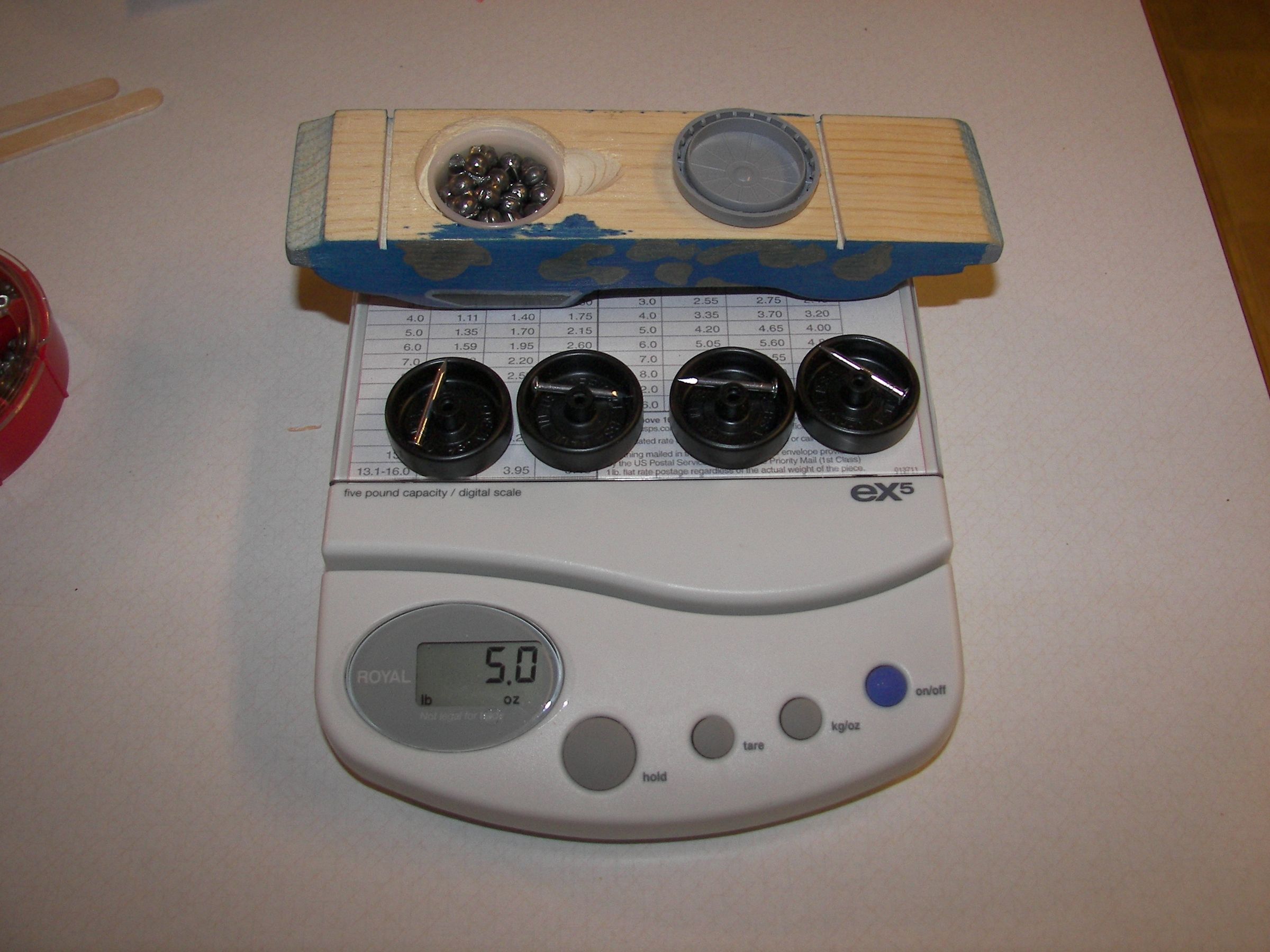

Step 7: Weigh the Car Again

After adding the weight, weigh the car again to ensure it meets the maximum weight requirement. If the car is under the maximum weight, add more weight in small increments until you reach the limit. If the car is over the limit, carefully remove some weight.

Precision is Key: Use the digital scale to make precise adjustments. Even a fraction of an ounce can impact performance.

Step 8: Test and Adjust

Ideally, test your car on a Pinewood Derby track. Observe its performance and make adjustments to the weight distribution as needed. Small adjustments can sometimes make a significant difference.

Note: If you don't have access to an official track, you can create a simple test track using a ramp and a smooth surface.

Practical Advice and Insights

Adding weight to a Pinewood Derby car is not an exact science. Experimentation and fine-tuning are essential. Here are some additional tips:

• Start with more weight than needed: It's easier to remove weight than to add it precisely.
• Use a consistent glue: Ensure the glue you choose is strong and durable to prevent the weight from shifting during the race.
• Consider aerodynamics: While weight placement is paramount, don't overlook the importance of aerodynamics. Streamlining the car's shape can further enhance its speed.
• Document your changes: Keep a record of the weight adjustments you make and the resulting performance changes. This will help you learn what works best for your car.
• Practice makes perfect: The more you practice and experiment, the better you'll understand the nuances of weight placement and its impact on car performance.

The process of adding weight to a Pinewood Derby car can teach valuable lessons about physics, engineering, and the importance of precision. These skills are applicable in various aspects of life, from problem-solving to critical thinking. The most important thing is to have fun and enjoy the process of building and racing your car.
