Understanding the Grid Doctor 300 Solar Generator System

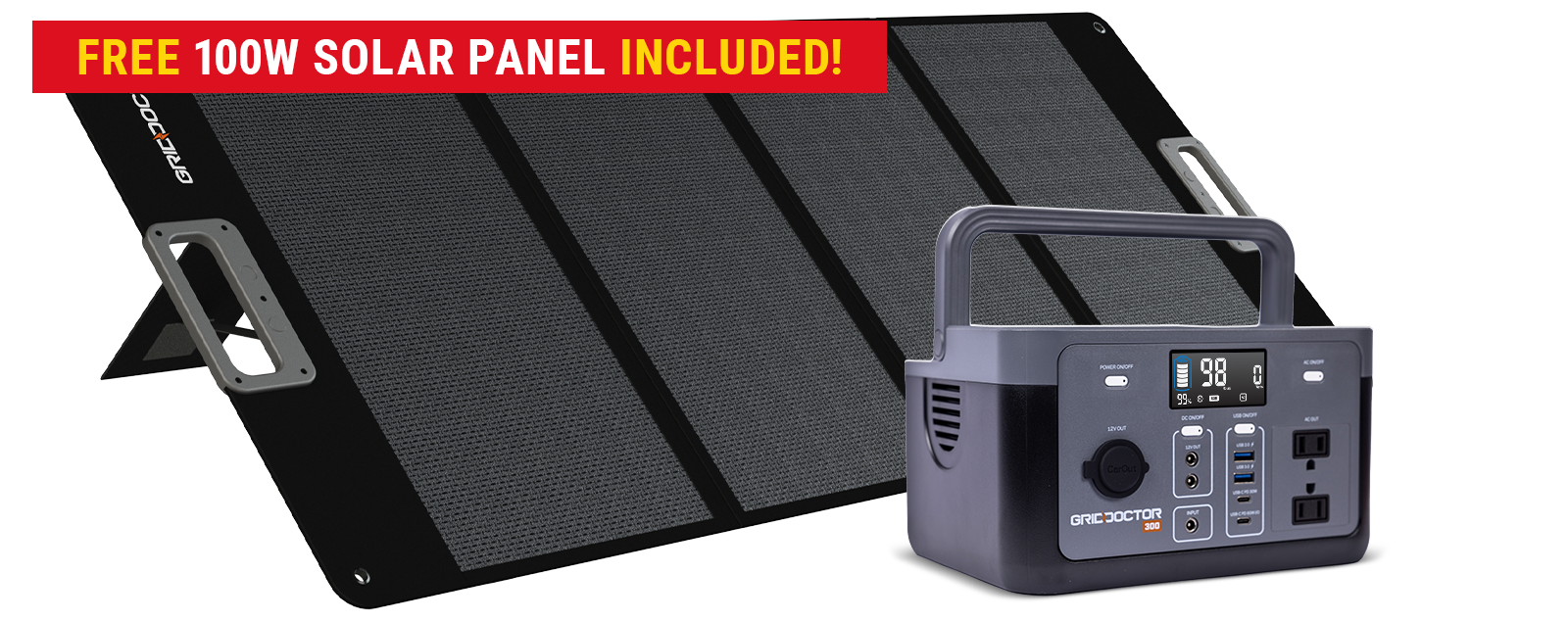

The Grid Doctor 300 is a portable solar generator designed to provide off-grid power and emergency backup. It's marketed towards homeowners, campers, and individuals seeking energy independence. This article provides a factual overview of its specifications, features, and limitations, based on publicly available information and technical documentation.

Core Components and Specifications

The Grid Doctor 300 system typically comprises the following:

• Lithium-ion Battery: The energy storage component, usually featuring a Lithium Nickel Manganese Cobalt Oxide (NMC) chemistry for its energy density and lifespan. The system boasts a capacity around 288 watt-hours.
• Solar Charge Controller: A Maximum Power Point Tracking (MPPT) controller to optimize energy harvesting from solar panels. The typical input voltage range is 12-24V DC.
• Inverter: Converts DC power from the battery to AC power for household appliances. The inverter usually provides 300 watts of continuous power and a higher surge capacity for starting appliances with electric motors.
• AC Outlets: Standard 120V AC outlets for powering common electronics. The number of outlets varies between models, but two are typically included.
• DC Outlets: DC outputs, often including 12V DC ports and USB ports for charging smaller devices. The system usually features multiple USB-A and USB-C ports.
• Display: An LCD screen displaying battery level, input power, output power, and system status.

Charging Options and Solar Panel Compatibility

The Grid Doctor 300 offers multiple charging methods:

• Solar Charging: Via compatible solar panels. The manufacturer specifies an input voltage and amperage. Matching these specifications ensures optimal charging performance and prevents damage to the system.
• AC Charging: Through a standard wall outlet. The charging time varies, usually around 5-7 hours using the included AC adapter.
• Car Charging: Using a 12V car charging adapter. This is a slower charging method compared to AC or solar charging.

Solar panel compatibility is crucial for maximizing the system's utility. It is important to verify the solar panel's voltage and current output to ensure they fall within the Grid Doctor 300's input parameters. Exceeding these limits can damage the charge controller. The system's efficiency depends on the quality of the solar panels and prevailing sunlight conditions.

Power Output and Appliance Compatibility

The Grid Doctor 300's inverter provides a continuous power output of 300 watts. It also has a surge capacity, which allows it to handle brief power spikes when starting appliances. However, the limited wattage restricts its use to smaller electronic devices and appliances.

Compatible appliances typically include:

• Smartphones and tablets
• Laptops
• LED lights
• Small fans
• Cameras

Appliances that may exceed the power limit:

• Refrigerators
• Microwaves
• Hair dryers
• Power tools
• Electric heaters

It's essential to check the wattage requirements of each appliance before plugging it into the Grid Doctor 300. Overloading the inverter can trigger a safety shutdown or damage the system.

Battery Life and Lifespan

The Grid Doctor 300 uses a lithium-ion battery, known for its relatively long lifespan compared to lead-acid batteries. The battery is rated for a certain number of charge cycles (e.g., 500 cycles to 80% capacity). One cycle represents a full charge and discharge of the battery.

Battery lifespan is affected by several factors, including:

• Depth of Discharge: Discharging the battery fully each time reduces its lifespan compared to shallower discharges.
• Temperature: Extreme temperatures can degrade battery performance and lifespan. Avoid exposing the system to direct sunlight or freezing conditions.
• Storage Conditions: When storing the system for extended periods, it's recommended to maintain a charge level of around 50%.

The longevity of the battery will directly impact the overall value proposition of the system. Users should manage their usage habits to maximize battery lifespan.

Safety Features and Certifications

The Grid Doctor 300 typically incorporates several safety features:

• Overload Protection: Prevents damage to the inverter by shutting down the system when the power output exceeds its limit.
• Short Circuit Protection: Protects the system from damage caused by short circuits.
• Over Temperature Protection: Shuts down the system if the internal temperature gets too high.
• Low Voltage Protection: Prevents the battery from being over-discharged, which can damage it.

Verify that the system has relevant safety certifications, such as FCC, CE, or UL. These certifications indicate that the product meets certain safety standards.

Portability and Design

The Grid Doctor 300 is designed for portability. Its weight and dimensions should be taken into consideration. The build quality and materials used will influence its durability in outdoor conditions.

Consider features such as:

• Carry handle
• Durable casing
• Water resistance (if applicable)

Limitations and Considerations

While the Grid Doctor 300 offers a convenient power solution, it has limitations:

• Limited Power Output: 300 watts is not sufficient for running power-hungry appliances.
• Battery Capacity: 288 watt-hours provides a limited amount of energy storage.
• Charging Time: Solar charging can be slow depending on sunlight conditions.
• Cost: The initial cost may be higher compared to traditional generators.

Before purchasing, evaluate your power needs and determine if the Grid Doctor 300 meets those requirements. Compare its specifications and features with other portable power stations in the market.

Warranty and Customer Support

Check the warranty period and coverage offered by the manufacturer. A longer warranty period indicates greater confidence in the product's reliability. Inquire about the availability of customer support and technical assistance.

Key Takeaways

The Grid Doctor 300 solar generator system is a portable power source suitable for small electronic devices and appliances. Its key features include lithium-ion battery storage, MPPT solar charge controller, and AC/DC power outputs.

Key Considerations:

• Power Output: 300 watts limits appliance compatibility.
• Battery Capacity: 288 watt-hours provides limited runtime.
• Solar Panel Compatibility: Verify voltage and current requirements.
• Safety Features: Ensure the system has overload, short circuit, and over-temperature protection.
• Warranty: Check the warranty period and coverage.

By carefully evaluating these factors, potential buyers can determine if the Grid Doctor 300 is the right power solution for their needs.
