Chrysler 300 Parking Brake Adjustment: A Comprehensive Guide
The parking brake system in a Chrysler 300 is designed to securely hold the vehicle in place when parked, especially on inclines. Over time, the parking brake may require adjustment to maintain optimal performance. This document outlines the standardized procedure for adjusting the parking brake on Chrysler 300 models, focusing on verifiable methods and established repair protocols.
Understanding the System

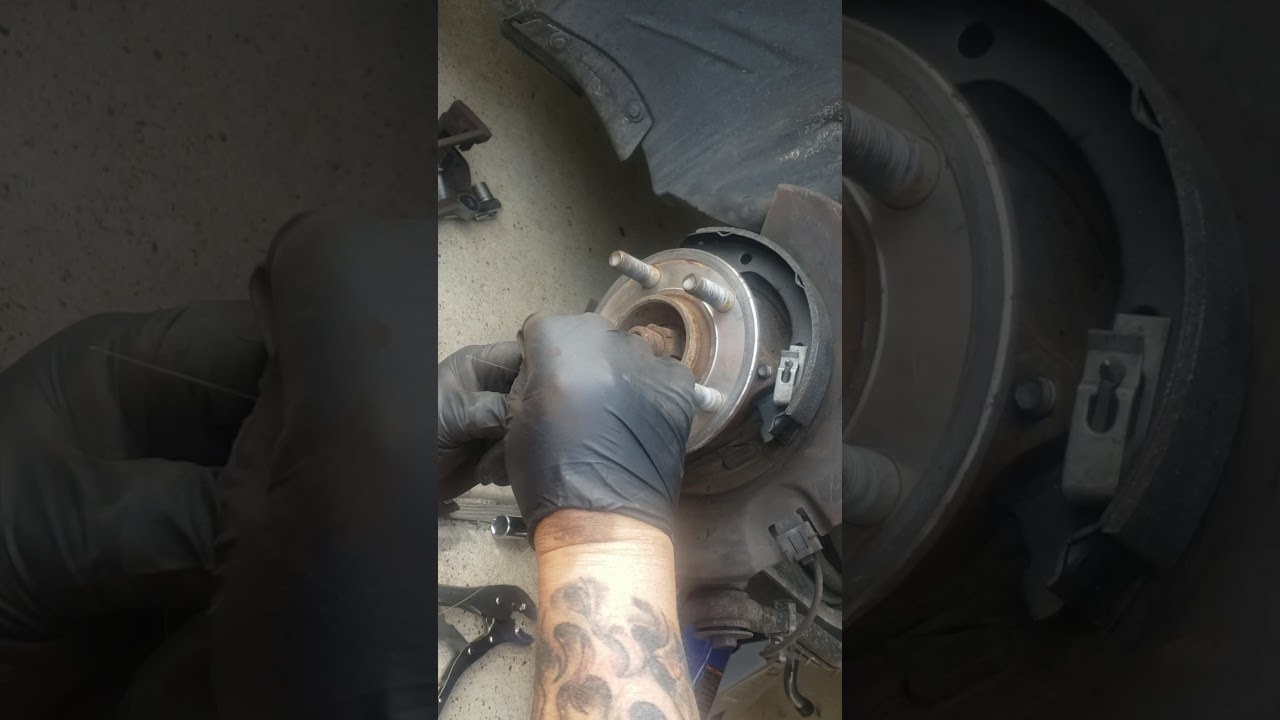

The Chrysler 300 typically utilizes a drum-in-hat parking brake system, where the parking brake shoes operate within the inner surface of the rear brake rotor. The system is mechanically actuated via cables connected to a foot-operated or hand-operated lever inside the vehicle. Proper cable tension and shoe-to-rotor contact are crucial for effective parking brake operation.
Variations exist based on the specific model year and trim level. Before commencing any adjustment procedure, consult the vehicle's service manual for model-specific instructions and torque specifications.
Must Read
Adjustment Procedure
The adjustment procedure generally involves several steps. It's crucial to follow these steps precisely to avoid damaging the system or compromising its effectiveness.
Preliminary Steps
Before initiating the adjustment, ensure the following:
- The vehicle is safely supported on jack stands.
- The rear wheels are removed.
- The parking brake lever is fully released.
- Visually inspect the parking brake cables for any signs of damage, corrosion, or fraying. Replace damaged cables before proceeding.
- Inspect the parking brake shoes for wear or contamination. Replace worn or contaminated shoes as needed.
- Verify that the parking brake lever operates smoothly without excessive resistance.
Initial Adjustment at the Rear Wheels
The primary adjustment point is usually located at each rear wheel, accessible through an access hole in the brake rotor.
- Locate the access hole on the inner surface of the brake rotor. You may need to rotate the rotor to align the hole with the star wheel adjuster.
- Using a specialized brake adjusting tool or a small flat-blade screwdriver, rotate the star wheel adjuster. The direction of rotation depends on the side of the vehicle. Typically, rotating the adjuster upwards expands the brake shoes, while rotating it downwards retracts them.
- Adjust the star wheel until the brake shoes make slight contact with the inner surface of the rotor. You should feel a slight drag when rotating the rotor by hand.
Avoid over-tightening the adjuster, as this can cause premature wear and reduced braking performance.
- Repeat the adjustment process on the opposite rear wheel.
Cable Adjustment (If Necessary)
If the initial adjustment at the rear wheels does not provide sufficient parking brake engagement, further adjustment may be required at the cable equalizer.
- Locate the parking brake cable equalizer, typically located under the vehicle near the center. Consult the service manual for the exact location.
- Loosen the jam nut on the cable adjuster.
- Adjust the cable tension by tightening or loosening the adjusting nut. Tightening the nut increases cable tension, while loosening it decreases tension.
Adjust the cable tension gradually, checking the parking brake engagement after each adjustment.
- Tighten the jam nut to secure the adjustment.
Final Testing and Verification
After completing the adjustment procedure, thoroughly test the parking brake to ensure proper function.
- With the vehicle on the ground, apply the parking brake lever. The lever should engage firmly without excessive travel.
- Attempt to move the vehicle forward and backward with the parking brake engaged. The parking brake should hold the vehicle securely.
- Release the parking brake lever. Verify that the rear wheels rotate freely without any dragging or binding.
- Perform a parking brake holding test on an incline. Ensure the parking brake can hold the vehicle securely on the incline.
- Re-check the cable tension and adjust if necessary.
Troubleshooting
If the parking brake fails to adjust properly, consider the following potential issues:
- Corroded or seized parking brake cables: Replace the cables.
- Worn or contaminated parking brake shoes: Replace the shoes.
- Damaged or seized star wheel adjuster: Replace the adjuster.
- Binding or sticking parking brake lever: Inspect and lubricate the lever mechanism.
Consult the vehicle’s service manual or a qualified mechanic for diagnosis and repair of more complex issues.
Tools and Materials Required
The following tools and materials are typically required for parking brake adjustment:
- Jack and jack stands
- Wheel chocks
- Wheel removal tools
- Brake adjusting tool or small flat-blade screwdriver
- Wrench set
- Torque wrench
- Penetrating oil
- Service manual for the specific vehicle model
- Safety glasses
- Gloves
Safety Precautions
Always observe the following safety precautions when working on the parking brake system:
- Support the vehicle securely on jack stands before working underneath.
- Chock the wheels to prevent accidental movement.
- Wear safety glasses to protect your eyes from debris.
- Disconnect the negative battery cable to prevent electrical shock.
- Consult the service manual for specific safety instructions and torque specifications.
Importance of Professional Assistance
While this guide provides a comprehensive overview of the parking brake adjustment procedure, it is essential to acknowledge the complexities involved. Improper adjustment can lead to reduced braking performance, premature wear, and potentially dangerous situations. If you lack the necessary experience or expertise, it is strongly recommended to seek assistance from a qualified mechanic. A professional mechanic possesses the knowledge, skills, and specialized tools to accurately diagnose and repair parking brake issues, ensuring the safety and reliability of your vehicle.
Ignoring a malfunctioning parking brake can lead to serious consequences, including vehicle rollaway and potential accidents. Regular inspection and maintenance are crucial for maintaining the integrity of the system. Early detection of problems allows for timely repairs, preventing more significant and costly issues down the road.
Key Takeaways
The Chrysler 300 parking brake requires periodic adjustment to maintain optimal function. The adjustment procedure involves adjusting the brake shoes at each rear wheel and, if necessary, adjusting the cable tension. Accurate adjustment is crucial for ensuring secure parking brake engagement and preventing potential safety hazards. Consult the vehicle's service manual for model-specific instructions and torque specifications. If you are not comfortable performing the adjustment yourself, seek assistance from a qualified mechanic. Regular inspection and maintenance are essential for maintaining the integrity of the parking brake system and ensuring the safety of your vehicle.
