Bunn Ultra 2 Torque Sensor Error

The Bunn Ultra 2 is a popular frozen drink machine often found in convenience stores, restaurants, and other establishments. A common issue that can arise with this machine is a "Torque Sensor Error." Understanding what this error means, its potential causes, and how to address it can save time and money by allowing for quick troubleshooting and resolution.

Understanding the Torque Sensor Error

A torque sensor, in the context of the Bunn Ultra 2, is a device that measures the twisting force applied to the motor shaft. The machine utilizes this measurement to regulate the freezing process and prevent damage to the motor and other internal components. The error arises when the sensor detects torque values that are outside of the acceptable range, indicating a problem with the system's ability to properly mix and freeze the product.

"The torque sensor is a crucial component in ensuring the longevity and efficient operation of the Bunn Ultra 2 machine."

When a torque sensor error occurs, the machine will typically display an error message on its control panel, and often cease operation to prevent further damage. This stoppage is a protective measure, indicating that the machine requires attention before being used again.

Potential Causes of the Torque Sensor Error

Several factors can trigger a torque sensor error on a Bunn Ultra 2 machine. These can be broadly categorized into mechanical issues, electrical problems, and issues related to the product being frozen.

Mechanical Issues

Mechanical problems are among the most common causes. These typically relate to the physical components that are responsible for mixing and dispensing the frozen product:

• Frozen Auger: The auger is the spiral-shaped component that mixes the product within the freezing cylinder. If the auger becomes frozen or obstructed, it will require significantly more torque to turn, triggering the error. This can happen if the product is freezing too rapidly or if there are chunks of ice present.
• Damaged Auger or Scraper Blades: Over time, the auger and scraper blades can become worn or damaged. Damaged blades increase the friction against the freezing cylinder's wall. This elevated friction results in an increased torque demand, leading to a sensor error.
• Bearing Issues: The auger shaft is supported by bearings that allow it to rotate smoothly. If these bearings become worn, damaged, or contaminated with frozen product, they will increase the resistance to rotation, thereby increasing the torque required.
• Drive Motor Issues: While less common, a failing drive motor can also cause a torque sensor error. If the motor is not providing sufficient power or is experiencing internal resistance, the torque sensor may detect this as an abnormal condition.

Example: Imagine trying to turn a rusted bolt with a wrench. The rust creates friction, making it harder to turn and requiring more force. Similarly, a frozen auger requires significantly more torque to rotate.

Electrical Problems

While mechanical issues are more prevalent, electrical problems can also contribute to the torque sensor error:

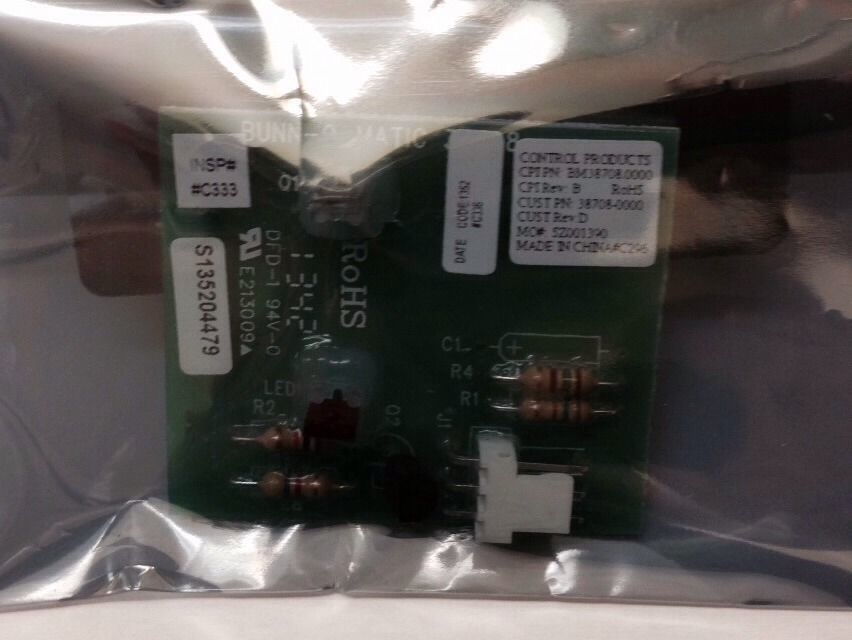

• Faulty Torque Sensor: The sensor itself could be malfunctioning, providing inaccurate readings to the machine's control system. This is especially likely if the sensor is old or has been exposed to excessive moisture or temperature variations.
• Wiring Issues: Damaged or loose wiring connecting the torque sensor to the control board can interrupt the signal and cause the error. This can be caused by physical damage or corrosion.
• Control Board Issues: In rare instances, the machine's control board itself could be faulty, misinterpreting the torque sensor readings or sending incorrect signals to the motor.

Product Related Issues

The nature of the product being frozen can also play a role:

• Incorrect Syrup Ratio: Using an incorrect syrup-to-water ratio can affect the freezing characteristics of the product. Too much syrup can cause the mixture to become overly viscous and difficult to freeze, increasing the torque required.
• Improper Product Temperature: Starting with a product that is too warm can also lead to issues. The machine has to work harder to cool the mixture down, increasing the risk of ice formation and auger freeze-up.
• Product Contamination: The introduction of foreign objects, such as ice chips, can obstruct the auger and trigger the error.

Troubleshooting Steps

When encountering a torque sensor error, the following steps can be taken to diagnose and resolve the issue:

1. Power Cycle the Machine: Start by turning the machine off and then back on. This simple step can sometimes clear the error if it was caused by a temporary glitch.
2. Inspect the Auger: Visually inspect the auger and freezing cylinder for any signs of ice buildup or obstructions. If ice is present, allow the machine to thaw completely before attempting to restart it.
3. Check the Auger and Scraper Blades: Examine the auger and scraper blades for any signs of wear or damage. Replace any worn or damaged components.
4. Inspect the Bearings: Ensure the auger bearings are properly lubricated and free from debris. Clean and lubricate or replace bearings as needed.
5. Verify Syrup Ratio: Check that the syrup-to-water ratio is correct according to the manufacturer's recommendations. Adjust as necessary.
6. Check Product Temperature: Ensure that the product being used is at the recommended starting temperature.
7. Inspect Wiring and Connections: Check the wiring and connections to the torque sensor and motor for any signs of damage or looseness. Repair or replace any damaged wiring.
8. Test the Torque Sensor: Use a multimeter to test the torque sensor's output signal. Compare the readings to the manufacturer's specifications to determine if the sensor is functioning correctly.

Example: Let’s say the machine displays the error frequently. The first step should be unplugging the machine for a moment and plugging it back in. If the error persists, the next step would be opening the machine and visually inspecting the auger for ice buildup. Finding the auger frozen requires thawing the machine completely before trying again. After thawing, you'd inspect the auger and scraper blades for damage.

Preventative Measures

To minimize the risk of torque sensor errors, it is essential to implement a regular maintenance schedule. This includes:

• Regular Cleaning: Clean the machine thoroughly on a regular basis, following the manufacturer's instructions. This will help prevent the buildup of ice and debris.
• Lubrication: Lubricate the auger bearings regularly to ensure smooth operation.
• Component Inspection: Regularly inspect the auger, scraper blades, and other components for wear or damage. Replace any worn or damaged parts promptly.
• Proper Product Handling: Follow the manufacturer's recommendations for product storage, preparation, and mixing.

Practical Advice and Insights

Understanding the torque sensor error in a Bunn Ultra 2 machine allows for proactive problem-solving and can save significant costs associated with service calls. By following a regular maintenance schedule and paying attention to the machine's operation, you can significantly reduce the likelihood of encountering this error.

In everyday life, the principles of troubleshooting this mechanical error can be applied to other situations. For instance, when a household appliance malfunctions, a structured approach, similar to the one described for the Bunn Ultra 2, can be used to identify and address the issue. This involves:

• Understanding the System: Knowing how the appliance is intended to work.
• Identifying Potential Causes: Listing possible reasons for the malfunction.
• Systematic Inspection: Checking the most common causes first.
• Seeking Professional Help: Knowing when to call a qualified technician.

By adopting this methodical approach, you can improve your problem-solving skills and become more self-sufficient in handling various challenges that may arise.
