55 Gallon Drum Maple Syrup Evaporator

Building a 55-gallon drum maple syrup evaporator is a cost-effective and relatively straightforward way to process larger quantities of maple sap into delicious syrup. Whether you're a hobbyist with a few tapped trees or aiming for a small-scale commercial operation, this guide provides practical steps to construct and use one effectively.

Planning and Preparation

Before diving in, you need to consider the size of your operation. How many trees are you tapping? How much sap are you realistically expecting to collect each day? A 55-gallon drum evaporator is suitable for processing a moderate amount of sap, generally enough for a few dozen taps. Overestimating sap quantity is better than underestimating. It will allow you to scale in the future without immediately requiring a completely new evaporator.

Next, gather your materials. Essential components include:

Must Read

A clean, food-grade 55-gallon steel drum (used cooking oil drums are often available and suitable after thorough cleaning).
Fire bricks for lining the firebox.
Steel for fabricating the firebox door and stack adapter.
Angle iron or steel tubing for constructing a support frame.
A welding machine and associated safety gear (if you intend to weld the components). Alternatively, consider bolted connections.
A thermometer for monitoring sap temperature.
A hydrometer for checking syrup density.
Various hand tools, including a grinder, drill, measuring tape, and level.

Safety should be your primary concern. Welding requires proper eye and respiratory protection. Handling heavy materials necessitates appropriate lifting techniques and footwear. Ensure your workspace is well-ventilated, and have a fire extinguisher readily accessible.

Construction

The construction process involves several key steps:

Building a Maple Syrup Evaporator Using A 55 Gallon Drum Stove Kit

Preparing the Drum

Thoroughly clean the 55-gallon drum. Use a power washer and a strong detergent to remove any residual oils or contaminants. Multiple washes and rinses are crucial. Once clean, cut a rectangular opening on one side of the drum near the bottom. This opening will serve as the firebox door.

Building the Firebox

The firebox is the heart of your evaporator. Line the bottom and sides of the drum below the firebox door with fire bricks. Use fire-resistant mortar to secure the bricks. Leave a space between the bricks and the drum for air circulation. The firebox should be large enough to accommodate a good-sized fire but not so large that it consumes excessive fuel. Aim for a firebox depth of approximately 12-18 inches. Construct a simple door from steel plate that fits the rectangular opening. Add hinges and a latch for secure closure. Consider adding a small vent or draft control to the door to regulate airflow.

Creating the Stack Adapter

On the top of the drum, cut a circular hole to accommodate a stovepipe or chimney stack. A 6-inch diameter stack is generally sufficient. Fabricate an adapter from steel plate to connect the drum to the stack. This adapter should be securely welded or bolted to the drum. The stack provides essential draft for efficient combustion and removes smoke away from the boiling sap.

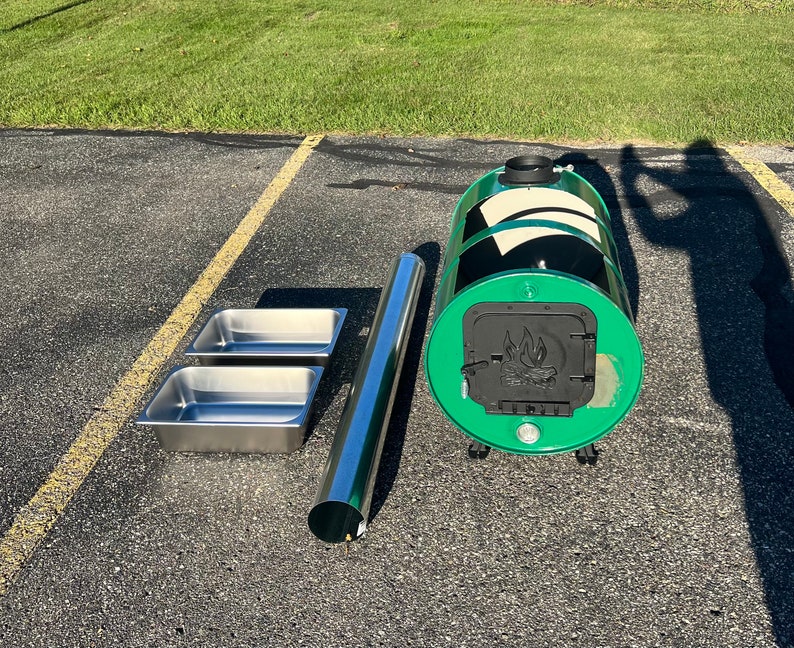

PREORDER - 55 Gallon Barrel Maple Syrup Evaporator Bassett Maple Co. - Etsy

Fabricating the Support Frame

Construct a sturdy frame from angle iron or steel tubing to support the drum. The frame should elevate the drum to a comfortable working height, typically around 30-36 inches. Ensure the frame is level and stable. Proper support is vital for safety and ease of use. Consider adding wheels to the frame for portability.

Adding Boiling Pans

Shallow, rectangular stainless steel pans are ideal for evaporating sap. Place these pans on top of the drum, ensuring they fit snugly and cover as much of the surface area as possible. Multiple smaller pans are often more efficient than a single large pan. Ensure the pans are food-grade stainless steel to avoid contamination of the syrup.

Operation and Use

Operating the evaporator requires careful monitoring and adjustment. Start by building a small fire in the firebox. Gradually increase the fire size as the sap in the pans begins to heat. Add sap to the pans as the water evaporates, maintaining a consistent level. Monitor the temperature of the sap using a thermometer. Aim for a temperature slightly below boiling point, typically around 217-218°F. Avoid scorching the sap, which can impart a burnt flavor to the syrup. As the sap concentrates, use a hydrometer to check the density. Syrup is finished when it reaches a density of 66-69° Brix. This typically corresponds to a boiling point of 219°F at sea level.

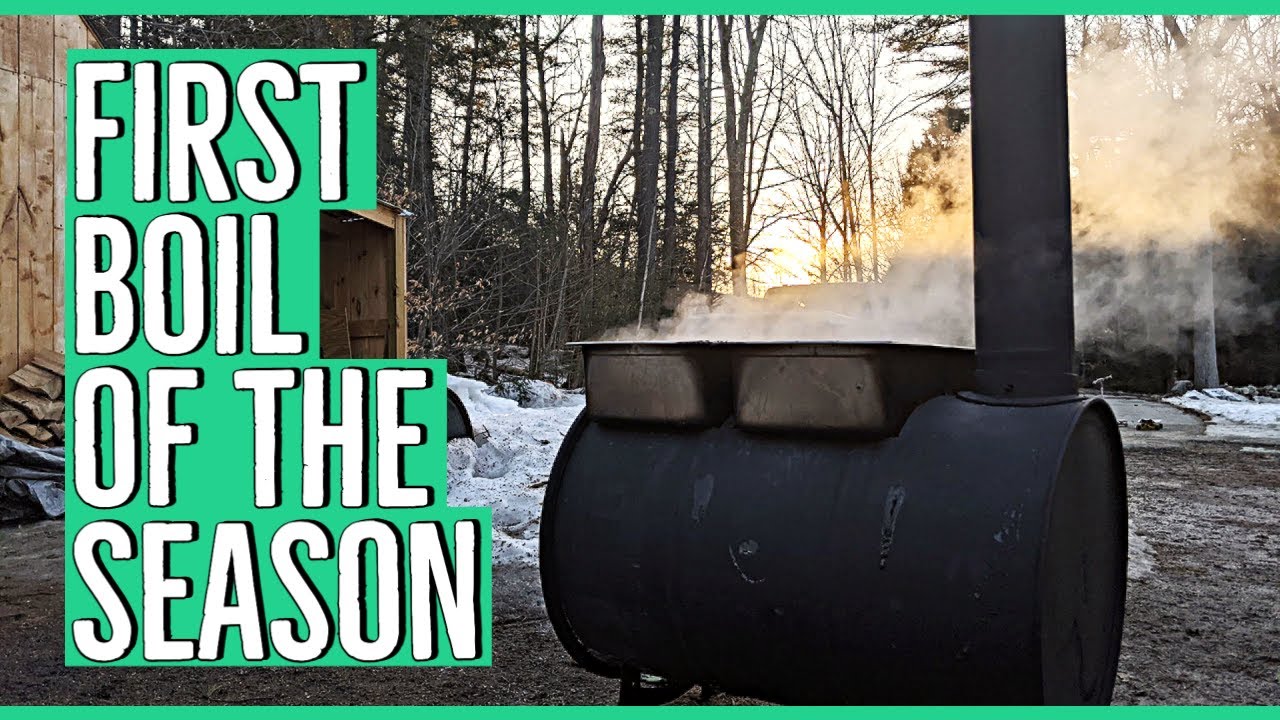

DIY Maple Syrup Evaporator ||Budget 55 Gallon Drum Sugaring Evaporator

Skim off any foam or impurities that rise to the surface of the sap. This helps to produce a clearer, higher-quality syrup. Continuously monitor the fire and adjust the airflow to maintain a consistent boil. Avoid overfilling the pans, which can cause boil-over and waste sap. Maintain a safe distance from the evaporator, especially when adding fuel or adjusting the fire. Wear appropriate heat-resistant gloves and eye protection. After each use, clean the pans and evaporator to prevent buildup of scale and contaminants.

Troubleshooting

Several common issues can arise during operation:

Slow evaporation rate: Insufficient fire size, poor draft, or insufficient pan surface area can all contribute to a slow evaporation rate.
Burnt syrup: Overheating the sap or allowing it to boil dry can result in burnt syrup.
Cloudy syrup: Impurities in the sap or improper skimming can cause cloudy syrup.
Inconsistent density: Variations in fire intensity or sap quality can lead to inconsistent density.

To address these issues, adjust the fire size, improve draft, skim the sap more frequently, or monitor the density more closely. Experiment with different fuel types and airflow settings to optimize the evaporation process. Thorough cleaning of the equipment is important. Filtration of the sap can improve the clarity of the syrup.

Wood fired sap stove evaporator from 55 gal drum and SS steam table

Applying the Knowledge

The principles of evaporator construction and operation extend beyond maple syrup production. The concepts of heat transfer, combustion, and fluid dynamics are applicable in various fields, including:

Small-scale food processing: Designing and building evaporators for other food products, such as fruit preserves or sauces.
Water purification: Constructing solar stills or small-scale distillation systems for water purification in remote areas.
Heating systems: Understanding the principles of combustion and heat transfer for designing efficient wood-burning stoves or furnaces.
DIY projects: Applying fabrication skills and problem-solving techniques to a wide range of DIY projects.

By understanding the underlying principles and gaining practical experience, you can adapt the knowledge and skills acquired in building and operating a 55-gallon drum evaporator to a variety of other applications.

Checklist/Guideline

Planning: Estimate sap quantity, gather materials, prioritize safety.
Construction: Prepare the drum, build the firebox, create the stack adapter, fabricate the support frame, add boiling pans.
Operation: Build a fire, add sap, monitor temperature, check density, skim impurities.
Troubleshooting: Identify and address common issues such as slow evaporation, burnt syrup, or inconsistent density.
Maintenance: Clean the pans and evaporator after each use to prevent buildup of scale and contaminants.
