2012 Kia Soul Alternator Replacement

This article provides a practical overview of replacing the alternator in a 2012 Kia Soul. It focuses on verified procedures and essential considerations for a successful replacement. The information is intended for technicians and experienced DIYers.

Identifying Alternator Failure in a 2012 Kia Soul

Diagnosing alternator failure requires a systematic approach. Common indicators include:

• Dimming Headlights: Reduced electrical output can manifest as noticeably dimmer headlights, especially at idle.
• Warning Light Illumination: The battery warning light on the dashboard is a primary signal of charging system malfunction.
• Starting Problems: A failing alternator may not adequately recharge the battery, leading to difficulty starting the engine.
• Electrical System Issues: Erratic behavior in other electrical components, such as the radio or power windows, can point to an alternator problem.
• Audible Noises: Unusual noises, such as whining or grinding, emanating from the alternator area may indicate bearing or internal component failure.

Prior to replacement, confirm the alternator's failure with a multimeter. Measure the battery voltage with the engine off and then with the engine running. A properly functioning alternator should produce a voltage significantly higher than the battery's resting voltage (typically between 13.5 and 14.5 volts). Also, check the belt condition and tension to ensure it is not slipping.

Essential Tools and Materials

Before beginning the replacement process, gather the necessary tools and materials:

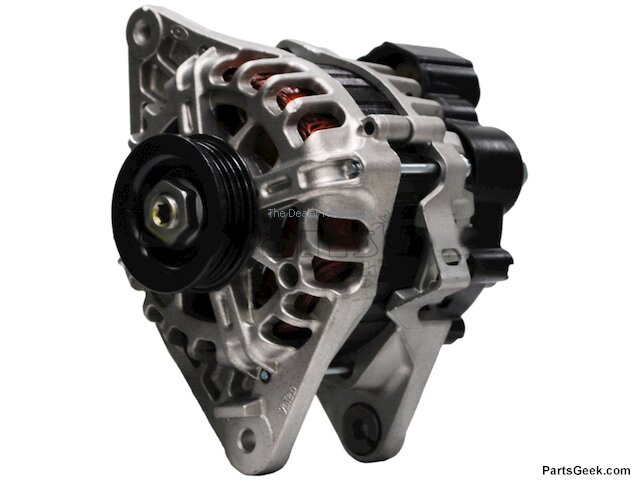

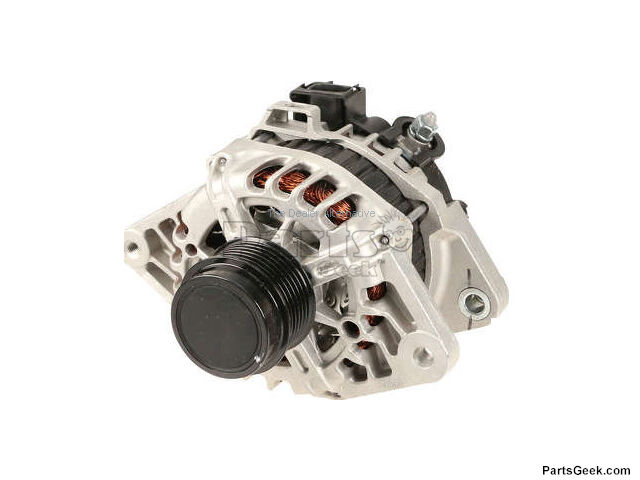

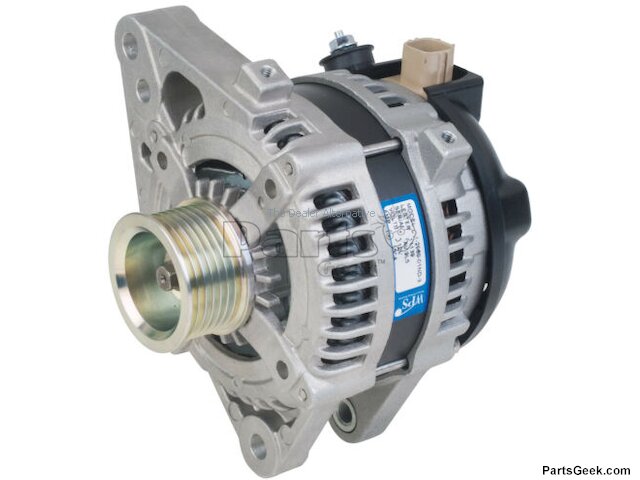

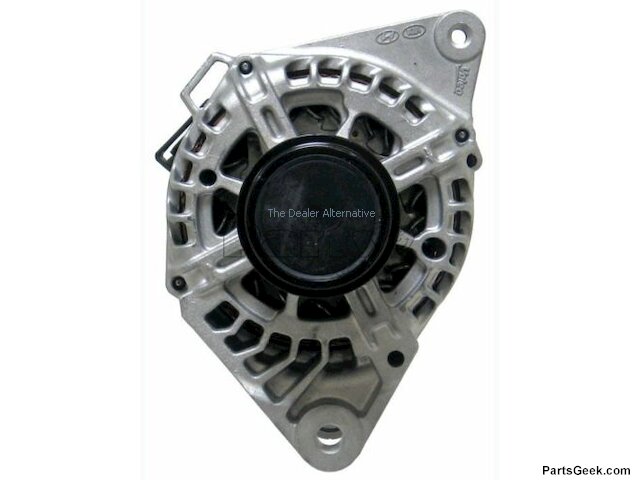

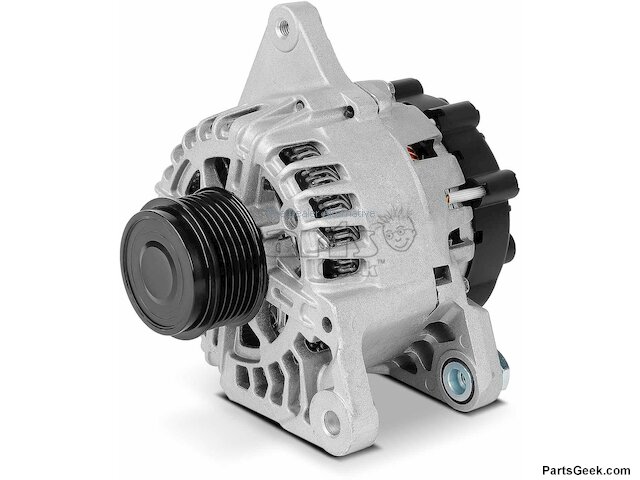

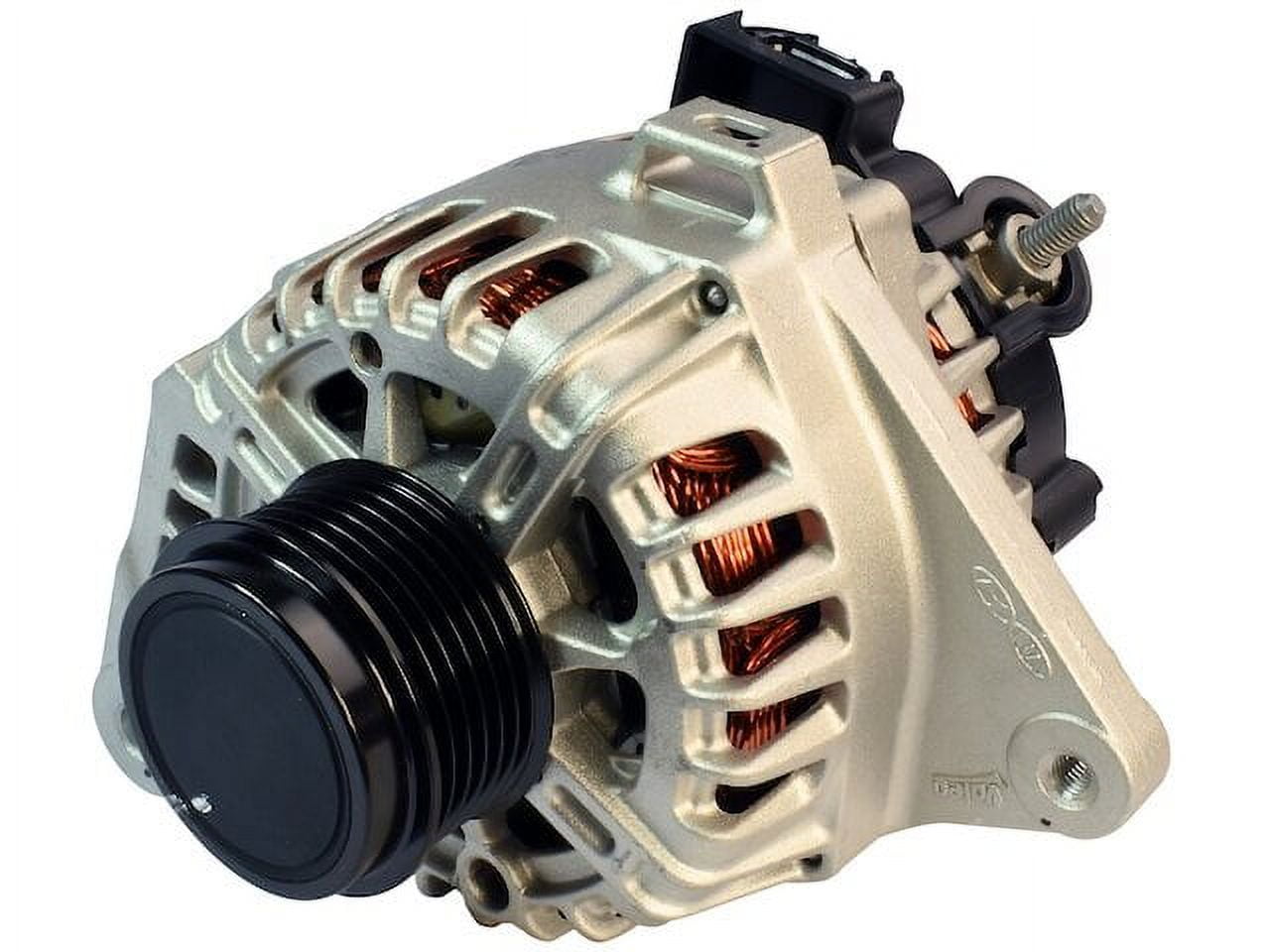

• New Alternator: Ensure the replacement alternator is compatible with the 2012 Kia Soul's specifications. Consider the amperage rating and mounting configuration.
• Socket Set: A comprehensive socket set, including metric sizes, is essential.
• Wrench Set: Wrenches may be needed for accessing certain bolts and nuts.
• Screwdrivers: Both Phillips head and flathead screwdrivers might be required.
• Multimeter: For confirming the failure of the old alternator and verifying the performance of the new one.
• Battery Terminal Cleaner: To clean battery terminals and ensure a good connection.
• Protective Gear: Safety glasses and gloves are crucial for personal protection.
• Torque Wrench: For tightening bolts to the manufacturer's specified torque.
• Penetrating Oil: Can be helpful for loosening stubborn bolts.
• Replacement Belt (Optional): Consider replacing the serpentine belt if it is worn or cracked.

Step-by-Step Alternator Replacement Procedure

1. Disconnect the Battery

Safety First: Disconnect the negative battery cable before starting any work on the electrical system. This prevents accidental shorts and potential damage. Use a wrench to loosen the nut securing the cable to the negative battery terminal and carefully remove the cable. Secure it away from the terminal to prevent accidental contact.

2. Locate the Alternator

The alternator is typically located on the front of the engine, driven by the serpentine belt. Refer to a repair manual or online diagrams for the precise location in the 2012 Kia Soul. Note the routing of the serpentine belt before proceeding.

3. Remove the Serpentine Belt

Use a wrench or socket to release the tension on the serpentine belt tensioner. This will allow you to slip the belt off the alternator pulley. Note the belt's routing for reinstallation. A diagram or photograph can be helpful.

4. Disconnect Electrical Connections

Carefully disconnect the electrical connectors attached to the alternator. There will typically be a large B+ (battery positive) terminal and a smaller connector for the voltage regulator. Note the location of each connector before disconnecting them. Use a small screwdriver to release any retaining clips.

5. Remove the Alternator Mounting Bolts

Locate and remove the bolts that secure the alternator to the engine bracket. These bolts can be tight, so penetrating oil may be necessary. Use the appropriate size socket or wrench. Support the alternator as you remove the last bolt to prevent it from falling.

6. Remove the Alternator

Carefully maneuver the alternator out of the engine compartment. This may require some patience and wiggling to clear other components. Note the orientation of the alternator as you remove it.

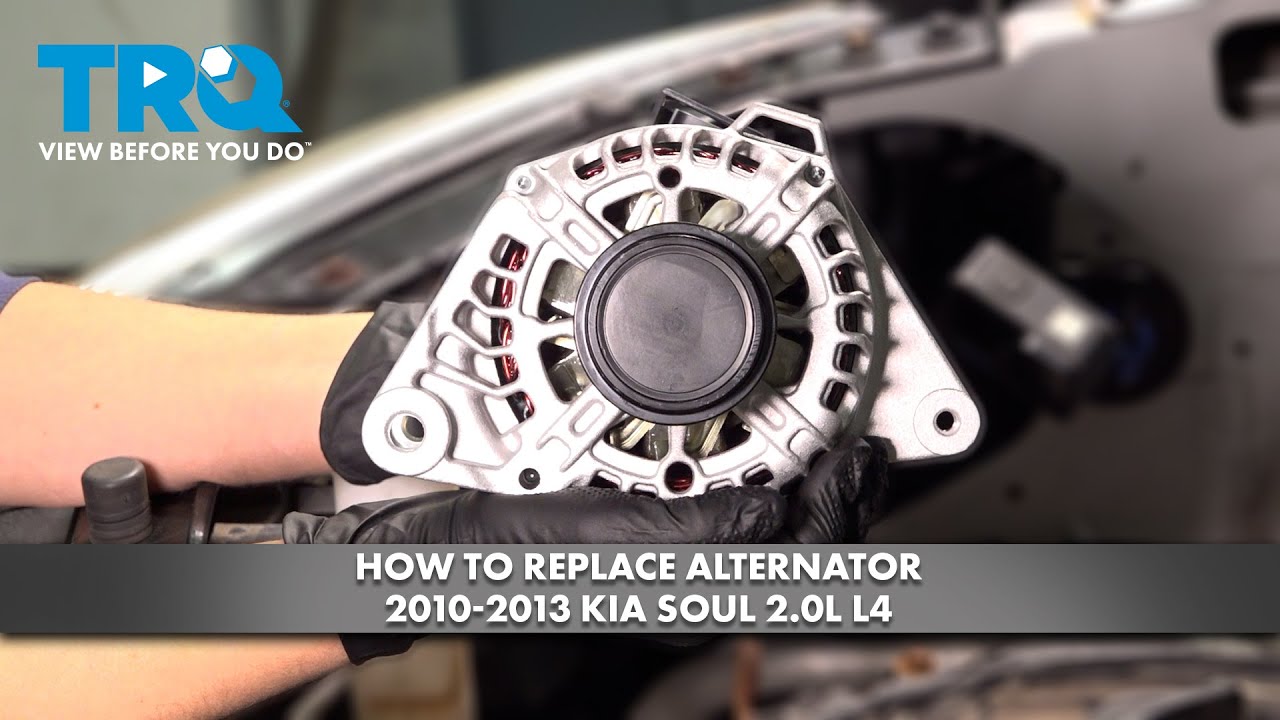

7. Install the New Alternator

Position the new alternator in the engine compartment and align it with the mounting bracket. Install the mounting bolts and tighten them to the manufacturer's specified torque. Use a torque wrench to ensure proper tightness.

8. Reconnect Electrical Connections

Reconnect the electrical connectors to the alternator. Ensure they are securely attached and that any retaining clips are engaged. Double-check that you have connected the correct wires to the correct terminals.

9. Reinstall the Serpentine Belt

Route the serpentine belt around the alternator pulley and all other pulleys according to the routing diagram. Use a wrench or socket to release the tension on the belt tensioner and slip the belt into place. Verify that the belt is properly seated in all the pulley grooves.

10. Reconnect the Battery

Reconnect the negative battery cable to the negative battery terminal. Tighten the nut securely. Clean the battery terminals with a battery terminal cleaner to ensure a good connection.

11. Start the Engine and Test

Start the engine and check the charging system voltage with a multimeter. The voltage should be between 13.5 and 14.5 volts with the engine running. Verify that the battery warning light on the dashboard is off. Check for any unusual noises from the alternator area.

Post-Installation Checks

After completing the alternator replacement, perform the following checks:

• Voltage Check: Verify the charging voltage at the battery terminals with the engine running.
• Belt Tension Check: Ensure the serpentine belt has the correct tension and is properly aligned on all pulleys.
• Visual Inspection: Inspect all connections and components for any signs of leaks, damage, or loose connections.
• Road Test: Conduct a short road test to ensure the electrical system is functioning properly under various driving conditions.

Potential Issues and Troubleshooting

Even with careful execution, potential issues can arise during or after alternator replacement:

• Incorrect Alternator: Ensure the replacement alternator is the correct part number and amperage rating for the 2012 Kia Soul.
• Loose Connections: Double-check all electrical connections to ensure they are tight and secure.
• Faulty Belt Tensioner: A worn or faulty belt tensioner can prevent the serpentine belt from maintaining proper tension, leading to alternator performance issues.
• Battery Problems: A weak or damaged battery can mask alternator problems. Test the battery's condition before and after alternator replacement.

Important Note: If the battery warning light remains illuminated after alternator replacement, or if you experience any other charging system problems, consult a qualified technician for further diagnosis and repair.

Conclusion

Replacing the alternator in a 2012 Kia Soul is a manageable task for experienced technicians and DIYers. By following a systematic approach, using the correct tools and materials, and performing thorough post-installation checks, you can ensure a successful and reliable repair.

Key Takeaways:

• Accurate diagnosis is critical before replacing the alternator.
• Use the correct replacement alternator for the 2012 Kia Soul.
• Disconnect the battery before starting any work on the electrical system.
• Tighten all bolts and connections to the manufacturer's specifications.
• Verify the charging system voltage after installation.
