1994 Ford Ranger Clutch Replacement
The 1994 Ford Ranger, a popular compact pickup truck, often requires a clutch replacement as part of its routine maintenance. Replacing a clutch involves several steps, requiring mechanical knowledge and the appropriate tools. This article provides a guide to the process.
Preparation and Safety Precautions

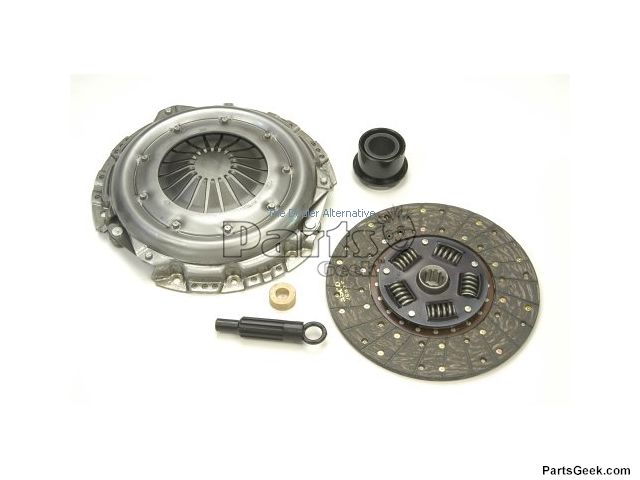

Before commencing any work, gather all necessary tools and materials. This typically includes a new clutch kit (containing the clutch disc, pressure plate, and release bearing), a pilot bearing or bushing, alignment tool, sockets, wrenches, jacks, jack stands, penetrating oil, and potentially specialized tools like a transmission jack. Eye protection and gloves are essential safety items.
Begin by disconnecting the negative battery cable to prevent electrical shorts. Loosen the lug nuts on the rear wheels. Then, raise the vehicle using a jack and securely support it with jack stands. Ensure the vehicle is stable before proceeding under it. Apply the parking brake. Disconnecting the negative battery cable also ensures that no electrical components are active during the process.
Must Read
Removing the Driveshaft
The driveshaft connects the transmission to the rear axle. Disconnect it to allow the transmission to be removed. Mark the driveshaft and rear axle flange for reinstallation alignment. This ensures that the driveshaft is reinstalled in the same orientation to maintain balance and prevent vibration.
Unbolt the driveshaft from the rear axle flange. Use penetrating oil if the bolts are corroded. Once the bolts are removed, carefully slide the driveshaft out of the transmission. Be prepared for a small amount of transmission fluid to leak out. Plug the transmission opening to prevent further leakage.
Disconnecting the Shifter and Wiring
Inside the cab, remove the shift knob and boot surrounding the shifter. Depending on the model, you might need to remove the center console to access the shifter mechanism fully. Disconnect the shifter linkage from the transmission. This usually involves removing pins or bolts connecting the shifter to the transmission.
Underneath the vehicle, disconnect any wiring harnesses connected to the transmission, such as those for the reverse lights or any sensors. Carefully detach these connectors to avoid damaging the wiring. Route the wiring away from the transmission to prevent it from getting caught during removal.
Removing the Exhaust System and Crossmember
The exhaust system may need to be partially or fully removed to provide clearance for the transmission removal. Loosen and remove the exhaust components as necessary, paying attention to any gaskets or seals that need replacement.
Support the transmission with a jack. Remove the crossmember that supports the transmission. This crossmember is usually bolted to the frame. Once the crossmember is removed, carefully lower the transmission slightly using the jack to provide better access to the bellhousing bolts.
Removing the Transmission
Support the engine with an engine support bar or jack to prevent it from tilting when the transmission is removed. Remove the bellhousing bolts connecting the transmission to the engine. These bolts can be difficult to reach, so use extensions and universal joints as needed.
Carefully slide the transmission rearward, away from the engine. Use a transmission jack to control the weight and prevent damage. Once the transmission is clear of the engine, lower it to the ground.
Inspecting and Replacing the Clutch Components
With the transmission removed, the clutch assembly is now accessible. Inspect the flywheel for wear, cracks, or heat damage. If necessary, resurface or replace the flywheel. A smooth, clean flywheel surface is essential for proper clutch engagement.
Remove the pressure plate bolts in a star pattern to prevent warping the pressure plate. Once the bolts are removed, carefully remove the pressure plate and clutch disc. Examine the clutch disc for wear, oil contamination, or broken springs. Replace the clutch disc if any of these conditions are present.
Remove the release bearing and pilot bearing or bushing. The pilot bearing or bushing may require a special tool for removal. Install the new pilot bearing or bushing, and lubricate it with grease. Install the new release bearing on the transmission input shaft.
Installing the New Clutch
Install the new clutch disc, ensuring it is facing the correct direction. Use the alignment tool to center the clutch disc. Install the new pressure plate and tighten the bolts in a star pattern to the manufacturer's specified torque. Remove the alignment tool after tightening the pressure plate bolts.
Reinstalling the Transmission
Carefully lift the transmission back into position using the transmission jack. Align the transmission input shaft with the clutch disc and pilot bearing. It may be necessary to rotate the engine slightly to align the splines.
Once the transmission is aligned, slide it forward until it is fully seated against the engine. Install the bellhousing bolts and tighten them to the specified torque. Reinstall the crossmember and exhaust system. Connect the wiring harnesses and shifter linkage. Reinstall the driveshaft, aligning the marks made during removal. Lower the vehicle and tighten the lug nuts.
Final Steps
Fill the transmission with the correct type and amount of fluid. Connect the negative battery cable. Start the engine and test the clutch operation. Check for any leaks or unusual noises. Adjust the shifter linkage if necessary.
Perform a test drive to ensure the clutch is functioning properly. Monitor the clutch engagement, shifting, and overall performance of the transmission. Address any issues that arise during the test drive.
Bleeding the Clutch (If Applicable)
Some 1994 Ford Rangers are equipped with a hydraulic clutch system. Bleeding the clutch is necessary to remove air from the system and ensure proper clutch operation. Locate the bleeder screw on the clutch slave cylinder. Open the bleeder screw and have an assistant depress the clutch pedal. Close the bleeder screw before releasing the clutch pedal. Repeat this process until no air bubbles are present in the fluid.
Check the clutch master cylinder fluid level and top it off as needed. Test the clutch operation again after bleeding the system.
Why Clutch Replacement Matters
The clutch is a critical component of a manual transmission vehicle. A worn or damaged clutch can cause slipping, difficulty shifting, and ultimately, complete failure of the transmission system. Replacing the clutch when necessary ensures smooth and reliable operation of the vehicle, preventing more costly repairs down the road. Proper clutch function is essential for safe and efficient driving, allowing the driver to control the vehicle's speed and acceleration effectively. Neglecting clutch maintenance can lead to dangerous situations, such as being unable to accelerate quickly in traffic or losing control of the vehicle on hills. Therefore, understanding the process of clutch replacement and performing it correctly is crucial for maintaining the performance and safety of a 1994 Ford Ranger.
